D-Link DWR-932 User Manual

27D-Link DWR-932 User Manual
Section 3 - Conguration
ID number assigned to each available PLMN.
Check the box to select your desired network.
The network’s current status.
The name of the cellular network.
Allows you to see what the cellular network’s access
technology is.
Click Apply to save changes.
ID
Use it
Status
Operator Name
Access Technology

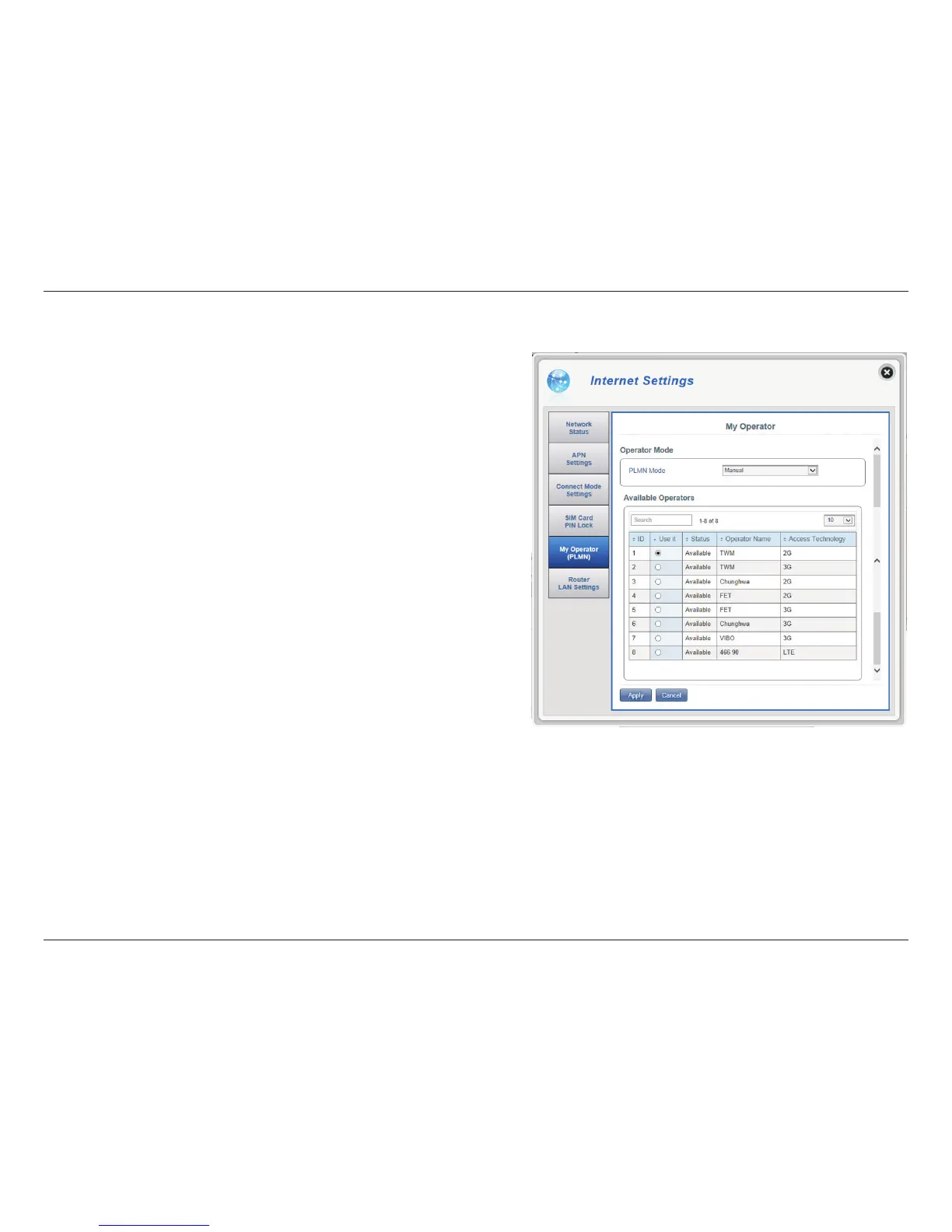

If you selected Manual Mode:
Click on your preferred network to select it, or type in the Search box to nd your
desired network.
Note: You will need to manually disconnect from the current
mobile data service before selecting a network using PLMN.
Available Operators

D-Link DWR-932 Specifications

Radio Frequency Bands

FDD-LTE bands	Band 1, 3, 7, 8, 20
TDD-LTE band	38
UMTS bands	B1-2100 MHz / B8-900 MHz

Cellular Access

GSM bands	850/900/1800/1900 MHz
LTE output power class	23 dBm (class3)
Downlink speed	100 Mbps

Wi-Fi Specifications

Wi-Fi standard 1	802.11n
Wi-Fi standard 2	802.11g
Wi-Fi standard 3	802.11b

Physical Specifications

Dimensions	96.8 x 57.6 x 15 mm (3.81 x 2.26 x 0.59 inches)
Weight	90 g (3.17 ounces)
Antenna	One internal antenna

Operating Environment

Operating temperature	0 to 40 °C (14 to 131 °F)
USB interface	micro USB port
USIM slot	Standard 6-pin SIM card interface
