D-Link DWR-932 User Manual

34D-Link DWR-932 User Manual
Section 3 - Conguration

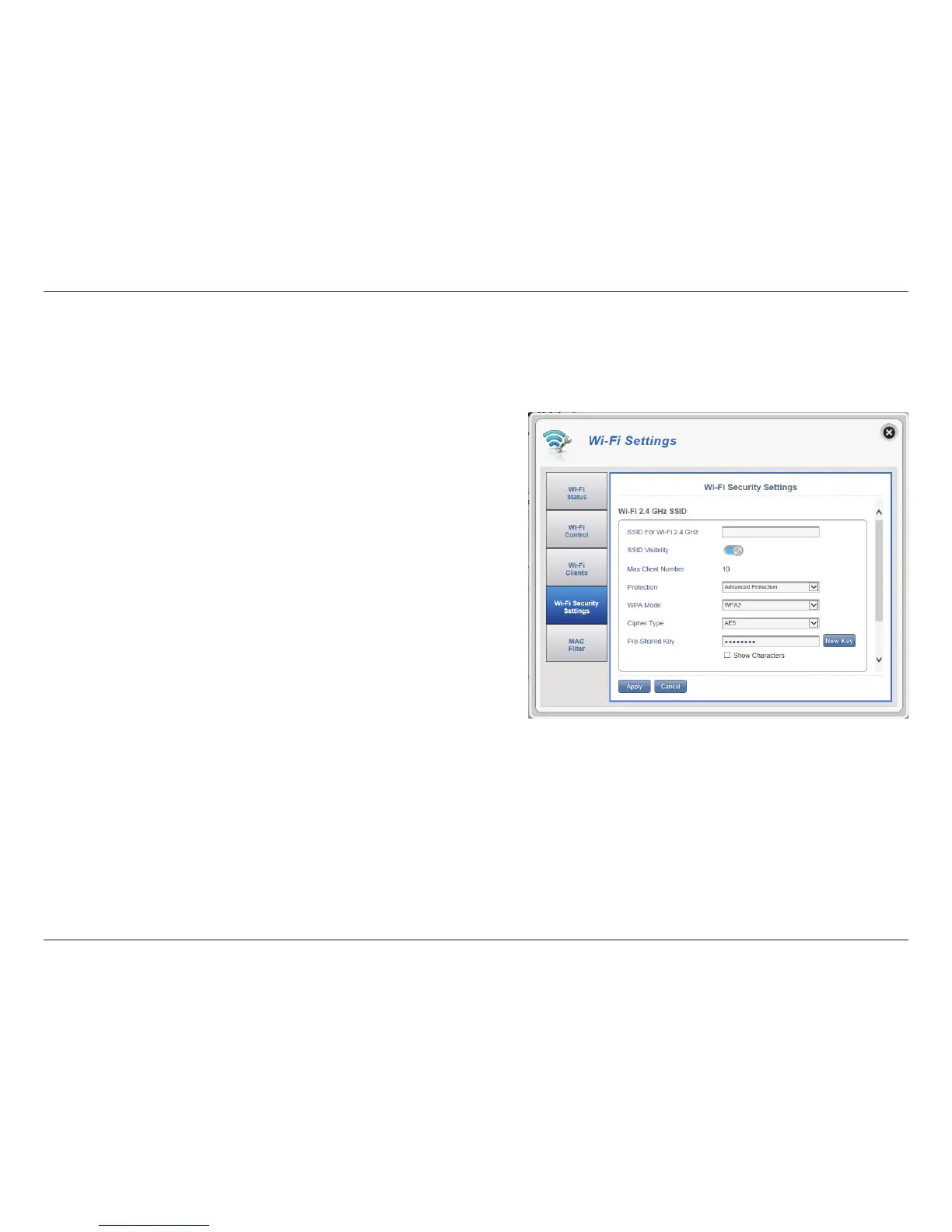

Wi-Fi Security Settings
In this page you can view your Wi-Fi security settings, here you can alter things like your SSID name, SSID visibility and access Wi-Fi security features.
Displays the name of your Wi-Fi network. Click in the
box to edit.
Click the toggle to change your SSID visibility to
clients.
The maximum amount of clients allowed on your
network.
By default advanced protection is selected. You
may also select between basic protection or no
protection.
Auto (WPA or WPA2) - The router will automatically
determine the version of WPA to be used based on
the client that is connecting to it.
WPA2 - Clients will only be able to associate with
the router using the WPA2 standard. Clients which
do not support WPA2 will not be able to associate
with the router.
AES - A newer cipher used by the WPA2 standard.
Use of this cipher type is required in order to
achieve 802.11 speeds.
SSID For Wi-Fi 2.4 GHz
SSID Visibility
Max Client Number
Protection
WPA Mode
Cipher Type
Wi-Fi 2.4 GHz SSID
dlink_DWR-932_xxxx

D-Link DWR-932 Specifications

Radio Frequency Bands

FDD-LTE bands	Band 1, 3, 7, 8, 20
TDD-LTE band	38
UMTS bands	B1-2100 MHz / B8-900 MHz

Cellular Access

GSM bands	850/900/1800/1900 MHz
LTE output power class	23 dBm (class3)
Downlink speed	100 Mbps

Wi-Fi Specifications

Wi-Fi standard 1	802.11n
Wi-Fi standard 2	802.11g
Wi-Fi standard 3	802.11b

Physical Specifications

Dimensions	96.8 x 57.6 x 15 mm (3.81 x 2.26 x 0.59 inches)
Weight	90 g (3.17 ounces)
Antenna	One internal antenna

Operating Environment

Operating temperature	0 to 40 °C (14 to 131 °F)
USB interface	micro USB port
USIM slot	Standard 6-pin SIM card interface
