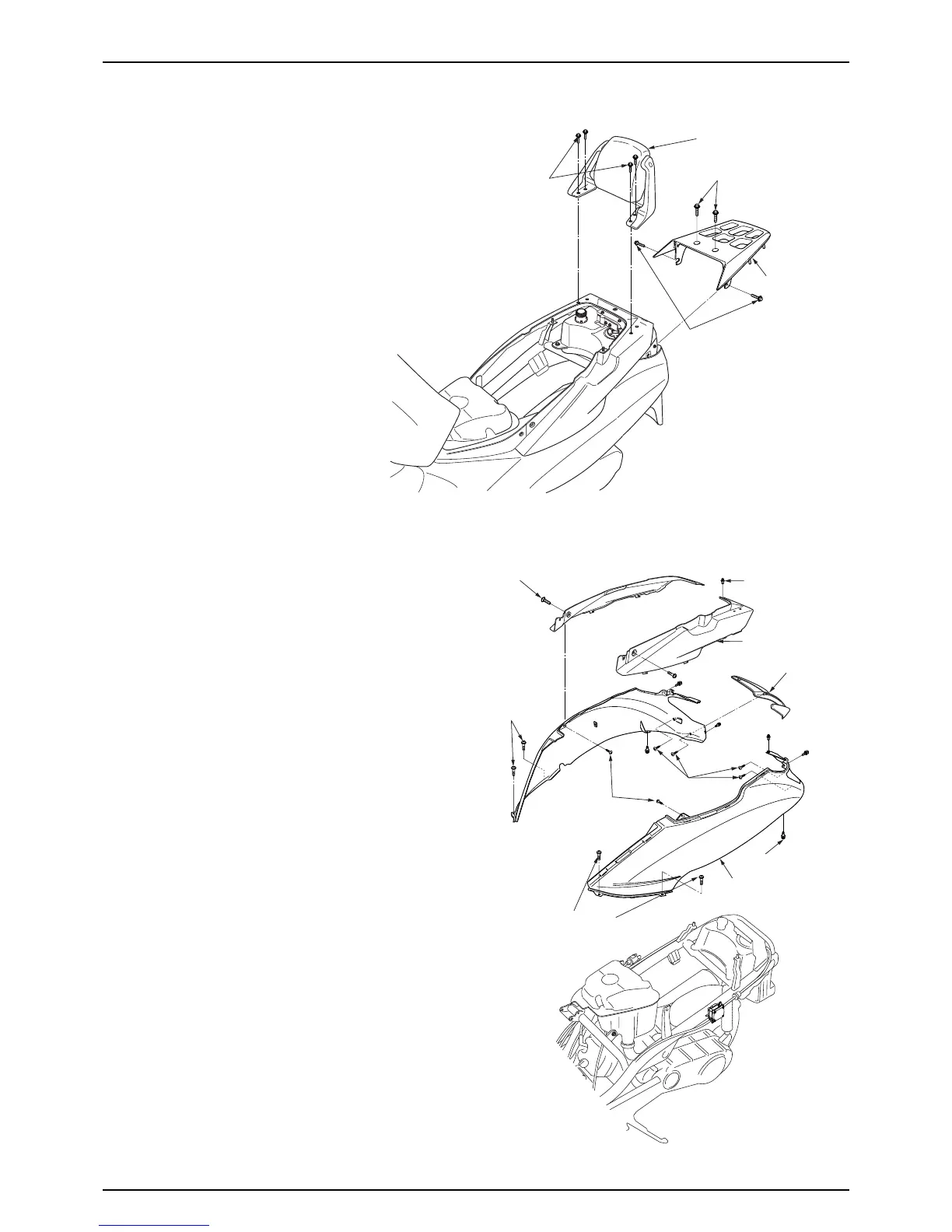

REAR CARRIER/BACK REST
● Remove the rear center cover. (⇨4-5)
● Loosen the 2 flange bolts(R/L) securing the frame.
● Loosen the 2 flange bolts(R/L) securing the rear carrier.
● Remove the rear carrier.
● Loosen the 4 back rest setting special bolts(R/L),
Remove the back rest.
● Install in the reverse order of removal.
BODY COVER/UPPER BODY COVER
● Release the seat lock by turning the main switch
key to open the seat.
● Remove the following parts.
-Luggage box (⇨4-4)
-Center cover (⇨4-5)
-Rear center cover (⇨4-5)
-Rear carrier (⇨4-6)
-Back rest (⇨4-6)
● Loosen the 4 special screw (R/L) securing the floor
panel.
● Loosen the 2 special screw (R/L) securing the
frame, disconnect the rear combination light wiring.
● Loosen the 2 body cover clips (R/L) securing the
rear fender.
● Draw the upper part of the body cover to remove it.
● Loosen the 2 washer screws securing the body
cover, remove the rear combination light.
● Loosen the 4 tapping screws securing the body
cover, remove the rear reflector.
● Loosen the 2 tapping screws (R/L) and 2 body
cover clips securing the body cover, remove the
upper body cover.
● Loosen the 2 body cover clips (R/L) securing the
body cover, remove the RH./LH. body cover.
● Install in the reverse order of removal.
