Daewoo DSB-071AH User Manual

37

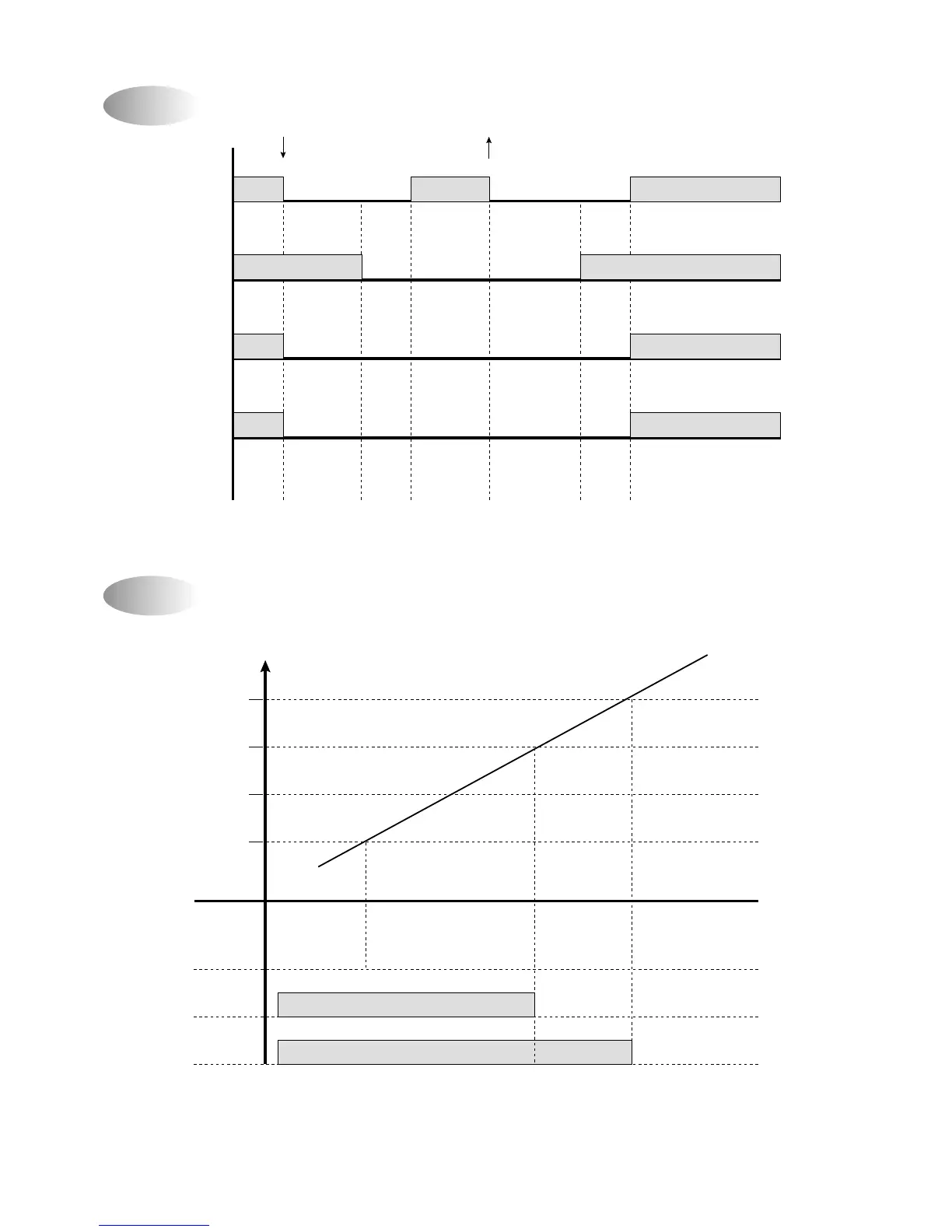

Defrost Function Chart for Outdoor Condenser
Max Load Heating Operation Diagram
• Note1 : 120sec for 24kBtu Model
• Note2 : The Temperature is over 120°C or 15 minute later.
• Note1 : 30s ON. 120s OFF when the Compressor is OFF.
• Note2 : The Fan is ON when the temperature is below 49°C.
• Note3 : The Temperature is over 60°C and 1 minute later.
Comp
Start
4 Way
OD Fan
ID Fan
40sec
*Note1
15min
*Note2
6sec 6sec40sec
Return
60°C
Temperature (Indoor Evaporator)
57°C
49°C
38°C
ID FAN
* Note1
Monitoring
"Ultra Low"
Set Value
"Hi, Mid, Low" "Hi" "Hi"
OD FAN OFF *Note2
OFF *Note3
COMP

Daewoo DSB-071AH Specifications

General

Type	Split System
Refrigerant	R410A
Power Supply	220-240V, 50Hz
Air Flow (High)	380 m³/h
Noise Level (Indoor)	38 dB(A)
Cooling Capacity	7000 BTU/h
Power Consumption (Cooling)	650W
Net Weight	8 Kg

Summary

Product Specifications

Model-Specific Technical Data

Detailed technical specifications for various Daewoo air conditioner models, covering electrical and physical data.
