-29-

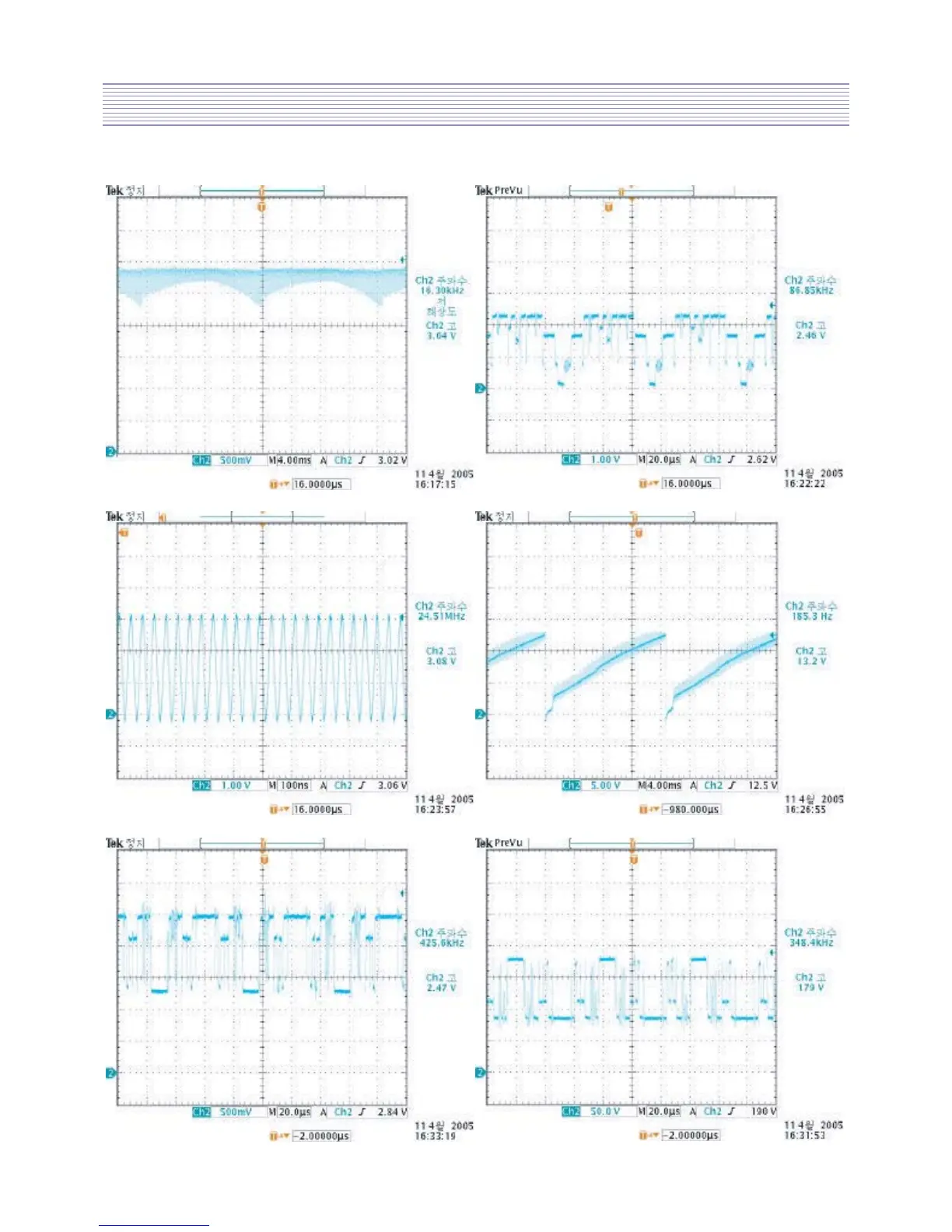

WAVEFORMS
Appendix
7).I701 PIN75 EW OUT 8).I701 PIN46 MONITOR OUT
9).I701 (X-TAL) 10).I301 PIN4 V.OUT
11).I901 PIN R.IN 12).I901 PIN R.OUT
