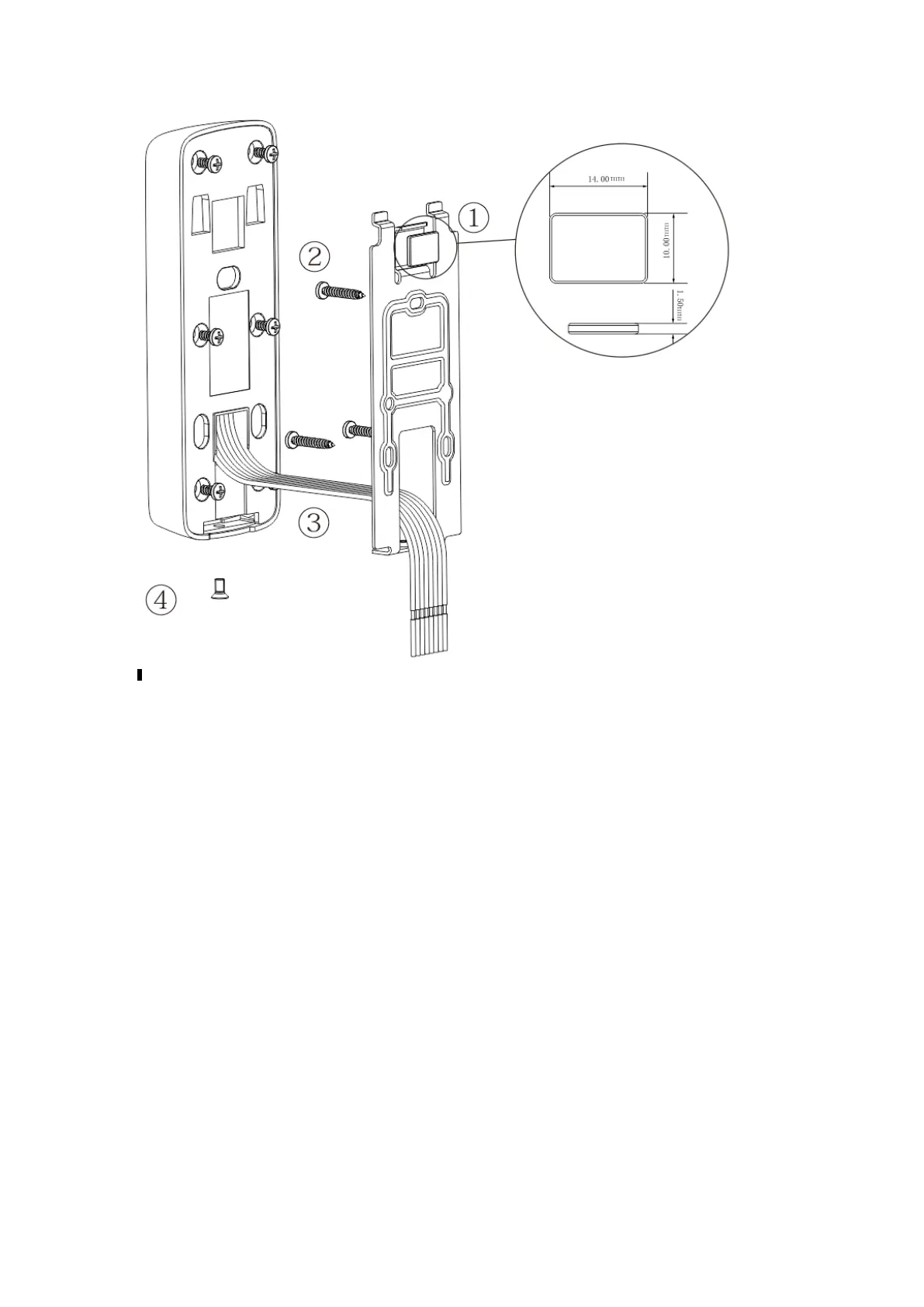

Installation steps:
Step 1. Install magnet at the position you want to in fix installation bracket.
Step 2. Fix installation bracket on wall with ST3*18 self tapping screw.
Step 3. Pull 8-pin wire of the device through bracket as shown in figure above.
Step 4. Hang the device on bracket, pull 8-pin wire straight, and fix bottom with M3*6
screw.
