Daikin Magnitude WME Series User Manual

IOM 1266-2 • MAGNITUDE
®
MODEL WME CHILLERS 10 www.DaikinApplied.com
InsTallaTIon
5. Dimensions shown are for units (evaporator/condenser)
with standard design pressures. The waterside design
pressure is 150 psi (1034 kPa). Consult the factory for
unit dimensions with higher design pressures.
6. Unit vibration isolator pads are provided for eld
installation and when fully loaded are 0.25 inches
(6 mm) thick.
7. 3.25-inch (83 mm) diameter lifting holes are provided.
See Figure 5 for lifting details.
8. The shipping skid adds 4.00 inches (105 mm) to the
overall unit height.
9. If main power wiring is brought up through the oor, this
wiring must be outside the envelope of the unit.
10. The unit is shipped with a full operating charge of
refrigerant except with the “Partial Disassembly”
knockdown option.
11. Power landing panel is on top of the cabinet. Multiple
point power will have two separate landing panels as
shown in Figure 6.
12. Units with single point power, 575V, and/or the optional
harmonic lter will require additional panels than shown
in Figure 7.
Unit Dimensions and Shipping Weight

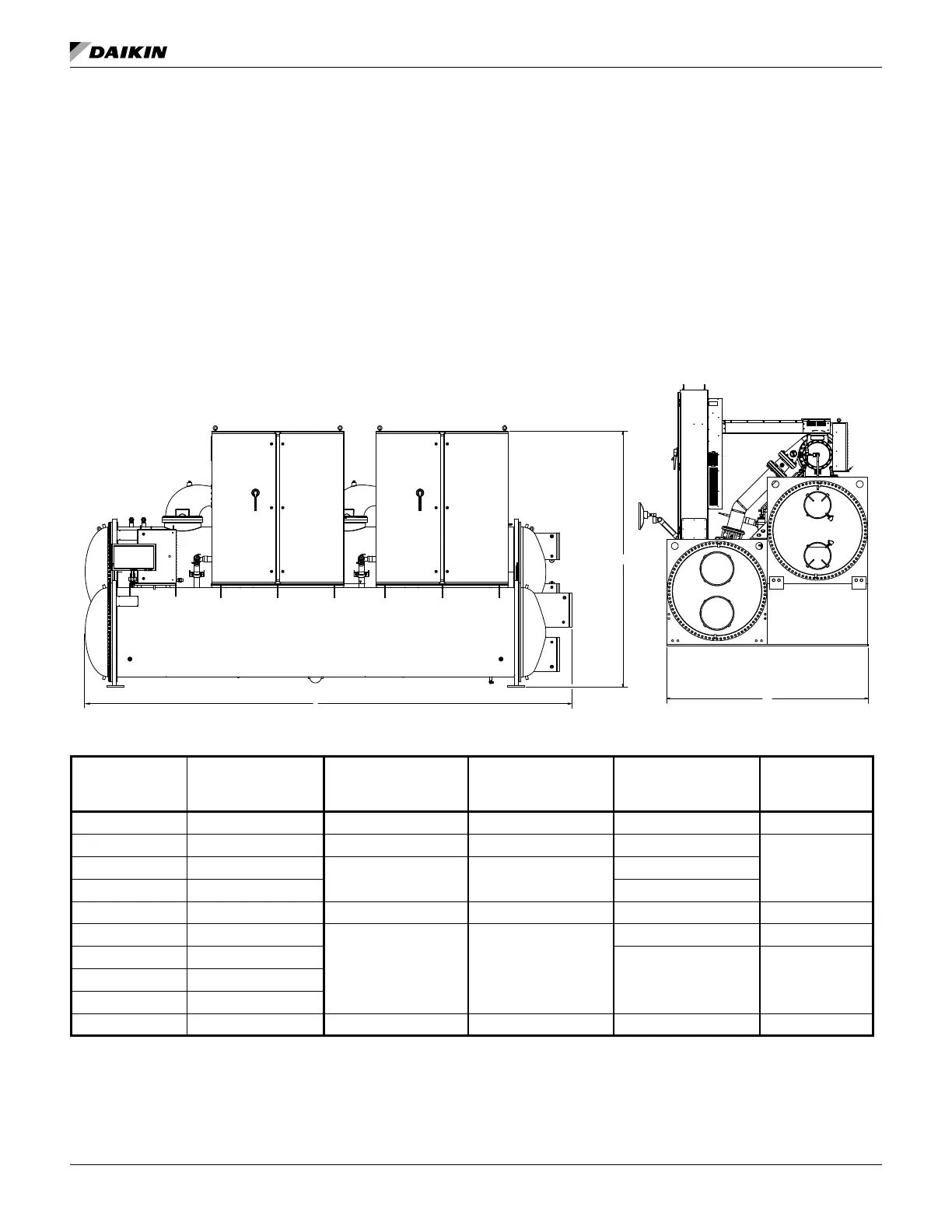

Figure 7: Representative WME Dimensional Drawing
Table 1: WME Overall Dimensions
NOTE: 1. Unit conguration may be different than illustrated. Refer to certied drawings for specic conguration/dimensions.
2. Unit length represents 2 pass, 150 psi water box conguration with grooved connections.
3. Unit height represents largest conguration possible but does not include height of removable eye bolt.
R.75
IN
OUT
W
IN
OUT
VFD #1 VFD #2
H
L
Model
1
Heat Exchanger
Dished Waterbox Heads
Length
2
in. (mm)
Marine Waterbox Heads
Length
2
in. (mm)
Width in. (mm)
Height
3
in. (mm)
WME092*S E3012 / C2612
170.58 (4332) 188.46 (4787) 69.10 (1755) 97.69 (2481)
WME092*S E3012 / C3012
173.95 (4418) 188.08 (4777) 74.53 (1893)
102.65 (2607)
WME092*S E3612 / C3012
175.89 (4467) 194.39 (4937)
82.88 (2105)
WME106*S E3612 / C3012
82.97 (2107)
WME106*S E3612 / C3612
174.64 (4435) 194.64 (4943) 85.13 (2162) 108.74 (2762)
WME092*D E4216 / C3616
226.06 (5742) 251.21 (6380)
95.87 (2435) 111.24 (2825)
WME092*D E4216 / C4216
98.03 (2490) 114.82 (2916)
WME099*D E4216 / C4216
WME106*D E4216 / C4216
WME106*D E4816 / C4216
231.44 (5878) 256.94 (6526) 104.3 (2649) 117.41 (2982)
