Daikin R32 Series User Manual

6 | Installation
Installer reference guide
30
3(A)MXM+3(A)MXF+4MXM+5MXM
R32 Split series
4P600463-1B – 2020.05
6.3.3 To provide the installation structure
Check the strength and level of the installation ground so that the unit will not
cause any operating vibration or noise.
Use a vibration-proof rubber (field supply) in cases where vibrations may be
transmitted to the building.
The unit may be installed directly on a concrete veranda or another solid surface as
long as it provides proper drainage.

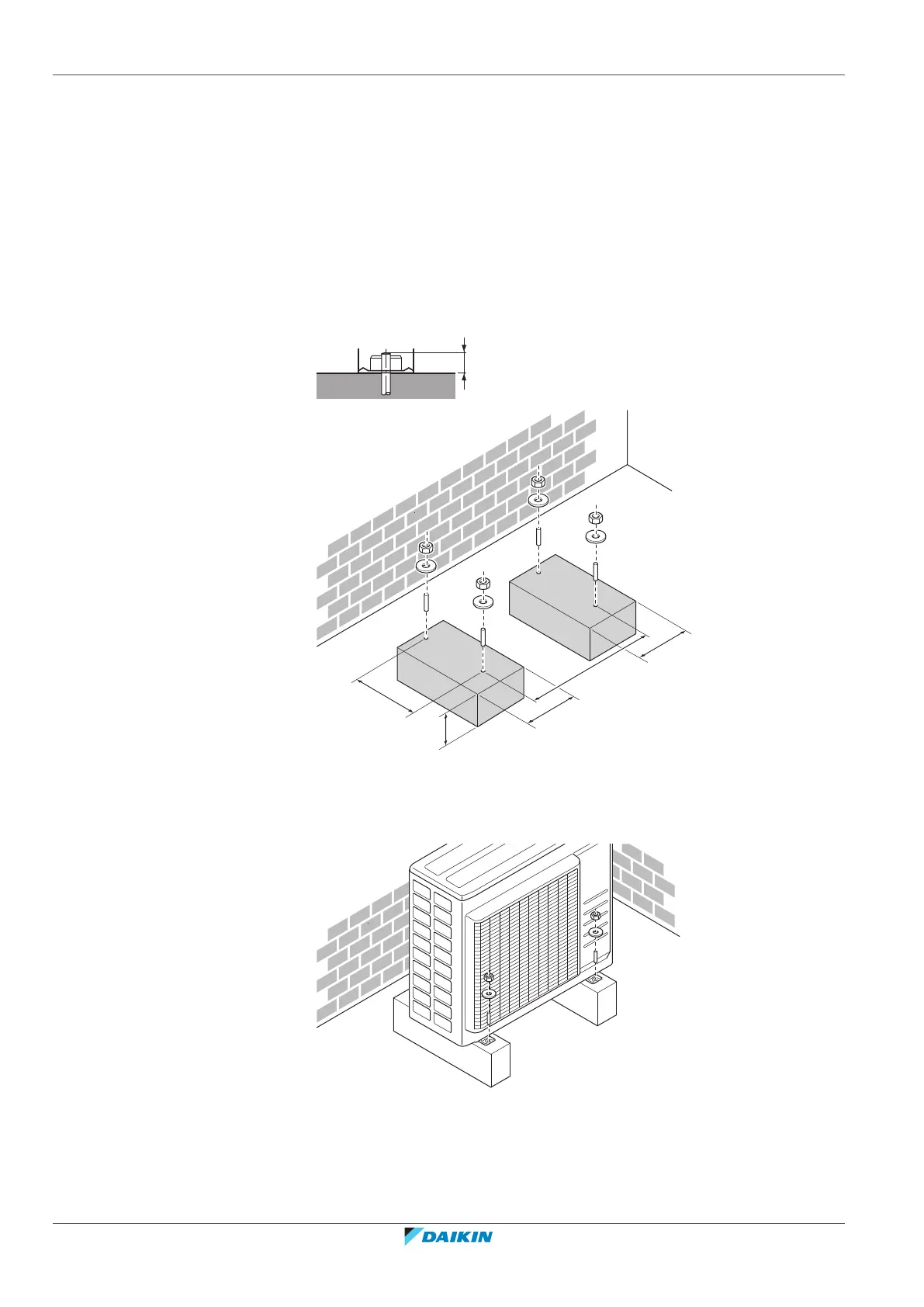

Fix the unit securely by means of foundation bolts in accordance with the
foundation drawing.
Prepare 4 sets of M8 or M10 anchor bolts, nuts and washers (field supply).
20 mm
(mm)
353
600
240
240
a
a 100mm above expected level of snow
6.3.4 To install the outdoor unit
4× M8/M10
6.3.5 To provide drainage
▪ Make sure that condensation water can be evacuated properly.

Daikin R32 Series Specifications

General

Refrigerant	R32
Airflow Direction Control	Yes
Type	Split System
Cooling Capacity	Varies by model
Heating Capacity	Varies by model
Energy Efficiency Ratio (EER)	Varies by model
Coefficient of Performance (COP)	Varies by model
Noise Level (Indoor Unit)	Varies by model
Noise Level (Outdoor Unit)	Varies by model
Power Supply	Varies by model
Indoor Unit Dimensions	Varies by model
Outdoor Unit Dimensions	Varies by model
Indoor Unit Weight	Varies by model
Outdoor Unit Weight	Varies by model
