Outer Panels Si001406EB
2 Removal Procedure
1. Outer Panels
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1 Remove the 4 screws,
and then the top panel.

The shape of the discharge
grille varies depending on
the model.
2 Remove the 4 screws,
and then the left side
cover.

Some models do not have
the left side cover.
3 For square grille
models, remove the 7
screws of the front
panel.
For round grille models,
remove 8 screws.

For round grille models

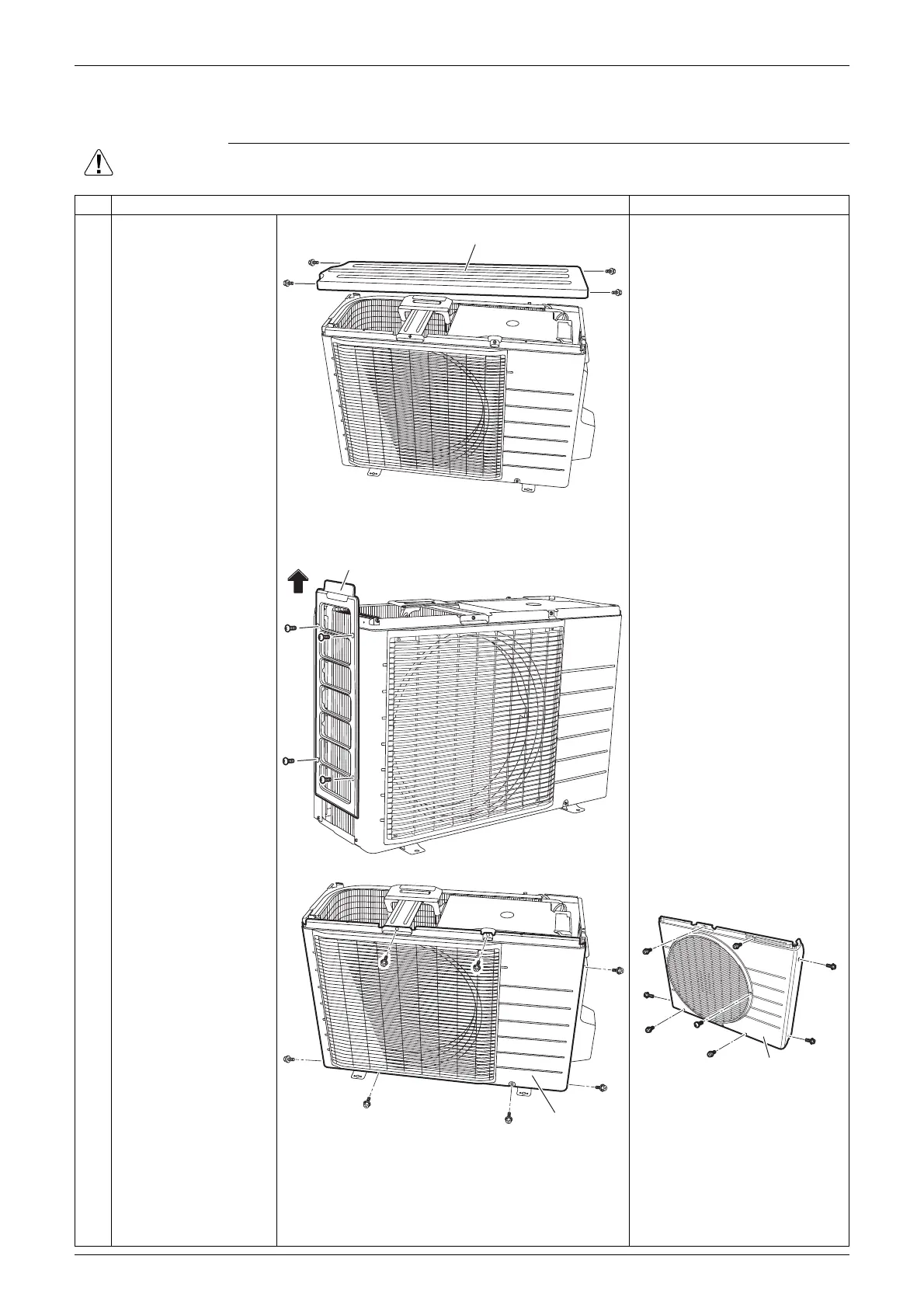

Top panel
(R20218)
Left side cover
(R20219)
(R20653)
Front panel
Front panel
(R23684)
