Data sheet REPI Series Digital Thermostat Manual
30
Override output value when bypass PID control
Display output value when enable PID control
0 - 255
31
Input signal management: 0: Input valid
1: Override Input: open
2: Override Input: close
0 0-2
32
Display room temperature or set-point
0: Room temperature 1: Set-Point
0 0-1
33
Configuration external sensor
0: B = 3950; 1: B = 3450; 2: B = 3900
3: User define (via network. default B = 3950)
0 0-3
34-38 N/A
39 Start temperature of Low temperature protection 5 °C/42 °F 0-15 °C/42-62 °F 1 °C/2 °F
40 Stop temperature of Low temperature protection 7 °C/46 °F 2-17 °C/46-66 °F 1 °C/2 °F
It will confirm itself 20 seconds later after setting and return to Off state.
Parameter table (continuo us)
Specification
There is a 5 poles switch on PCB. The meaning is below:
Location ON OFF
1 120 ohm Resistance between AB wires No Resistance between AB wires
2 Port 1 Modulation 0 - 20mA Off
3 Port 1 Modulation 0 - 10VDC Off
4 Port 2 Modulation 0 - 20mA Off
5 Port 3 Modulation 0 - 10VDC Off
40 Stop temperature of Low temperature protection 7 °C/46 °F

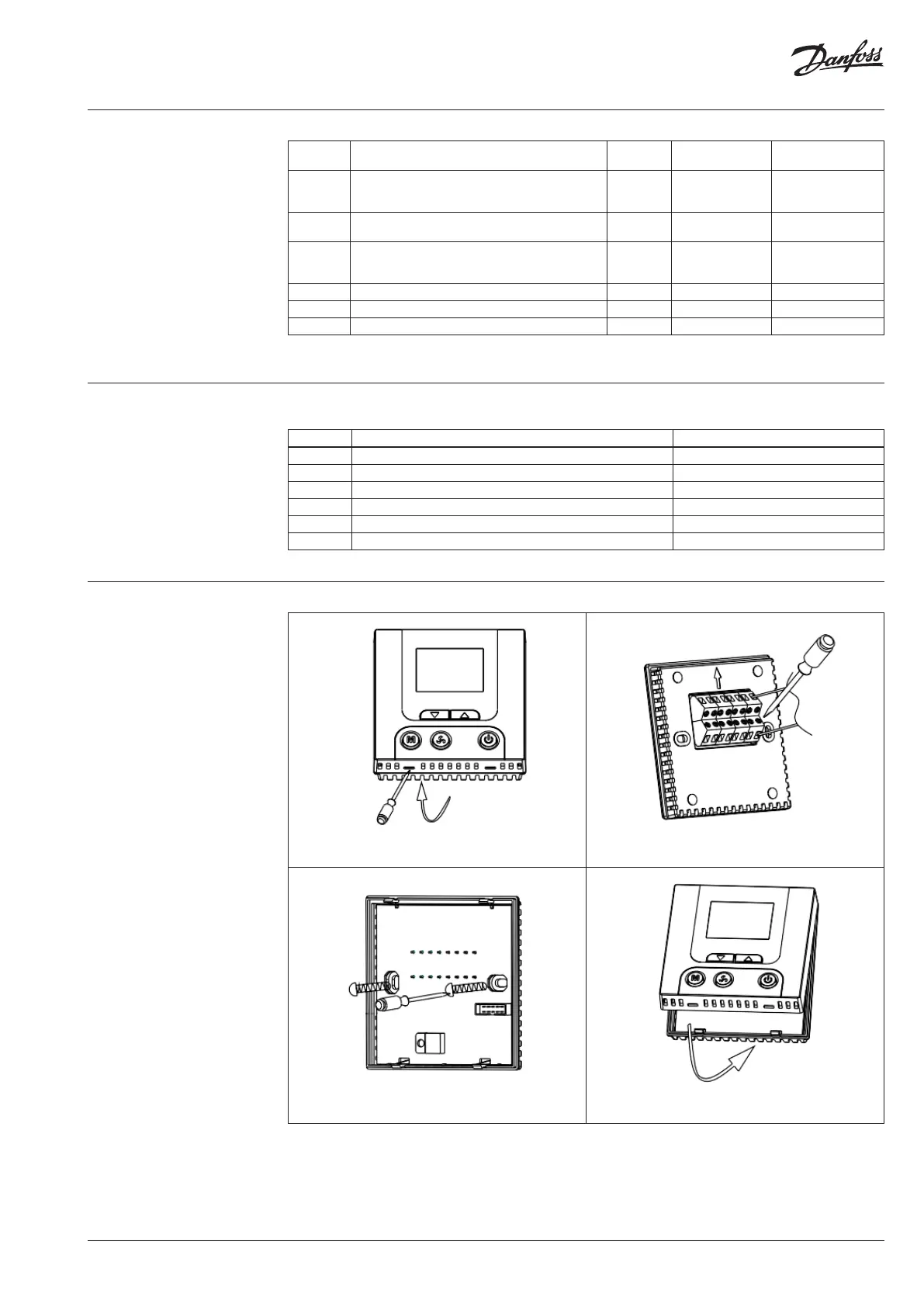

Mounting
1. Open the back panel with screwdriver. 2. Connect the wires follow the diagram.
3. Fix the base with screw. 4. Fix the front panel and finish the installation.
