Danfoss VLT 5022 Design Guide

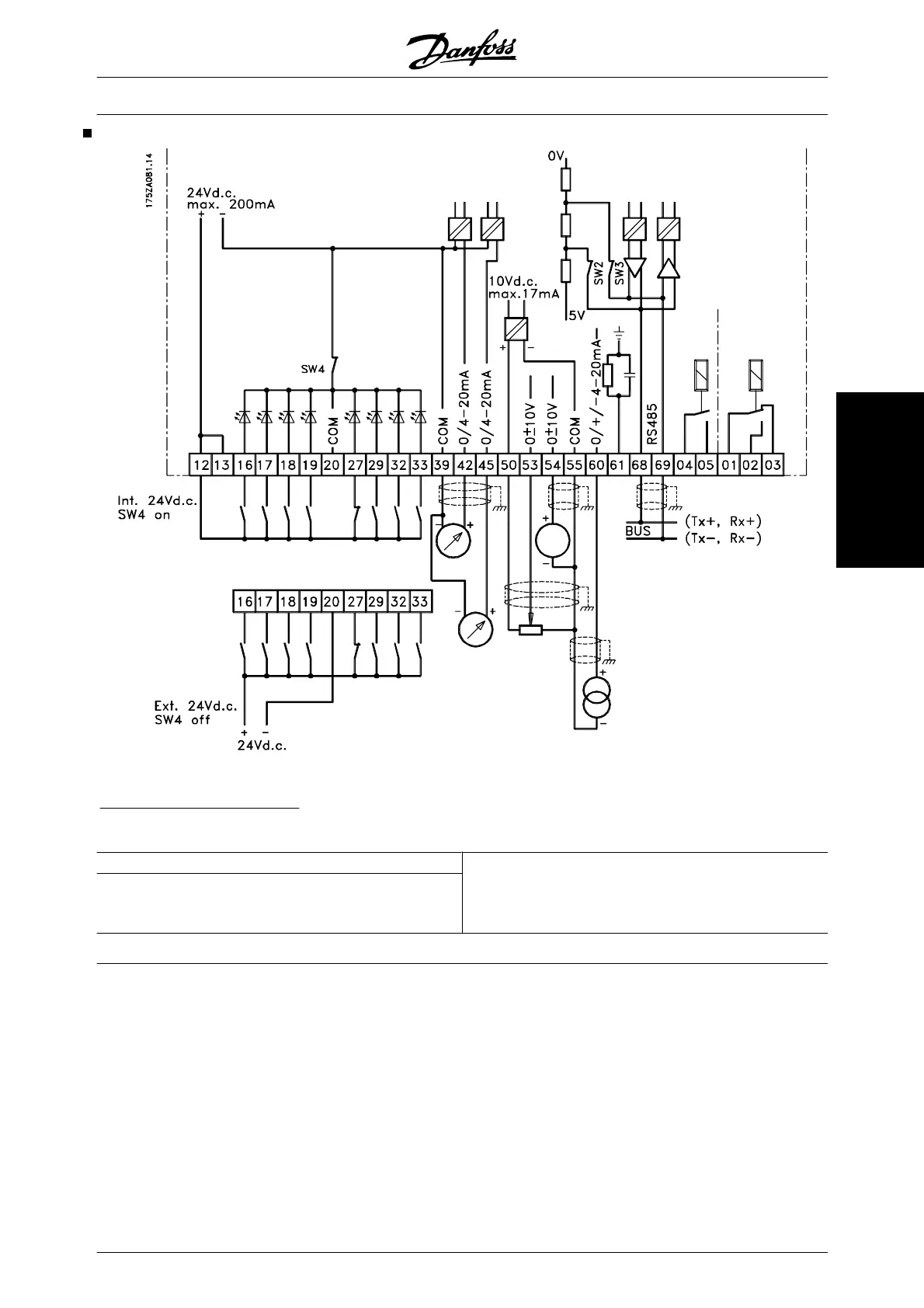

Electrical installation - Signal Input/Output
Conversion of analogue inputs
Current input signal to voltage input
0-20 mA ⇒ 0-10 V
Connect 510 ohms resistor between input terminal 53
and 55 and adjust minimum and maximum values in pa-
rameters 309, and 310 or 54 and 55 and adjust minimum
and maximum values in parameters 312 and 313.
4-20 mA ⇒ 2-10 V
VLT
®
5000 Design Guide
MG.52.B2.02 - VLT
®
is a registered Danfoss trademark 75
