Danfoss VLT 5152 Operating Instructions

VLT
®
5000 Series

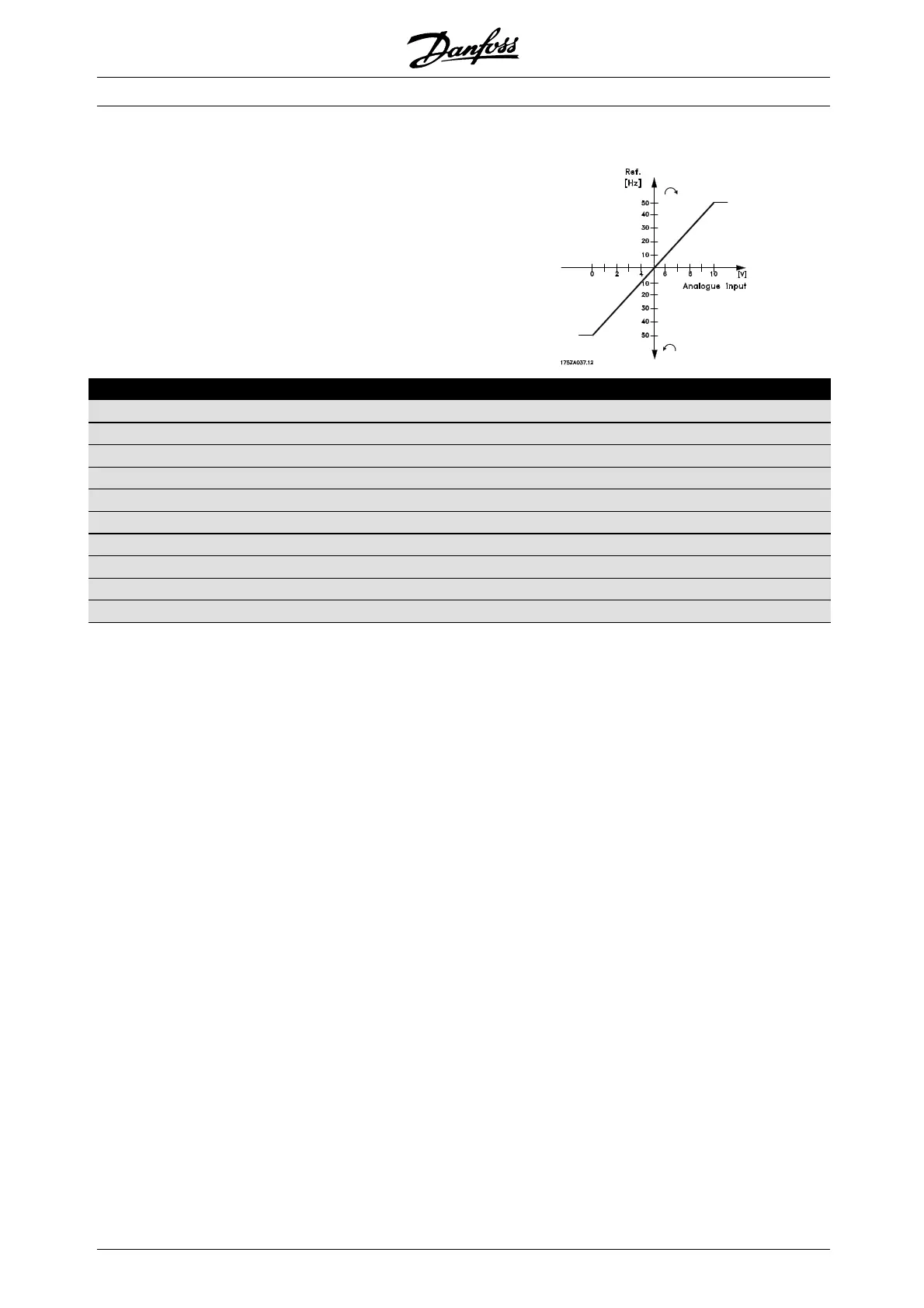

Example 2:
External reference signal = 0 V (min) - 10 V (max)
Reference=-50Hzccw-50Hzcw
Configuration (parameter 100) =Speed
control, open loop.
Setting:
Parameter: Setting: Data value:
100 Configuration Speed control, open loop [0]
308 Funct. of analogue input Reference [1]
309 Min. reference signal Min. 0 V
310 Max. reference signal Max. 10 V
203 Reference range Reference range - Max - + Max [1]
205 Max. reference 100 Hz
214 Reference type Sum [0]
215 Preset reference -50%
200 Output frequency range/direction Both directions, 0-132 Hz [1]
The following can be used:
- Catch-up/slow-down via digital input terminals 16,17, 29, 32
or 33
- Freeze reference via digital input terminals 16,17, 29, 32 or 33.
