Assembling the AC Bus Bar Subassemblies
The AC bus bar assembly consists of the following 3 subassemblies, as shown in Illustration 1.5:
Support subassembly consisting of 3 components
Motor bus bar subassembly consisting of 3 components
Mains bus bar subassembly consisting of 5 components
1 AC bus bar subassembly bracket 3 Mains bus bar subassembly
2 Motor bus bar subassembly

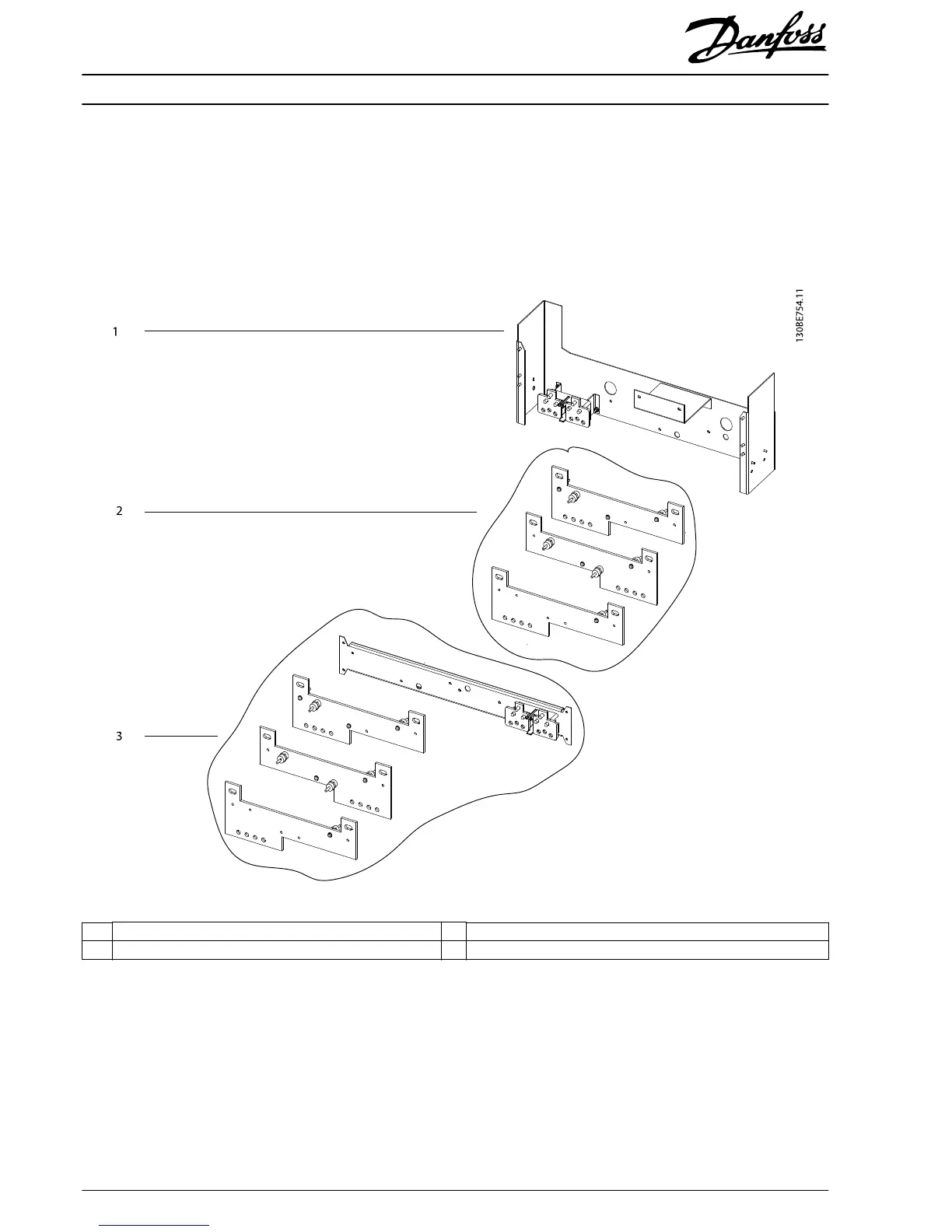

Illustration 1.5 Exploded View of the AC Bus Bar Assembly
Installation Instructions
Bus Bar Kit for 6-pulse, 2-drive System
VLT® Series FC 102, FC 202, and FC 302
4
Danfoss A/S © 02/2016 All rights reserved. MI92I102
