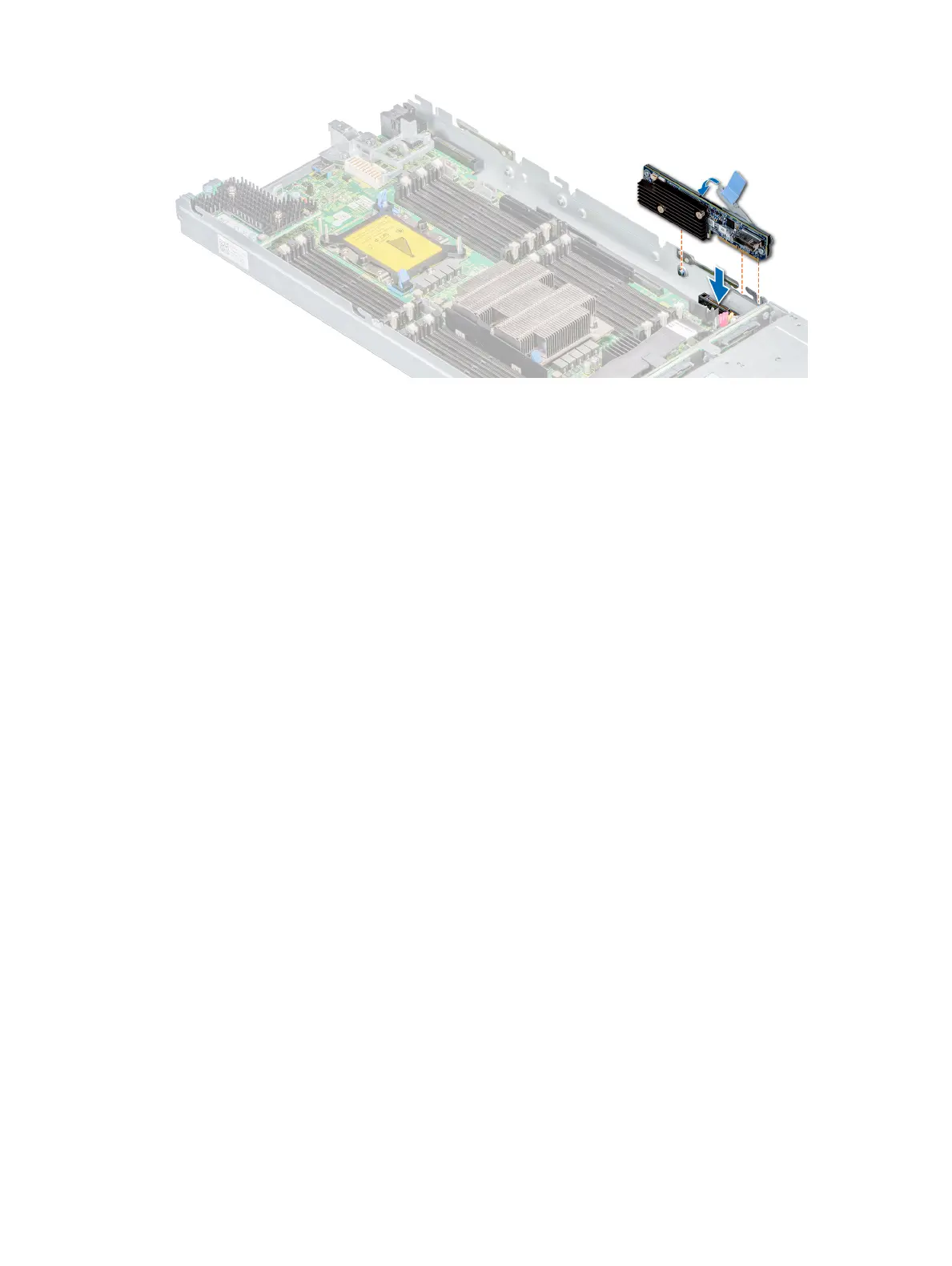

Figure 63. Installing the PERC card
5 Close the lever on the PERC card.
Next steps
1 Connect the cable to the PERC card.
2 Follow the procedure listed in After working inside your sled.
Removing the Jumbo PERC card
Prerequisites
1 Follow the safety guidelines listed in the Safety instructions.
2 Follow the procedure listed in the Before working inside your sled.
3 Disconnect the cable connected to the Jumbo PERC card.
Steps
1 Pull the two blue pull tags to raise the lever up on the Jumbo PERC card.
2 Holding both the blue pull tags, lift the Jumbo PERC card away from the system.
3 Install the connector cap on the I/O connector of the Jumbo PERC card.
90
Installing and removing system components
