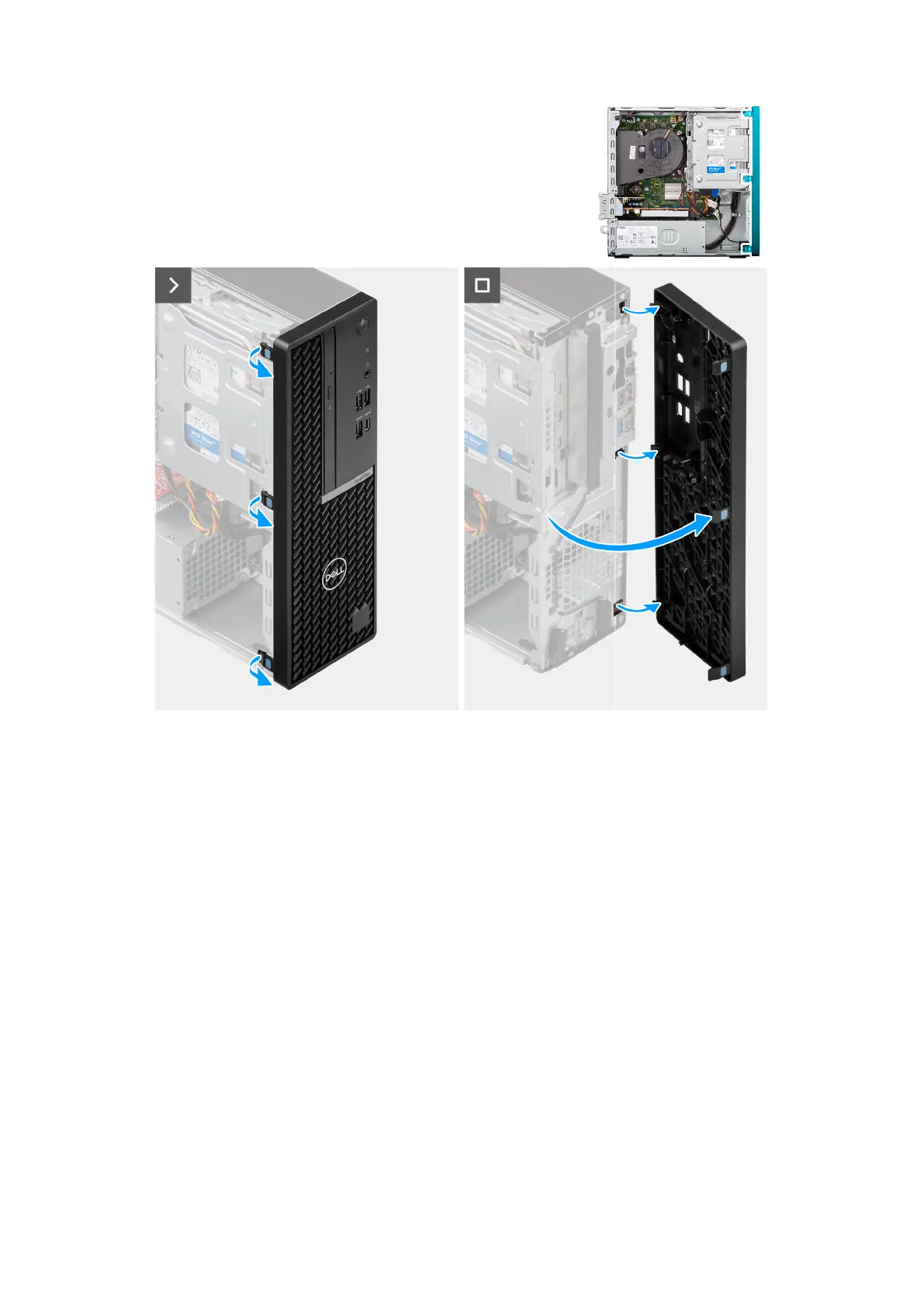

Figure 7. Removing the front bezel
Steps
1. Using a plastic scribe, gently pry and release the front-bezel tabs sequentially from the top.
2. Rotate the front bezel outward from the chassis and remove the front bezel.
Installing the front bezel
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the front bezel and provide a visual representation of the installation procedure.
Removing and installing Customer Replaceable Units (CRUs)
43
