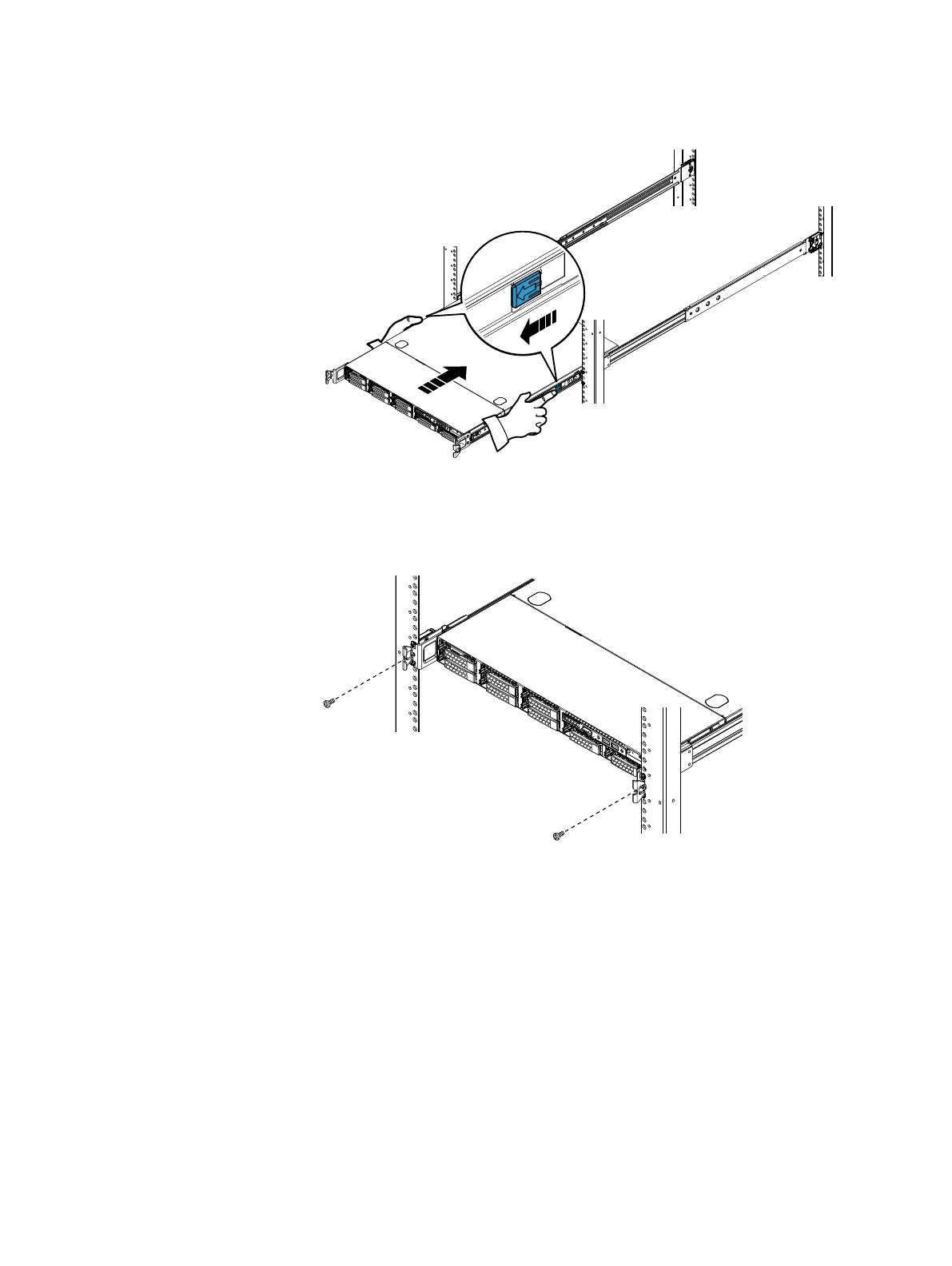

Figure 20 Inserting the server in the cabinet
CL4962
6. To further secure the rail assembly and server in the cabinet, insert and tighten
a small stabilizer screw directly behind each bezel latch.
Figure 21 Installing the stabilizer screws
CL4963
7. For management server SW install steps, refer to the latest VxRack Node
Deployment Guide .
Install the management switch in the cabinet
There are two cabinet rails (left and right). Each cabinet rail consists of the part that
is installed in the cabinet (slide rail) and the part that is mounted on the side of the
management switch (inner rail).
When the management switch is installed in the cabinet, the rear panel will be facing
the front of the cabinet.
Procedure
1. Separate the inner rails from the slide rails.
2. Install the slide rails in the cabinet with the hardware provided.
2U4N Configuration Equipment Installation
44 VxRack Node Hardware Installation Guide

Dell 100 Series Specifications

General

Processor	Intel Xeon E3-1200 series
Hard Drives	Up to 2 x 3.5" SATA HDD
Storage	SATA
Expansion Slots	1 x PCIe x16
Networking	Dual Gigabit Ethernet
