Dell 1510X User Manual

Using Your Projector 31

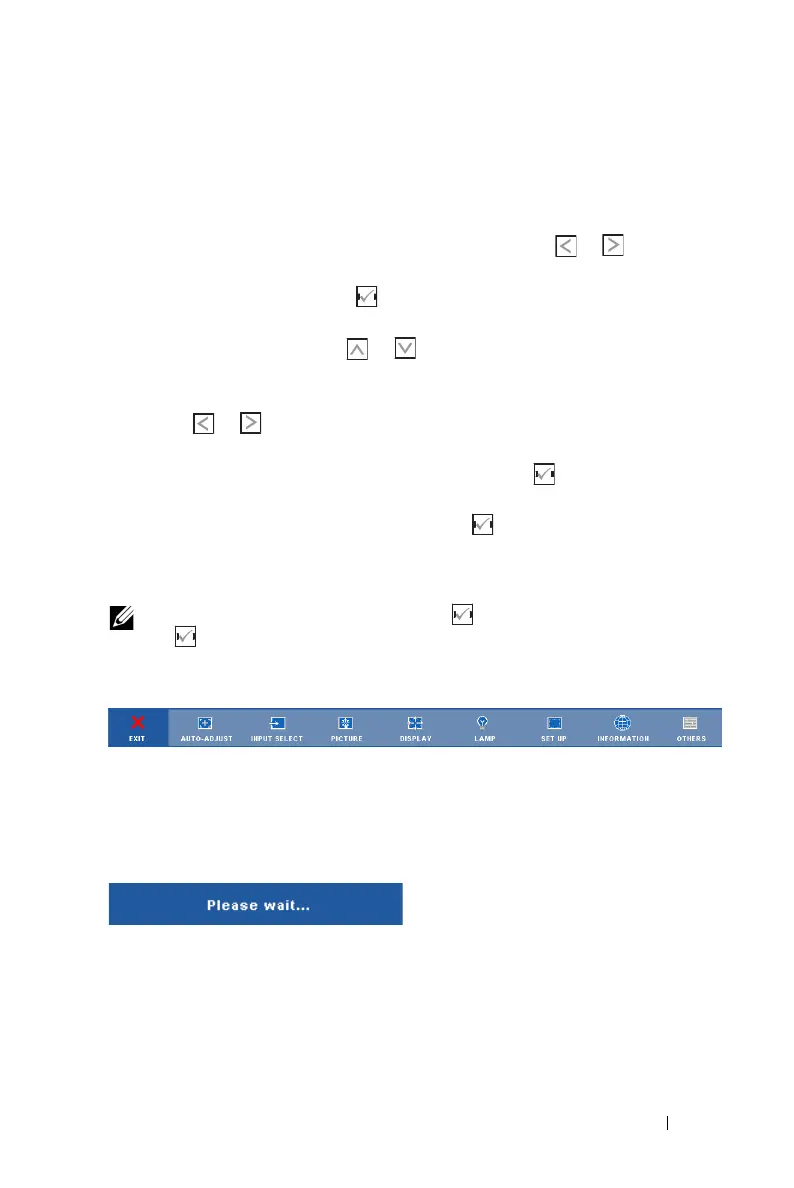

Using the On-Screen Display
• The projector has a multi-language On-Screen Display (OSD) Menu that can be
displayed with or without an input source.
• To navigate through the tabs in the Main Menu, press the or buttons on
your projector’s control panel or remote control.
• To select a submenu, press the button on your projector’s control panel or
press the Enter button on the remote control.
• To select an option, press the or buttons on your projector’s control panel
or remote control. The color changes to dark blue. When an item is selected, the
color changes to dark blue.
• Use the or buttons on the control panel or remote control to adjust the
settings.
• To go back to Main Menu, go to Back tab and press the button on the control
panel or press the
Enter button on the remote control.
• To exit the OSD, go to EXIT tab and press the button or press the Menu
button directly on the control panel or press the
Enter button on the remote
control.
NOTE: Due to Enter button in place of the button on remote control, there is
no mark on remote now.
Main Menu
AUTO-ADJUST
Auto Adjust automatically adjusts the projector's Frequency and Tracking in PC
mode. While Auto Adjustment is in progress, the following message appears on
the screen:

Dell 1510X Specifications

General

Native aspect ratio	4:3
Projection distance	1.2 - 10 m
Projection technology	DLP
Contrast ratio (typical)	2100:1
Screen size compatibility	30.8 - 307 \
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	-35 - 40 °
Zoom capability	Yes
Focal length range	18.2 - 21.8 mm
Lamp power	225 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	3000 h
Service life of light source (economic mode)	4000 h
DVI port	No
Composite video in	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	2
CardBus PCMCIA slots quantity	0
RS-232 ports	-
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Analog signal format system	NTSC 4.43, NTSC J, NTSC M, PAL 60, PAL B, PAL D, PAL G, PAL H, PAL I, PAL M, PAL N, PAL Nc, SECAM B, SECAM D, SECAM G, SECAM K1, SECAM L
Supported graphics resolutions	1024 x 768 (XGA)
RMS rated power	8 W
Placement	Desktop
Product type	Standard throw projector
Product color	Black
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	287 W
Power consumption (PowerSave)	15 W
Battery type	2 x AAA
Noise level	35 dB
Noise level (economic mode)	32 dB
Storage temperature (T-T)	0 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Cables included	VGA

Weight and Dimensions

Depth	202 mm
Width	296.5 mm
Height	87.9 mm
Weight	2360 g
