Dell 2330d - Laser Printer B/W Service Manual

Repair information 4-37
Media ACM ASM feeder removal
1. Remove the left side cover. See “Left side cover removal” on page 4-23.
2. Remove the LVPS/HVPS. See “LVPS/HVPS removal” on page 4-27.
3. Remove the duplex. See “Duplex removal” on page 4-11.
4. Remove the main motor gear drive. See “Main motor gear drive removal” on page 4-30.
5. Remove the media feed clutch. See “Media feed clutch with cable removal” on page 4-40.

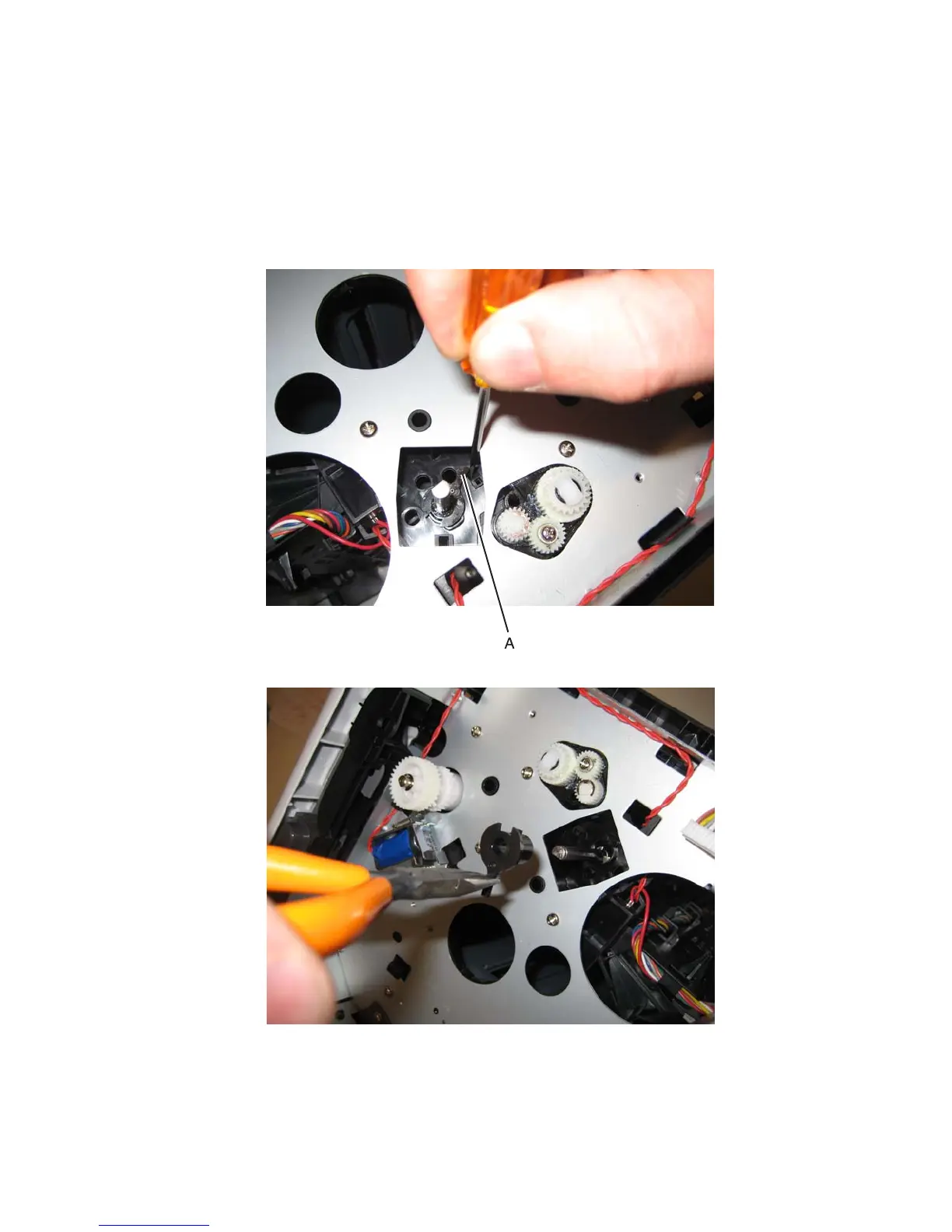

6. Use a screwdriver to pop the shaft retainer tab (A) loose from the ACM feed shaft.
7. Use a small pair of pliers to remove the shaft retainer tab.

Dell 2330d - Laser Printer B/W Specifications

General

Print Technology	Laser
Print Speed	Up to 35 ppm
Print Resolution	1200 x 1200 dpi
Standard Input Capacity	250 sheets
Processor Speed	400 MHz
Memory	64 MB
Operating System Compatibility	Windows, Mac, Linux
Connectivity	Ethernet
Maximum Paper Size	8.5 x 14 inch
Monthly Duty Cycle	50, 000 pages
