Dell C Series User Manual

6 Installing the Hardware
Follow these steps to install the chassis into a 19-inch equipment rack:
Step Task
1 Determine the chassis mounting location in the equipment rack.
2 Orient the bar with the arrows pointing upward. The smooth side of the
bar should face outward.

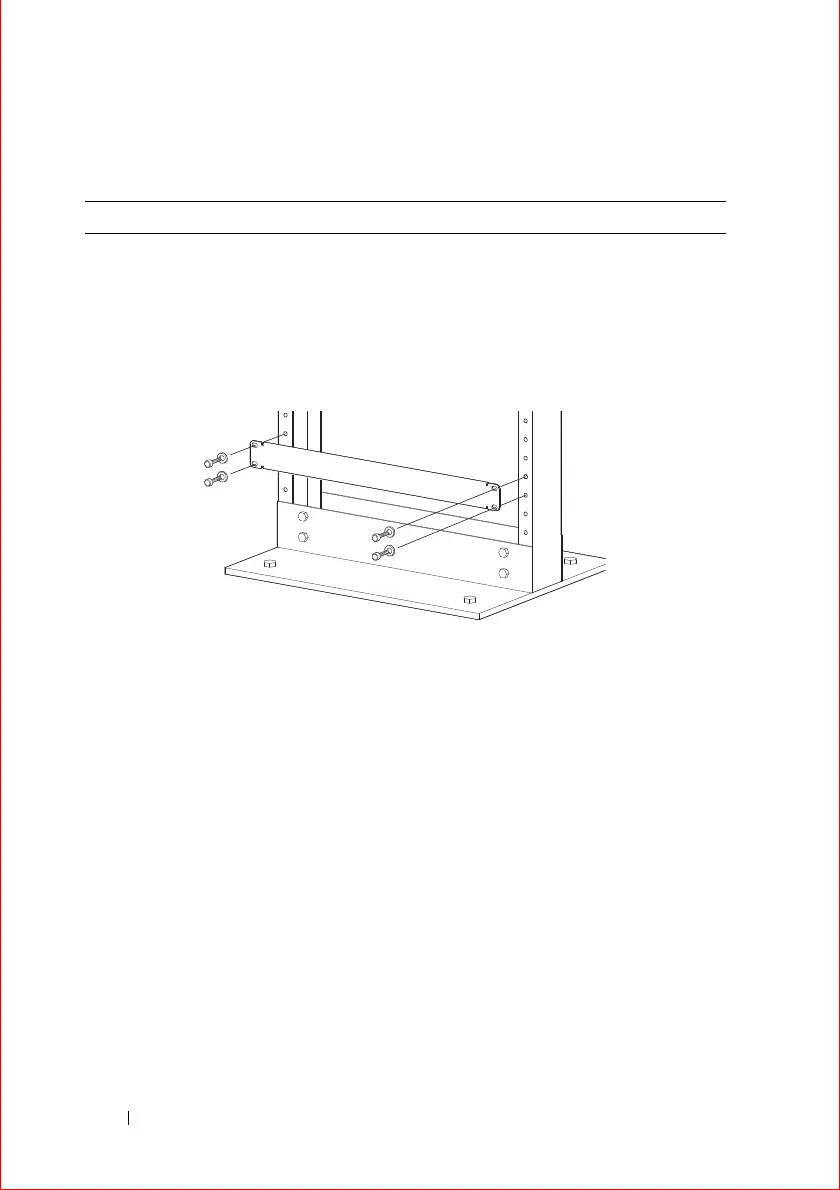

3 Attach the bar to the equipment rack brackets using the mounting screws
provided by the rack manufacturer.
4 Use an equipment lift to align the chassis rack-mount holes with the
equipment rack holes, and situate the chassis on top of the equipment
rack bar.
