The OSD will only function in the normal operation mode. When any button except power button is pressed in Active-
off mode, the following messages will be displayed:
Activate the computer and monitor to gain access to the OSD.

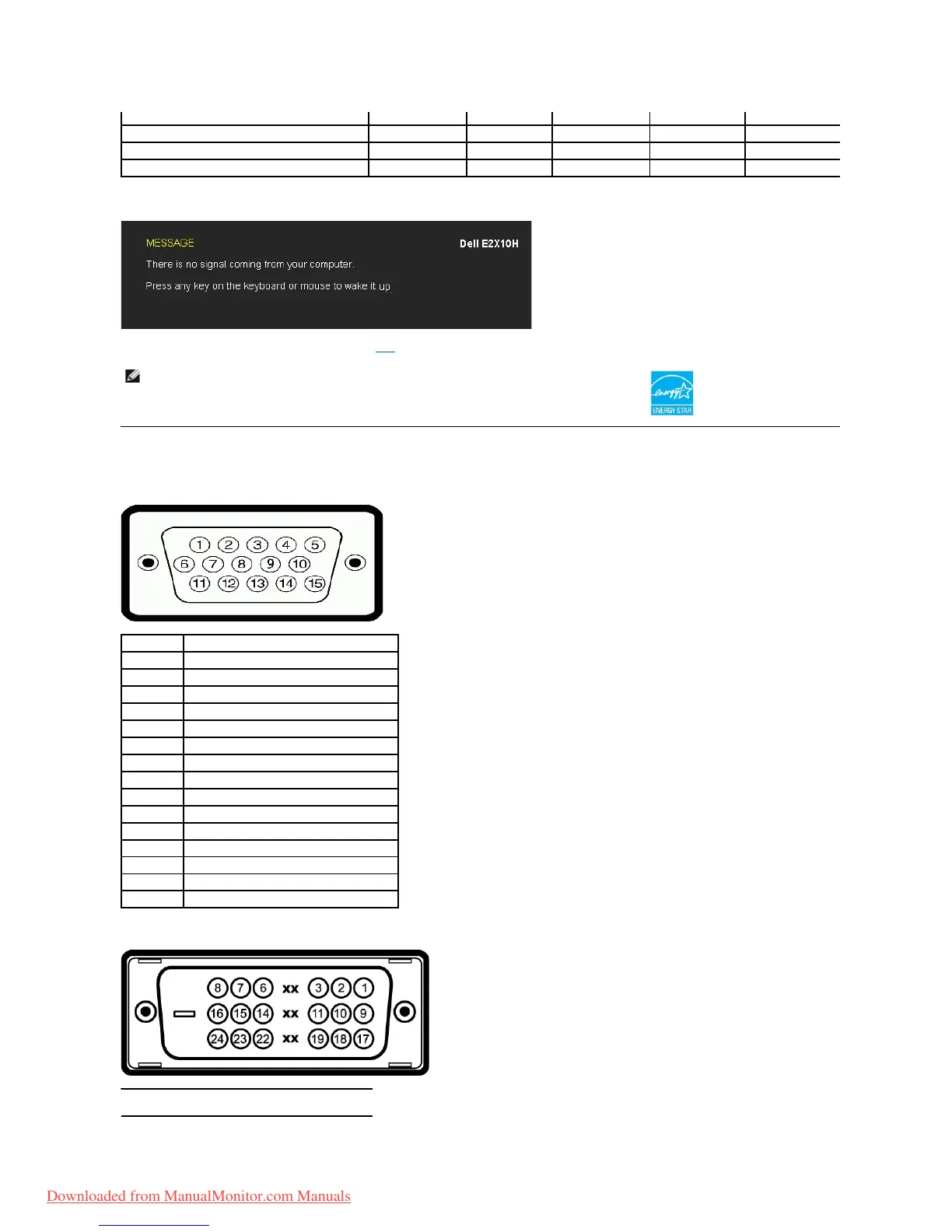

Pin Assignments
15-pin D-Sub connector
DVI connector
VESA Modes
Horizontal Sync
Vertical Sync
Video
Power Indicator
Power Consumption
Normal operation
Active
Active
Active
Blue
29 W
Active-off mode
Inactive
Inactive
Blank
Amber
Less than 1 W
Switch off
-
-
-
Off
Less than 1 W
NOTE: Dell E2010H/E2210H/E2310H Flat Panel monitor is TC003 and ENERGY STAR®-compliant.
Zero power consumption in OFF mode can only be achieved by disconnecting the main cable from the monitor.
Pin Number
Monitor Side of the 15-pin Side Signal Cable
1
Video-Red
2
Video-Green
3
Video-Blue
4
GND
5
Self-test
6
GND-R
7
GND-G
8
GND-B
9
DDC +5V
10
GND-sync
11
GND
12
DDC data
13
H-sync
14
V-sync
15
DDC clock
Pin
Number
24-pin Side of the Connected Signal Cable
Downloaded from ManualMonitor.com Manuals

Table of Contents

Other manuals for Dell E2010H

Preview: Setup Guide
Setup Guide2 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Dell E2010H and is the answer not in the manual?

Dell E2010H Specifications

General IconGeneral
3DYes
HD type-
Panel typeTN
Pixel pitch0.277 x 0.277 mm
Aspect ratio16:9
Display diagonal20 \
Display resolution1600 x 900 pixels
Display technologyLED
Viewable size, vertical249 mm
Viewing angle, vertical160 °
Display number of colors16.78 million colors
Viewable size, horizontal442.8 mm
Viewing angle, horizontal170 °
Display brightness (typical)250 cd/m²
Supported graphics resolutions1600 x 900
DVI-I ports quantity0
Product colorBlack
Market positioningBusiness
Storage temperature (T-T)-20 - 60 °C
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)10 - 80 %
Panel mounting interface100 x 100 mm
Input current1.6 A
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (standby)1 W
Power consumption (typical)26 W
Sustainability certificatesEPEAT Gold, ENERGY STAR
Package weight6350 g
Weight and Dimensions IconWeight and Dimensions
Depth (with stand)151.9 mm
Width (with stand)481.2 mm
Height (with stand)363.2 mm
Weight (with stand)4850 g
Weight (without stand)3500 g
