Dell EMC PowerEdge R7525 Service Manual

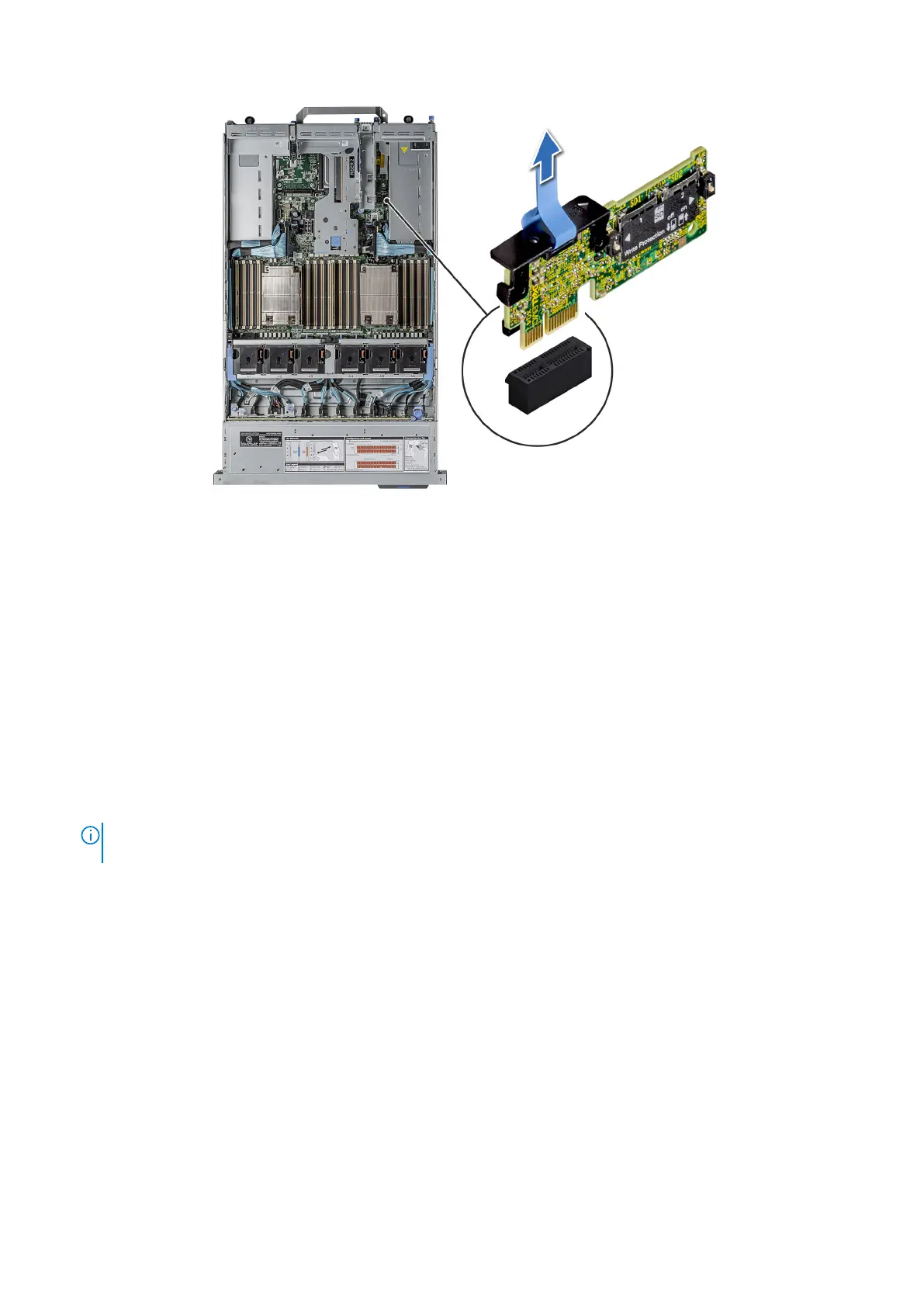

Figure 114. Removing the IDSDM module
Next steps
1. Replace the IDSDM module.
Installing the IDSDM module
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
Steps
1. Locate the IDSDM connector on the system board.
NOTE:
Ensure to install the IDSDM module in the IDSDM/USB card slot and not in the J_R3_PCIE_PWR connector
slot.
To locate IDSDM module, see the System board jumpers and connectors section.
2. Align IDSDM module with the connector on the system board.
3. Press the IDSDM module until it is firmly seated in the connector on the system board.
Installing and removing system components
139

Dell EMC PowerEdge R7525 Specifications

General

Form Factor	2U Rack
Processor	Up to two AMD EPYC 7002 or 7003 Series processors, up to 64 cores per processor
Memory	32 DDR4 DIMM slots, up to 4TB
Storage	Up to 24x 2.5" SAS/SATA/NVMe drives, or 12x 3.5" SAS/SATA drives
RAID Controller	PERC H345
Power Supply	1100W Platinum
PCIe Slots	Up to 8 x PCIe Gen4 slots
Operating System Support	Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Microsoft Windows Server
