Dell EMC PowerEdge R7525 Service Manual

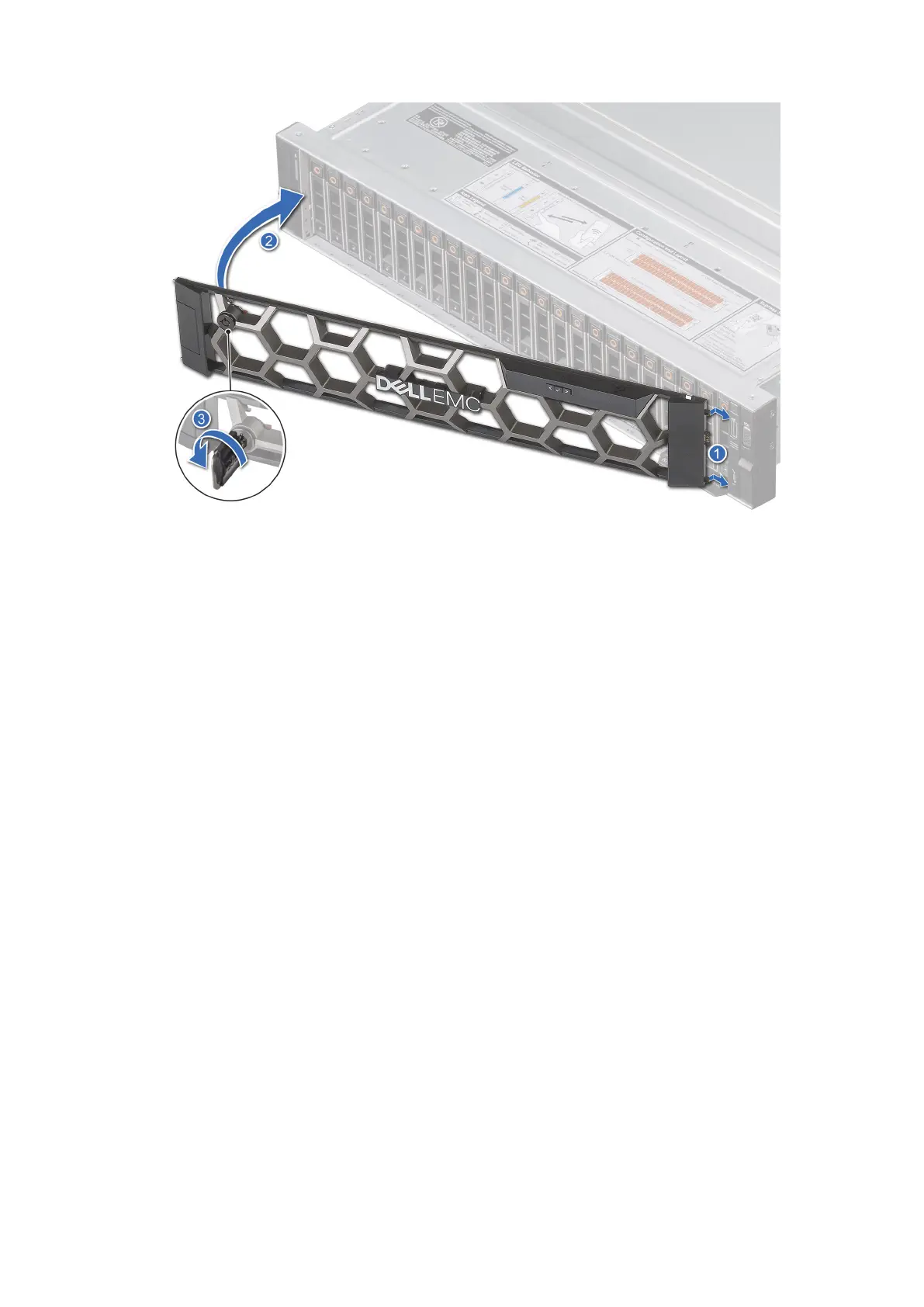

Figure 32. Installing the front bezel
System cover
Removing the system cover
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Power off the system, and any attached peripherals.
3. Disconnect the system from the electrical outlet and peripherals.
Steps
1. Using a 1/4-inch flat head or a Phillips #2 screwdriver rotate the lock counterclockwise to the unlock position.
2. Lift the release latch until the system cover slides back.
3. Lift the cover from the system.
Installing and removing system components
37

Dell EMC PowerEdge R7525 Specifications

General

Form Factor	2U Rack
Processor	Up to two AMD EPYC 7002 or 7003 Series processors, up to 64 cores per processor
Memory	32 DDR4 DIMM slots, up to 4TB
Storage	Up to 24x 2.5" SAS/SATA/NVMe drives, or 12x 3.5" SAS/SATA drives
RAID Controller	PERC H345
Power Supply	1100W Platinum
PCIe Slots	Up to 8 x PCIe Gen4 slots
Operating System Support	Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Microsoft Windows Server
