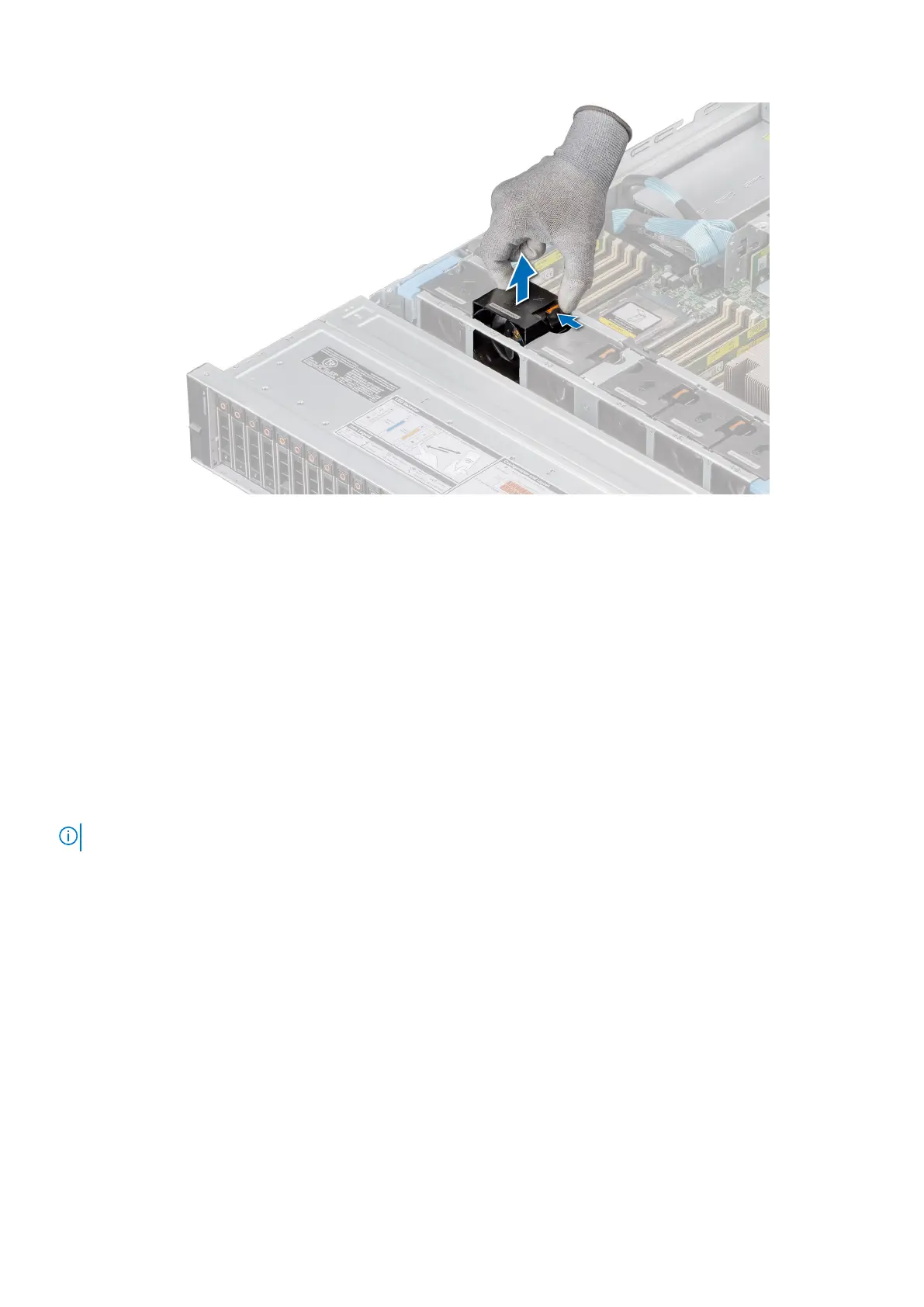

Figure 49. Removing a cooling fan
Next steps
1. Replace a cooling fan.
Installing a cooling fan
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
Steps
Align and slide the cooling fan into the cooling fan assembly until the fan clicks into place.
NOTE: The procedure to install standard, high-performance (silver grade), or high-performance (gold grade) fan is same.
54 Installing and removing system components
