Dell Inspiron 7415 2-in-1 User Manual

Steps
1. Peel the tape that secures the display cable to the system board.
2. Open the latch, and disconnect the display cable from the system board.
3. Remove the display cable from the routing guide on the palm-rest and keyboard assembly.
4. Remove the four screws (M2.5x3.5) that secure the display hinges to the palm-rest and keyboard assembly.
5. Lift at an angle and slide the display assembly off the palm-rest and keyboard assembly.
Installing the display assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

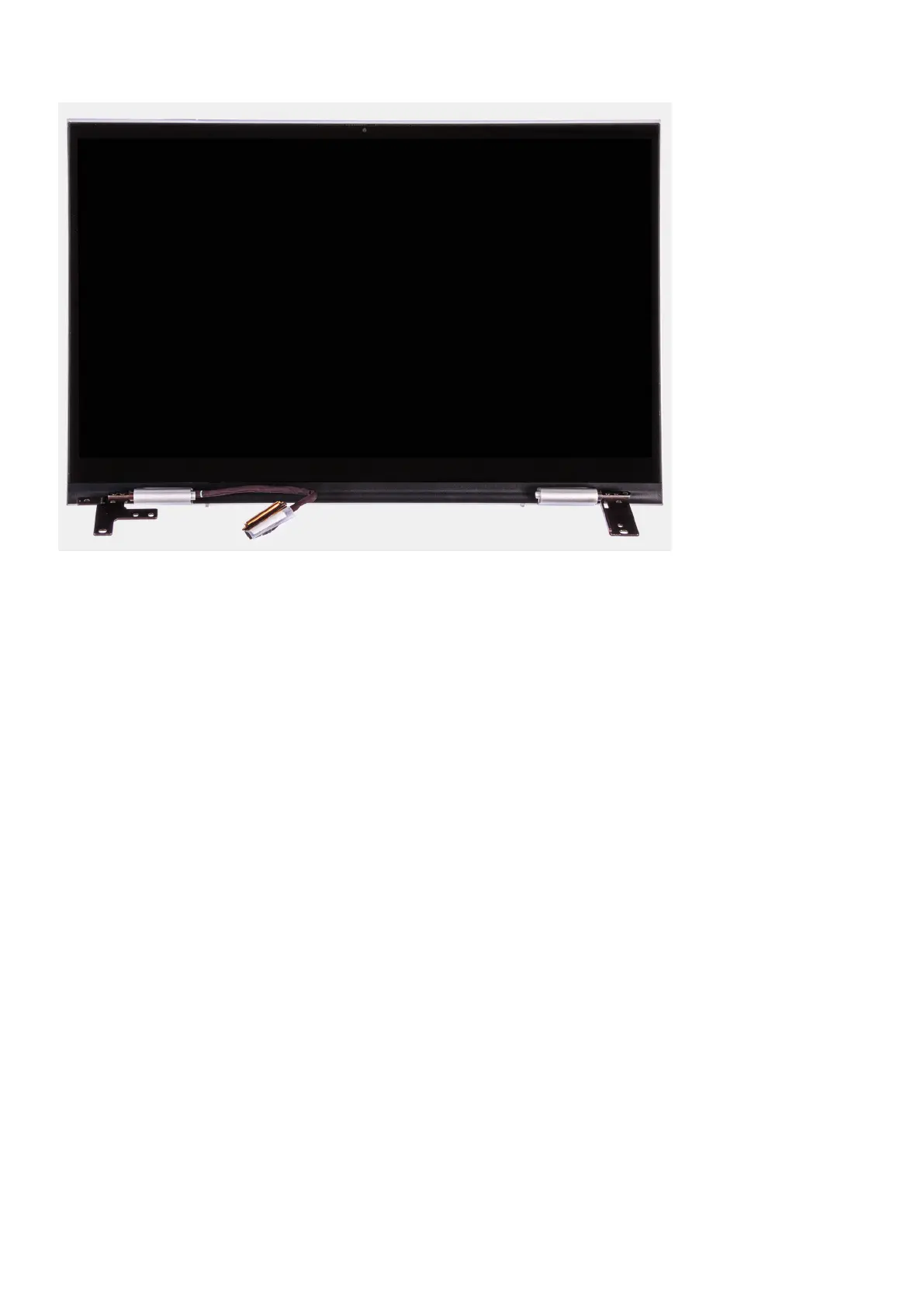

The following image indicates the location of the display assembly and provides a visual representation of the installation
procedure.
40
Removing and installing components

Dell Inspiron 7415 2-in-1 Specifications

General

Graphics	AMD Radeon Graphics
Processor	AMD Ryzen 5 5500U
Display	14.0-inch FHD (1920 x 1080)
RAM	8GB DDR4 3200MHz
Storage	256GB M.2 PCIe NVMe SSD
Operating System	Windows 10 Home
Battery	4-Cell, 54WHr Integrated Battery
Ports	2 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 1 Type-C, 1 x HDMI 1.4b, 1 x Headset Jack
Webcam	720p at 30 fps HD camera
Audio	Stereo speakers, Waves MaxxAudio Pro
