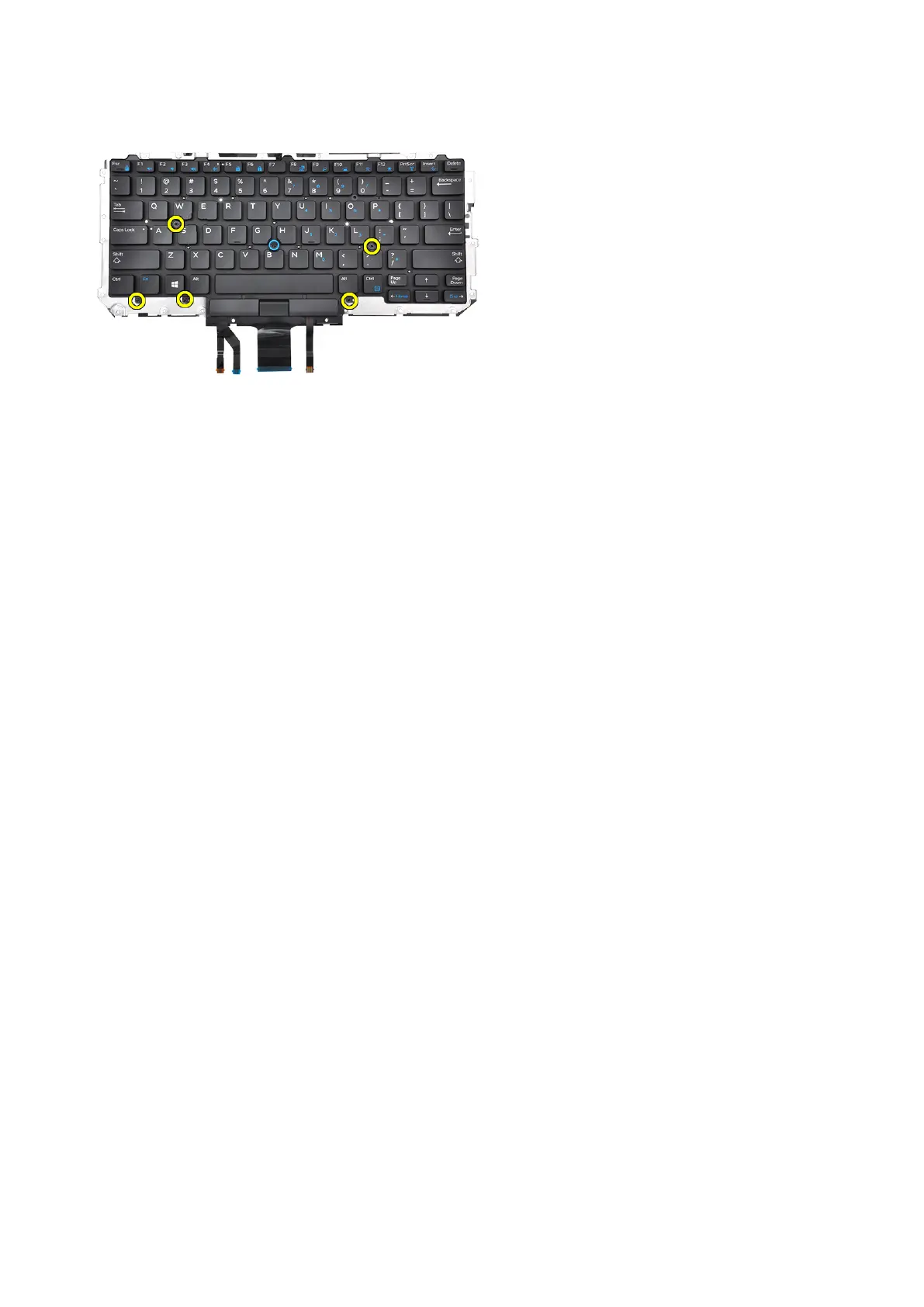

3. Install the keyboard assembly.

Palm rest

Replacing palm rest

Steps

1. Follow the procedure in Before working inside your computer.

2. Remove the:

a. base cover

b. battery

c. memory module

d. PCIe SSD

e. WLAN card

f. WWAN card

g. power connector port

h. heat sink assembly

i. coin cell battery

j. speaker

k. display assembly

l. system board

m. keyboard

Removing and installing components
