Dell N3000 Series User Manual

892 Snooping and Inspecting Traffic
DHCP Snooping Static Bindings Configuration
Use the DHCP Snooping Static Bindings Configuration page to add static
DHCP bindings to the binding database.
To access the DHCP Snooping Static Bindings Configuration page, click
Switching
→ DHCP Snooping → Static Bindings Configuration in the
navigation panel.

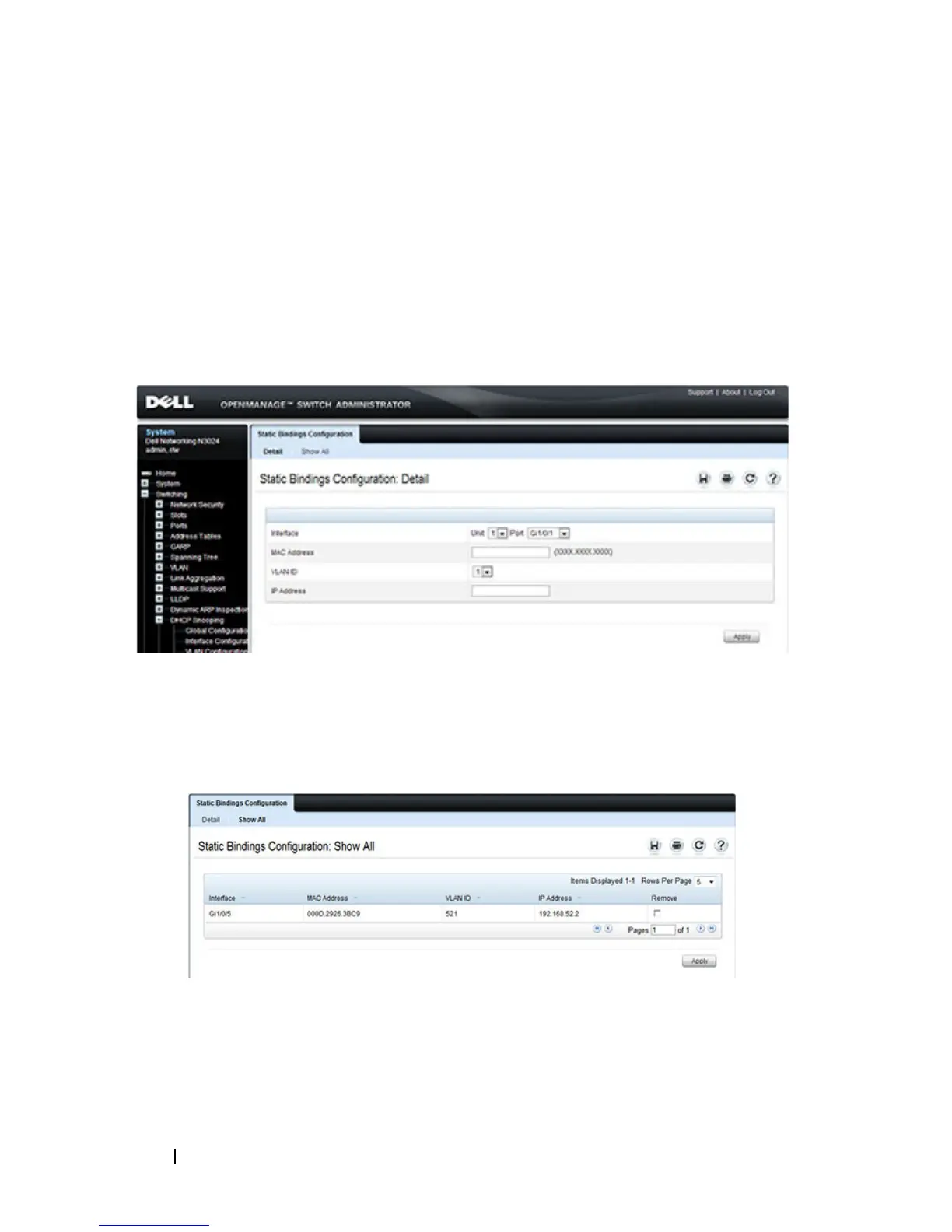

Figure 27-8. DHCP Snooping Static Bindings Configuration
To view a summary of the DHCP snooping status for all VLANs, click Show
All.
Figure 27-9. DHCP Snooping Static Bindings Summary
To remove a static binding, select the Remove checkbox associated with the
binding and click Apply.

Dell N3000 Series Specifications

General

Managed	Yes
Stacking Ports	2 x 10GbE SFP+
Weight	12.3 lbs (5.6 kg)
Operating Temperature	32° to 113°F (0° to 45°C)
Ports	24 or 48 10/100/1000 ports
