Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
About this task
NOTE: If the battery is disconnected from the system board for service, there is a delay during boot as the computer
undergoes an RTC battery reset.

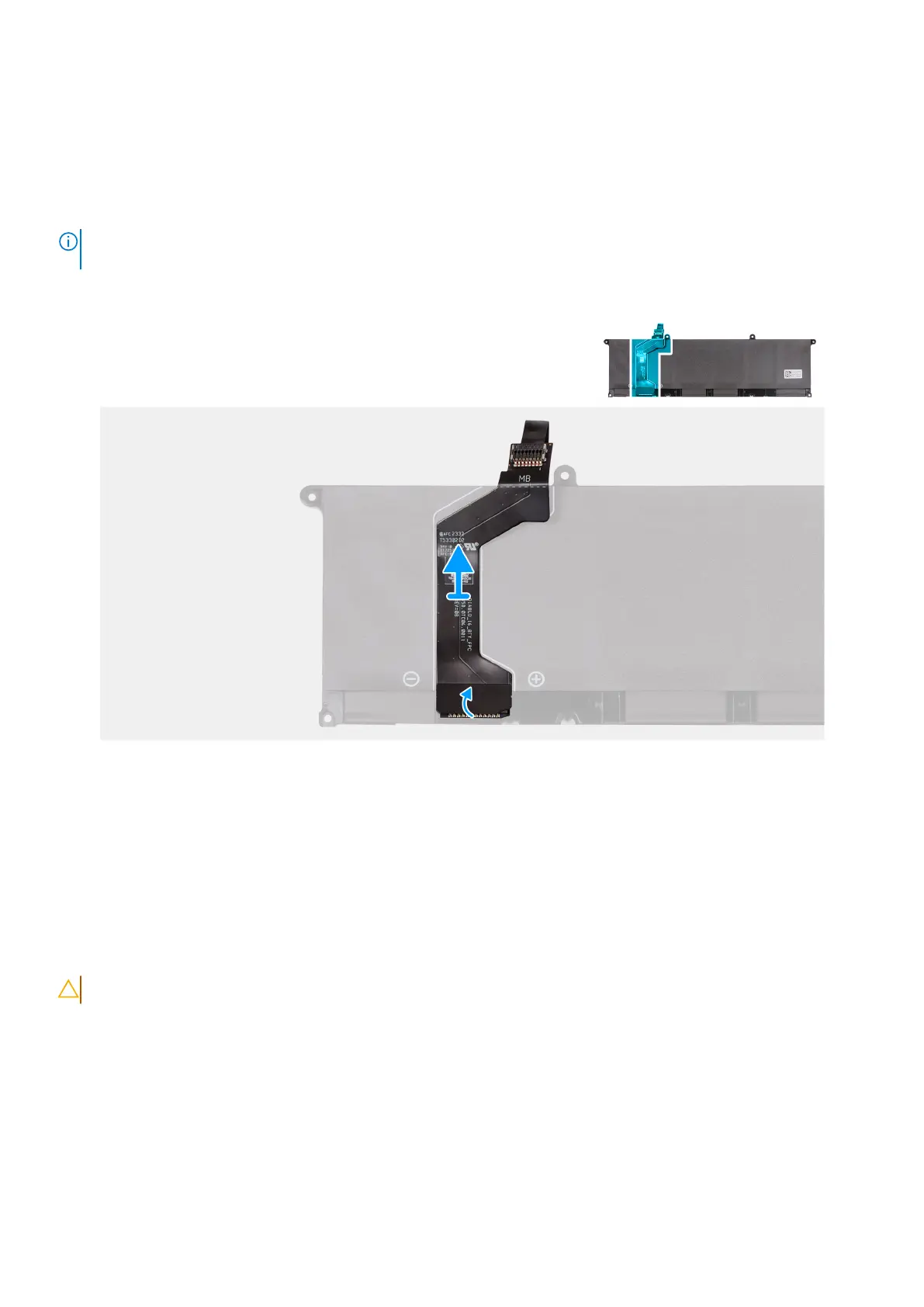

The following image(s) indicate the location of the battery cable and provides a visual representation of the removal procedure.
Figure 20. Removing the battery cable
Steps
1. Turn the battery over.
2. Peel the battery cable from the battery until you reach the end where it connects the cable to the battery.
3. Grasp the battery cable near the connector and lift to disconnect it from the battery.
Installing the battery cable
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image(s) indicate the location of the battery cable and provides a visual representation of the installation
procedure.
Removing and installing Field Replaceable Units (FRUs)
43
