Audio board
Removing the audio board
CAUTION: The information in this section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in Before working inside your computer.
NOTE: Ensure that your computer is in Service Mode. For more information, see step 6 in Before working inside your
computer.
2. Remove the base cover.
About this task
The following image(s) indicate the location of the audio board and provides a visual representation of the removal procedure.

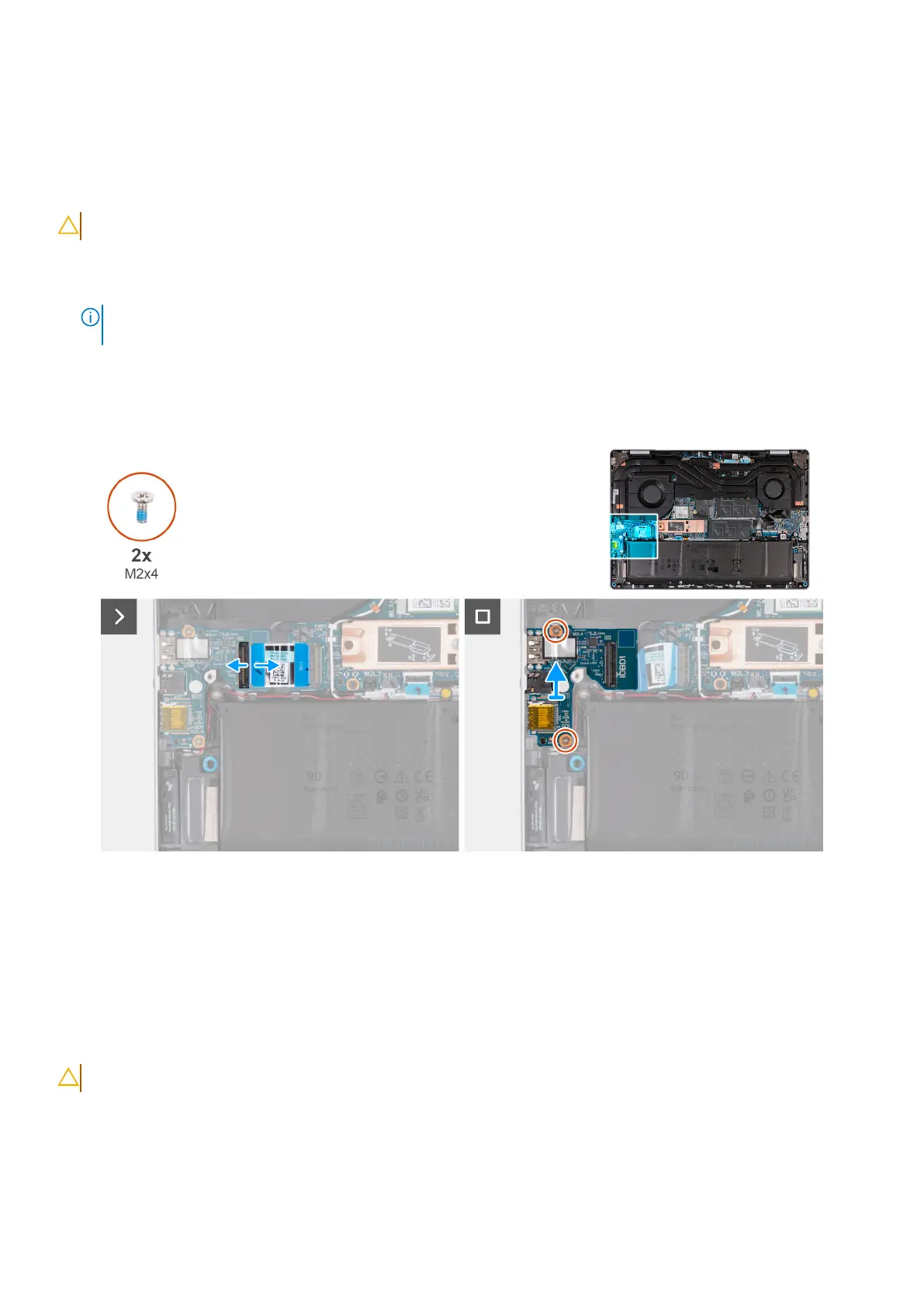

Figure 36. Removing the audio board
Steps
1. Lift the latch and disconnect the audio-board cable from its connector (IOBD1) on the audio board.
2. Remove the two screws (M2x4) that secure the audio board to the palm-rest and keyboard assembly.
3. Lift the audio board off the palm-rest and keyboard assembly.
Installing the audio board
CAUTION: The information in this section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
Removing and installing Field Replaceable Units (FRUs)
63
