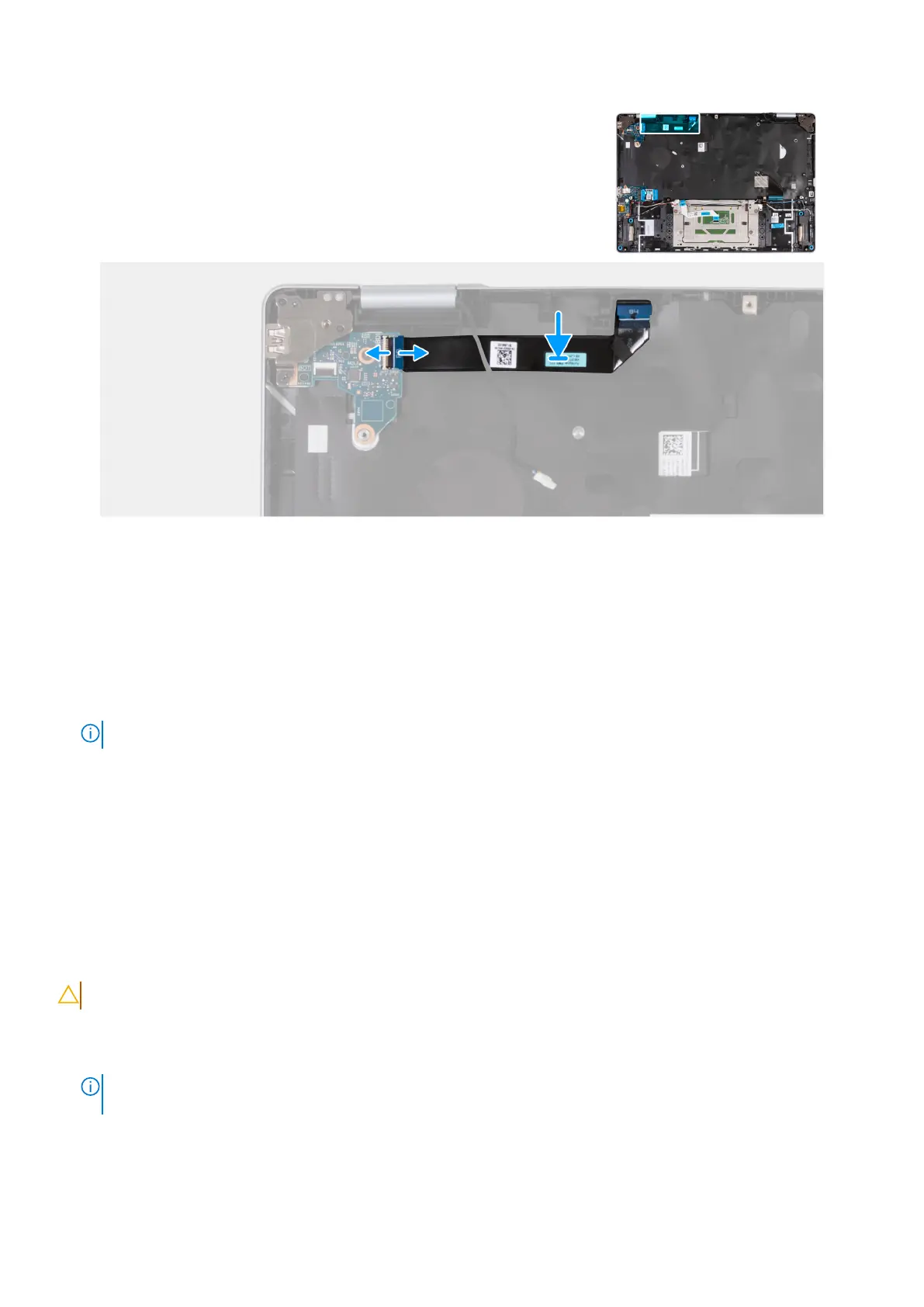

Figure 47. Installing the I/O-board cable
Steps
1. Place the I/O-board cable on the palm-rest and keyboard assembly.
2. Connect the I/O-board cable to its connector (IOBD1) on the I/O board and close the latch.
3. Adhere the I/O-board cable to the palm-rest and keyboard assembly.
Next steps
1. Install the system board.
NOTE: The system board can be installed with the heat sink pre-attached.
2. Install the wireless card.
3. Install the graphics procesing unit fan.
4. Install the processor fan.
5. Install the base cover.
6. Follow the procedure in After working inside your computer.
Power button
Removing the power button
CAUTION: The information in this section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in Before working inside your computer.
NOTE:
Ensure that your computer is in Service Mode. For more information, see step 6 in Before working inside your
computer.
2. Remove the base cover.
3. Remove the heat sink.
4. Remove the I/O board.
Removing and installing Field Replaceable Units (FRUs)
73
