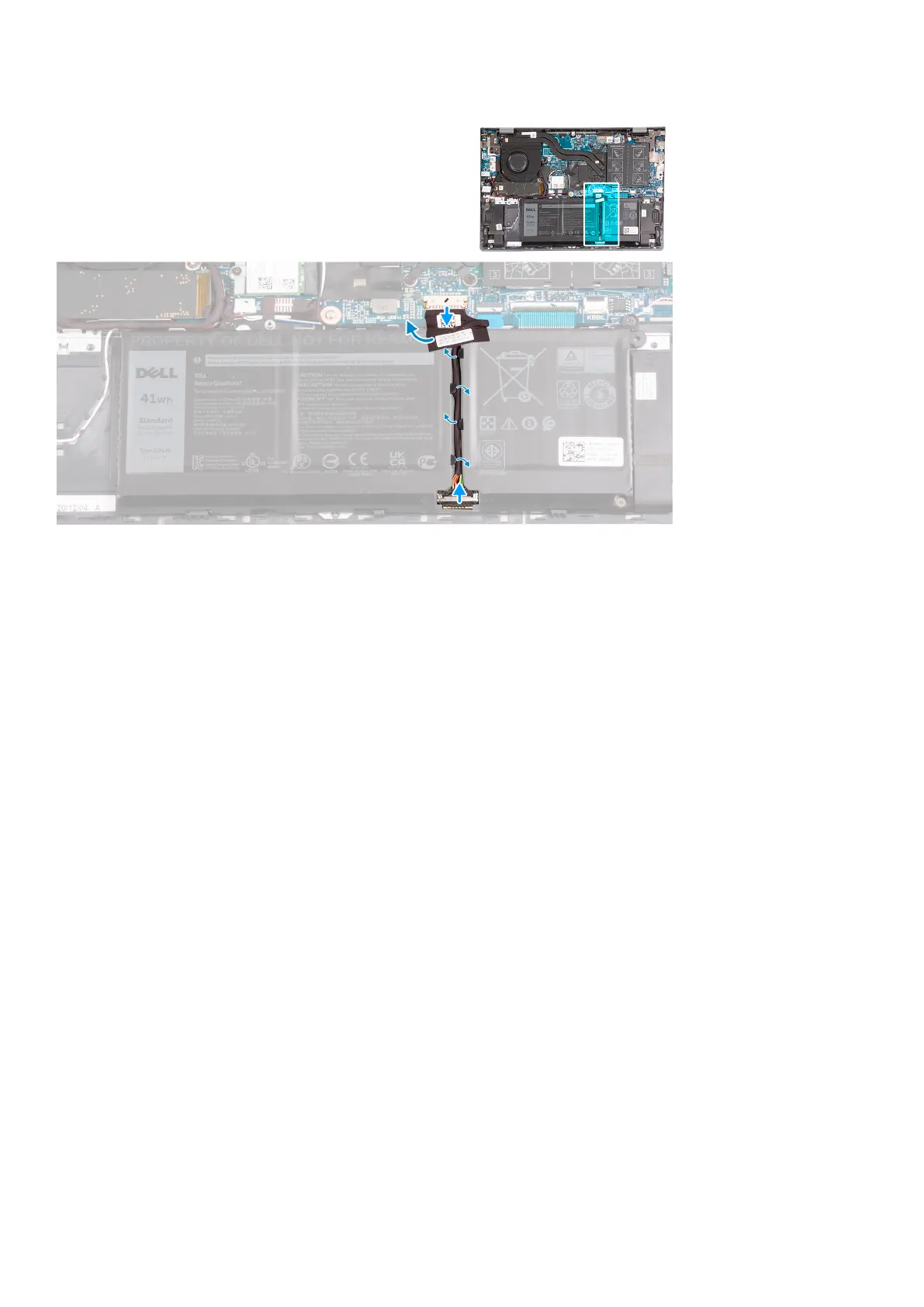

Steps
1. Peel the tape that secures the battery cable to the 3-cell battery.
2. Disconnect the battery cable from the system board.
3. Remove the battery cable from the routing guides on the 3-cell battery.
4. Disconnect the battery cable from the 3-cell battery.
5. Lift the battery cable off the 3-cell battery.
Installing the 3-cell battery cable
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image(s) indicate the location of the 3-cell battery cable and provides a visual representation of the installation
procedure.
16
Removing and installing components
