About this task

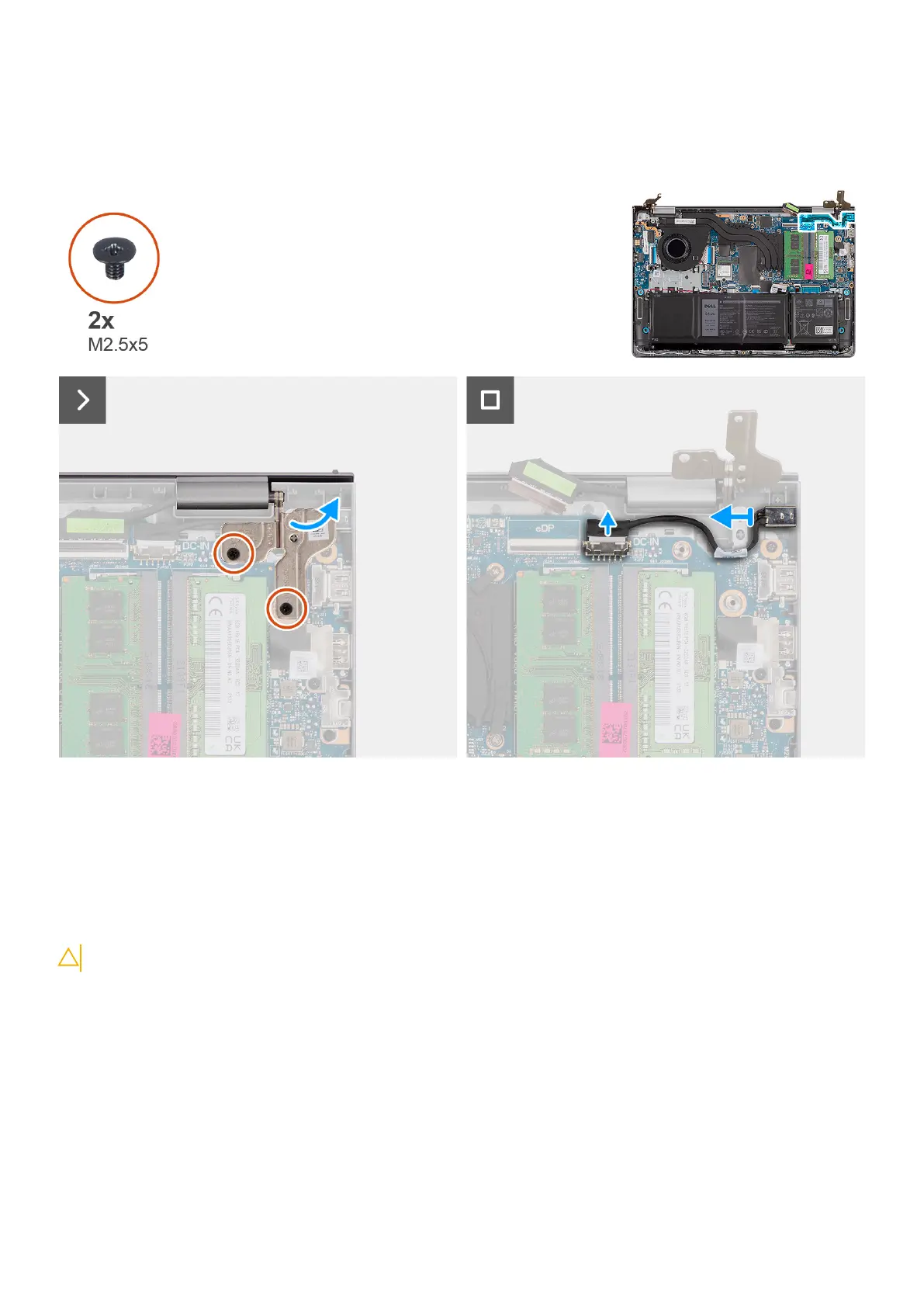

The following images indicate the location of the power-adapter port and provide a visual representation of the removal
procedure.
Steps
1. Remove the two (M2.5x5) screws that secure the right hinge to the palm-rest and keyboard assembly.
2. Disconnect the power-adapter cable from the connector on the system board.
3. Lift the power-adapter port from its slot on the palm-rest and keyboard assembly.
Installing the power-adapter port
CAUTION: The information in this section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following images indicate the location of the power-adapter port and provide a visual representation of the installation
procedure.
Removing and installing Field Replaceable Units (FRUs)
77
