Replacing the display cable
WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the
steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside
your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Identifier GUID-D0FEE68C-6D4E-477C-B1F8-00D31B8A3B8D
Status Released
Procedure

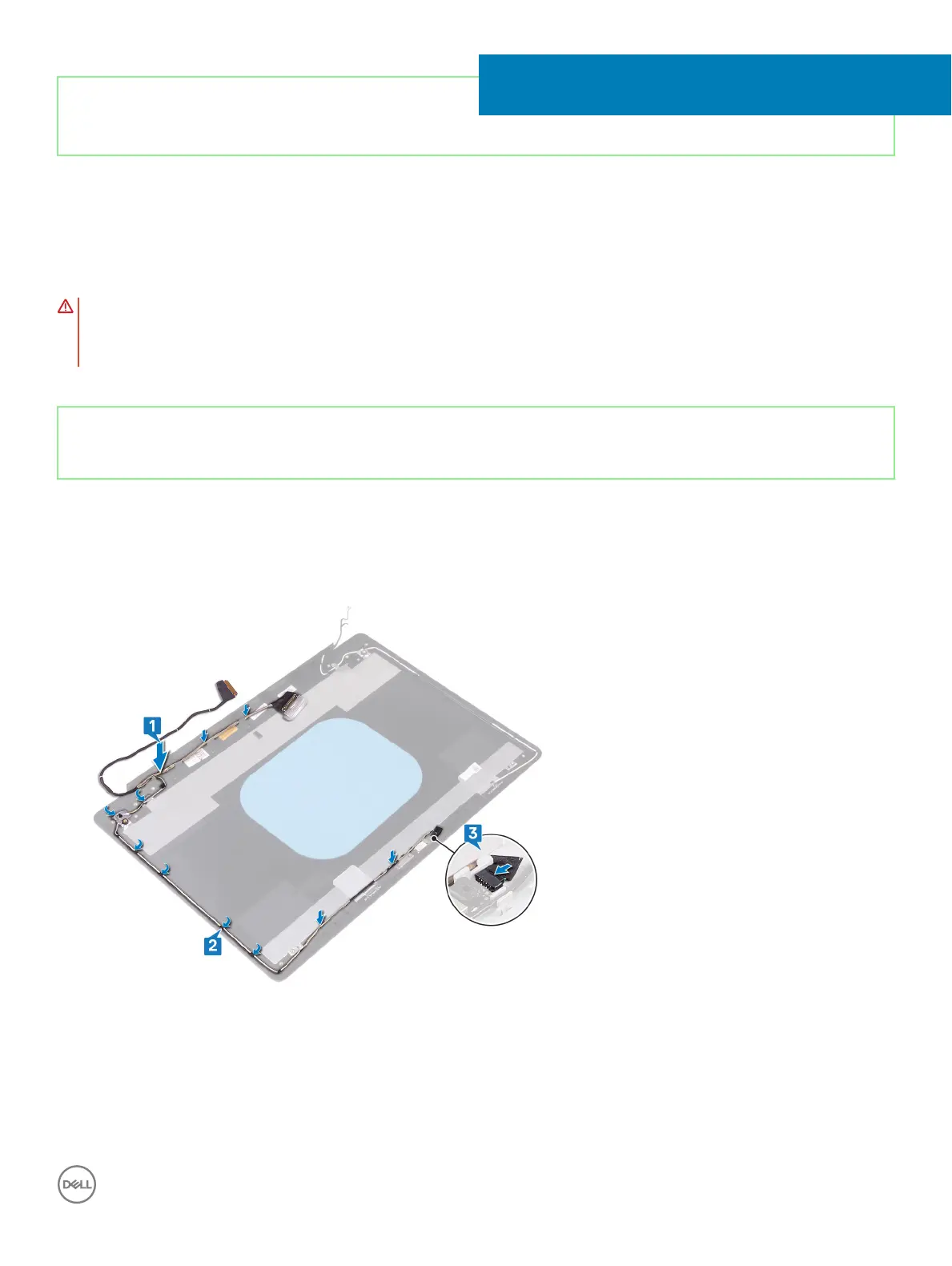

1 Route the display cable on the display back-cover and antenna assembly.
2 Route the camera cable through the routing guides on the display back-cover and antenna assembly.
3 Slide the camera cable into the connector on the camera module to secure the cable.
50
Replacing the display cable 105
