Dell P80F User Manual

6. Remove the memory module.
7. Remove the system fan.
8. Remove the DC-in .
9. Remove the WLAN card.
10. Remove the system board.
NOTE: System board can be removed with heatsink attached.
11. Remove the coin cell battery.
12. Remove the keyboard.
Steps

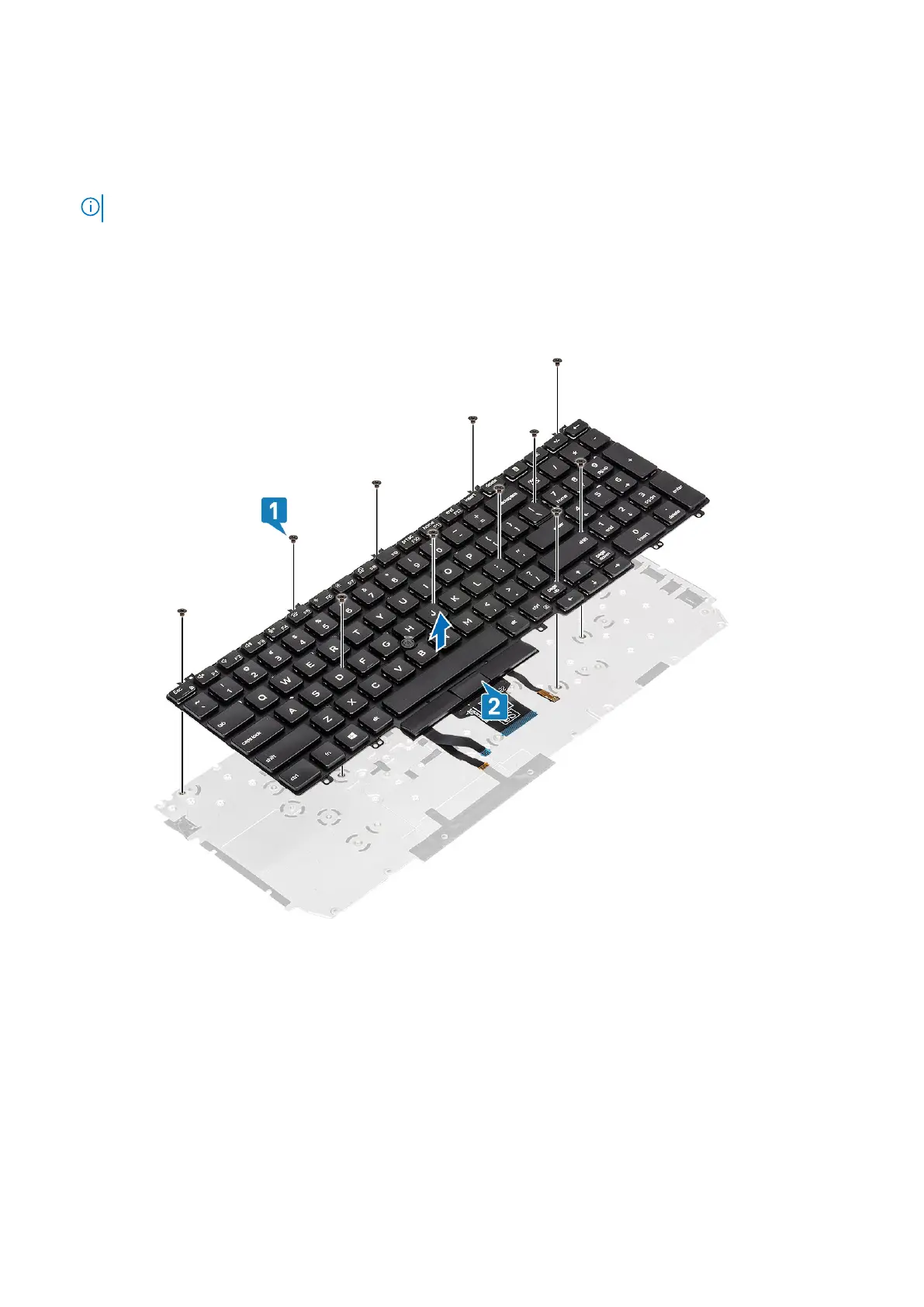

1. Remove the twelve (M2x2) screws that secure the keyboard to the keyboard bracket [1].
2. Remove the keyboard from the keyboard bracket [2].
Installing the keyboard bracket
Steps
1. Align and place the keyboard on the keyboard bracket [1].
2. Replace the 12 (M2x2) screws to secure the keyboard on the keyboard bracket [2].
80
Disassembly and reassembly

Dell P80F Specifications

General

Category	Laptop
Model	P80F
Display	1920 x 1080
Graphics	Intel UHD Graphics 620
Operating System	Windows 10
Battery	3-Cell
Ports	HDMI, SD card reader, headphone/microphone combo jack
