Steps

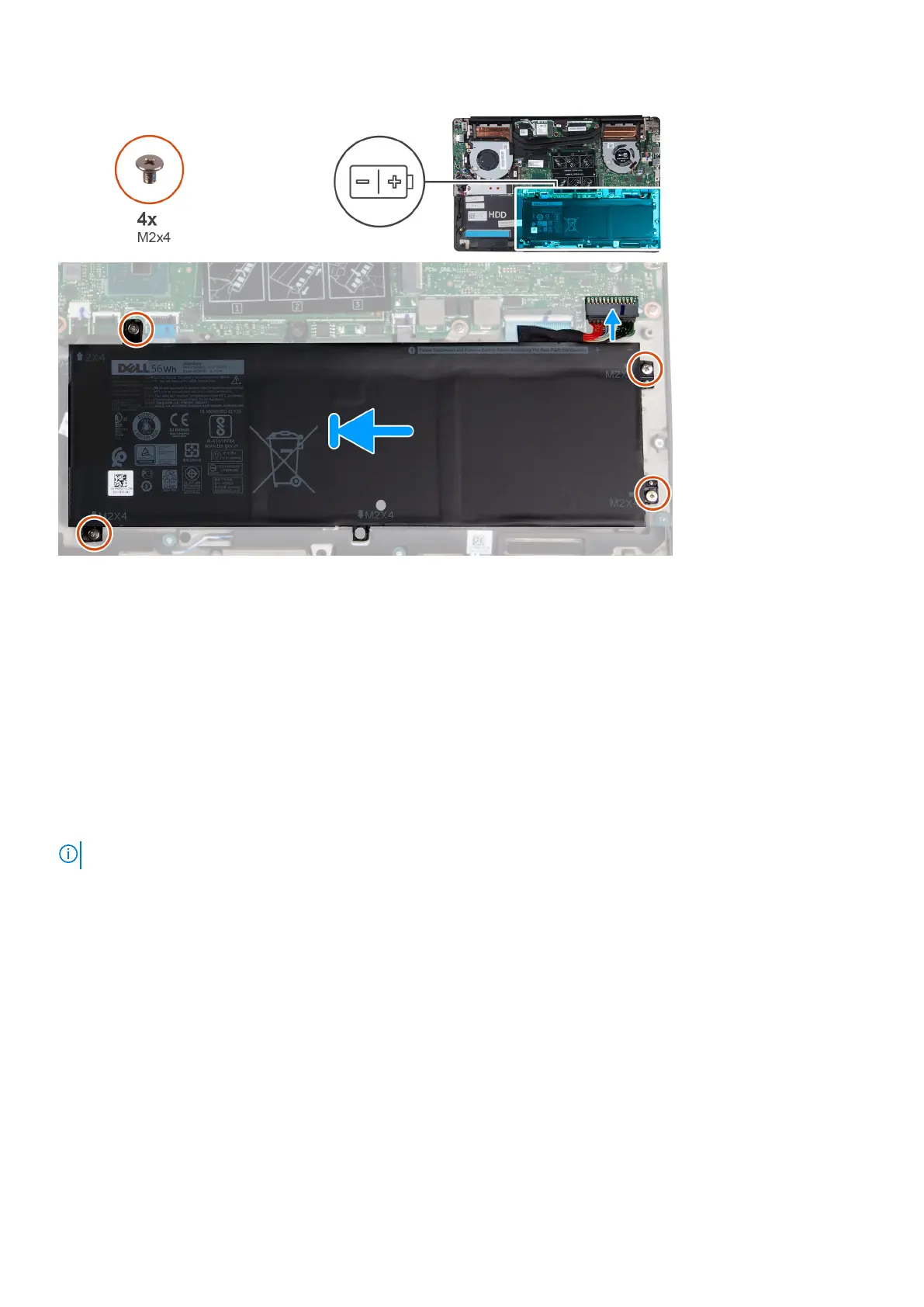

1. Place the battery on the palm-rest and keyboard assembly and align the screw holes on the battery with the screw holes on
the palm-rest and keyboard assembly.
2. Install the four screws (M2x4) that secure the battery to the system board and palm-rest and keyboard assembly.
3. Connect the battery cable to the system board.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Removing the 6-cell battery
NOTE: The battery type in your computer varies depending on the configuration ordered.
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
The figure indicates the location of the battery and provides a visual representation of the removal procedure.
16
Removing and installing components
