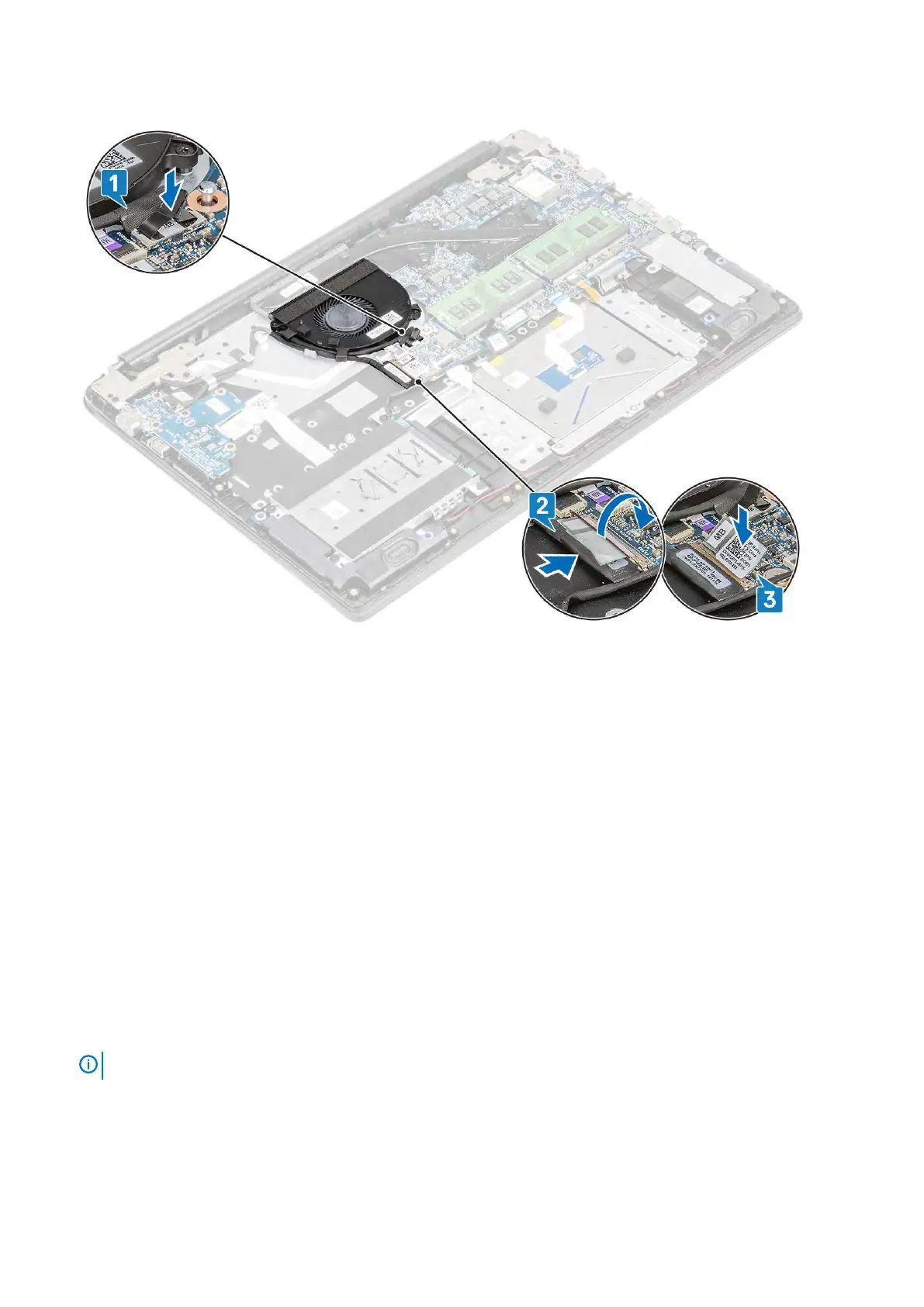

5. Connect the VGA board cable [1], and the display cable [2, 3] to the system board.
Next steps
1. Replace the battery.
2. Replace the
base cover.
3. Replace the SD memory card
.
4. Follow the procedure in after working inside your computer.
Heat sink
Removing the heatsink—UMA
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the SD memory card
.
3. Remove the base cover.
4. Remove the battery
.
Steps
1. Loosen the four captive screws that secure the heatsink to the system board [1].
NOTE: Loosen the screws in the order of the callout numbers [1, 2, 3, 4] as indicated on the heatsink.
2. Lift the heatsink off the system board [2].
Removing and installing components 63
