Steps
1. Peel the tape that secures the display cable connector to the system board.
2. Open the latch and disconnect the display cable from the system board.
3. Remove the four (M2.5x2.5 (Big head)) screws and two (M2x3) screws that secure the left and right display hinges to the
chassis of your computer.
4. Open the display hinges at an angle of 90 degrees.
5. Gently slide and lift the palmrest assembly off the display assembly.
Installing the display assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

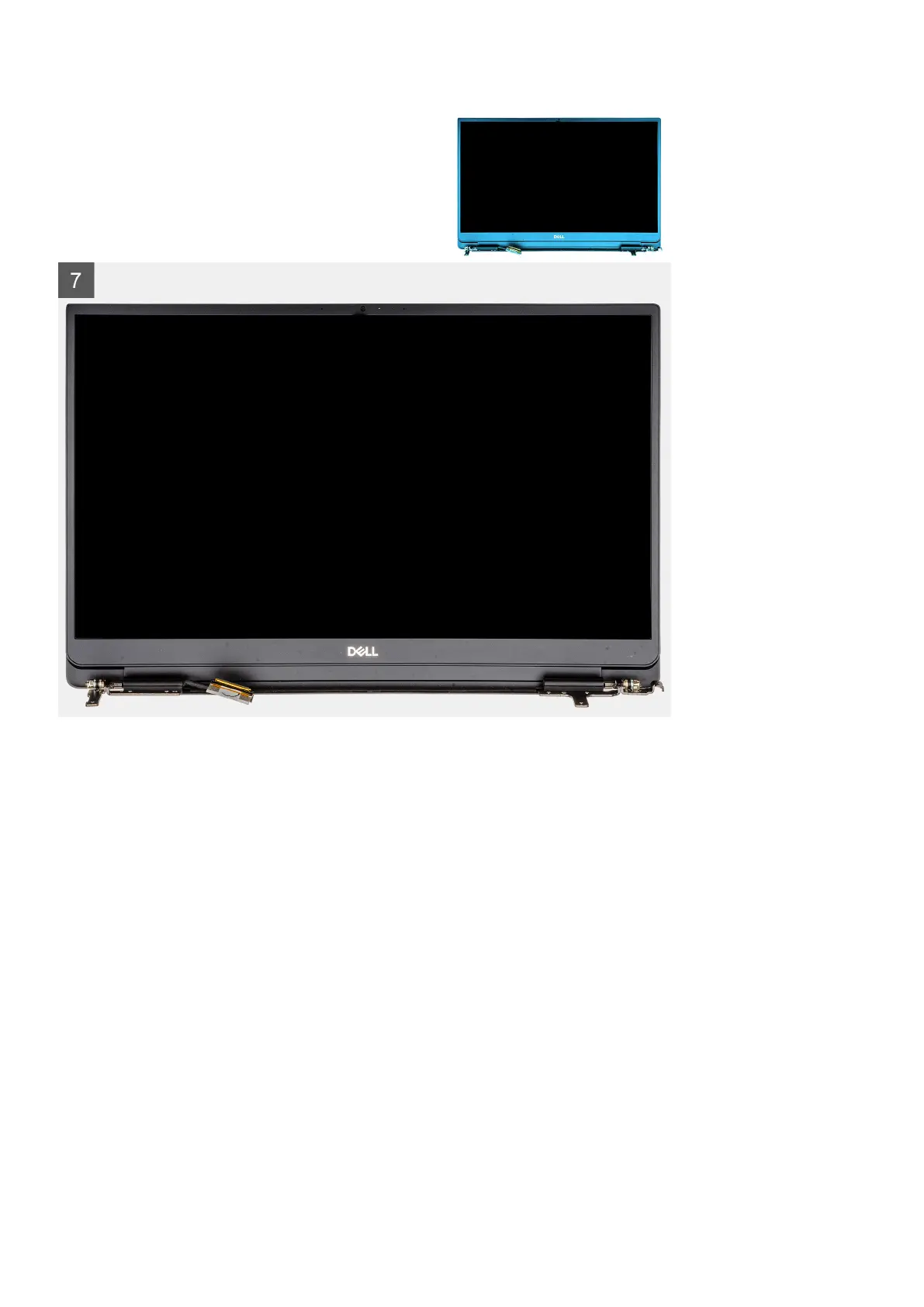

The figure indicates the location of the component and provides a visual representation of the installation procedure.
Removing and installing components
59
