Management: Installing Array Components 259

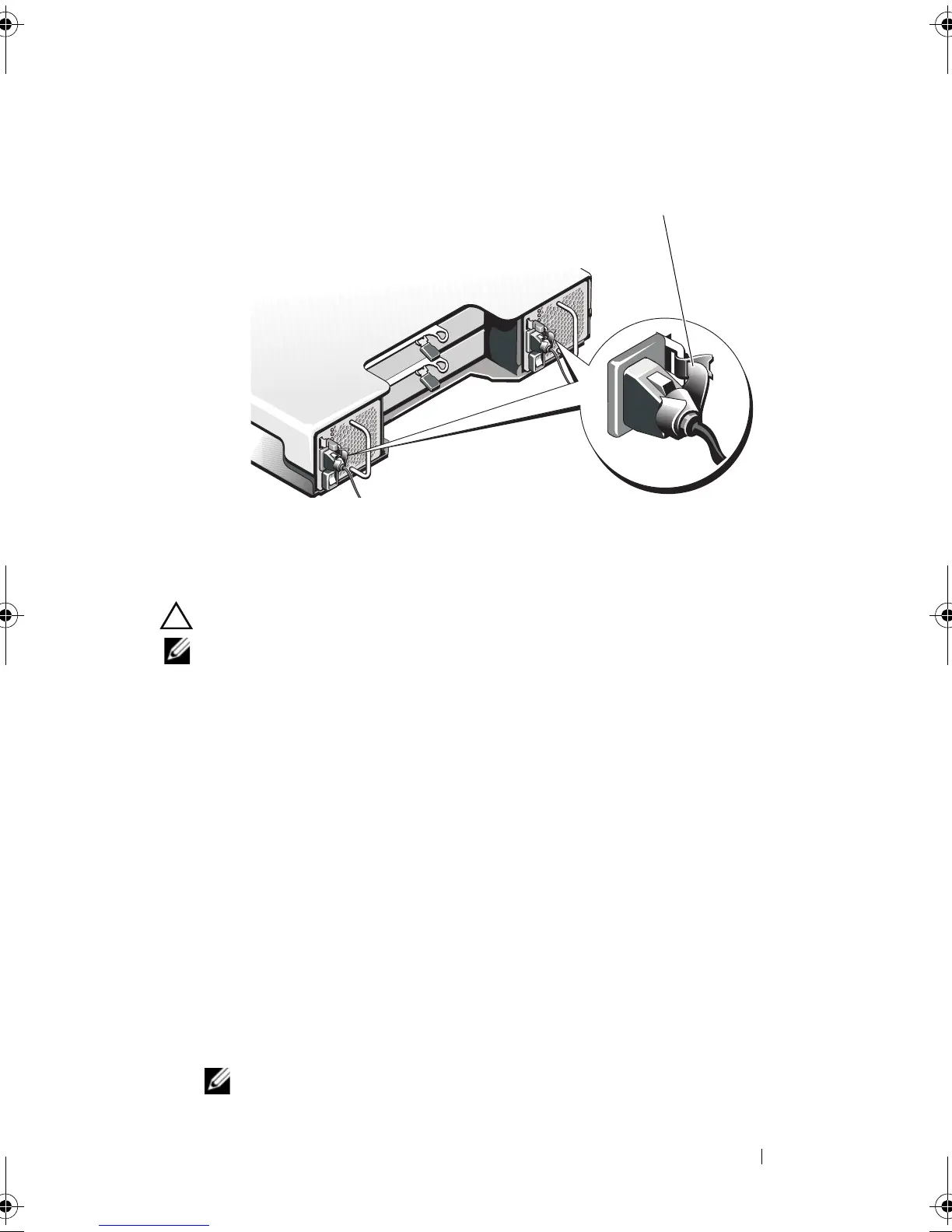

Figure 16-12. Securing the Power Cable
CAUTION: When connecting the power cable, secure the cable with the velcro strap.
NOTE: If the array is powered on, all the power supply LEDs remain off until the AC
power cable is connected to the power supply/cooling fan module and the power
switch is turned on.
4 Turn on the power supply/cooling fan module.
Control Panel
Removing the Control Panel
1 Turn off the array and host server.
2 Disconnect all the power cables connected to the array.
3 Remove the hard drives from:
– slots 0 to 2 in
PowerVault MD3600f
– slots 0 to 5 in
PowerVault MD3620f
See "Removing a Hard Drive" on page 244.
NOTE: Mark each hard drive with it’s slot position as you remove it.
1 restraining strap
1
book.book Page 259 Friday, September 23, 2011 2:46 PM

Dell POWERVAULT MD3600F Specifications

General

HDD speed	15000 RPM
RAID levels	0, 1, 5, 6, 10
Data transfer rate	8 Gbit/s
Storage drive size	3.5 \
Storage drive capacity	600 GB
Storage drive interface	Serial Attached SCSI (SAS)
Storage drives installed	Yes
Installed storage drive type	HDD
Supported storage drive types	HDD & SSD
Total installed storage capacity	3.6 TB
Maximum supported storage capacity	36 TB
Number of storage drives installed	6
Number of storage drives supported	12
Chassis type	-
Product color	Gray
LED indicators	Power, Status
AC input voltage	90-264 V
AC input frequency	47/63 Hz
Number of power supply units	1
Power supply unit (PSU) capacity	600 W
Operating altitude	-16 - 3048 m
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	561 mm
Width	446.3 mm
Height	86.8 mm
Weight	29300 g
