Dell PowerVault MD3800f User Manual

• Pushing the release tab toward the front of the array in PowerVault MD3800f.
• Pulling the release pin toward the front of the array in PowerVault MD3820f.

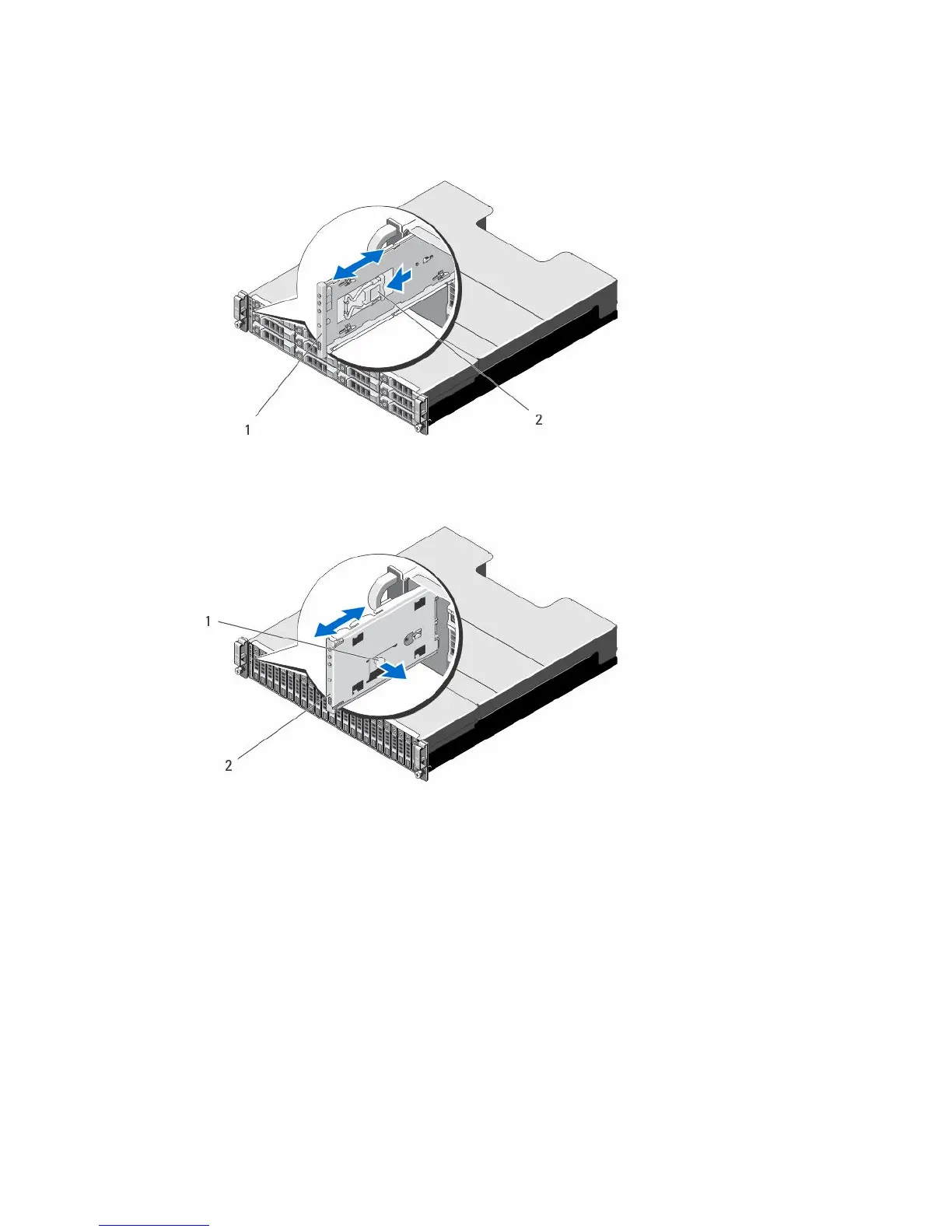

Figure 22. Removing and Installing the Control Panel—PowerVault MD3800f
1. control panel 2. release tab
Figure 23. Removing and Installing the Control Panel—PowerVault MD3820f
1. release pin 2. control panel
Installing the Control Panel
1. Align the control panel with the slot on the array.
2. Slide the control panel into the array until:
• The release tab clicks into place in PowerVault MD3800f .
• The release pin clicks into place in PowerVault MD3820f .
3. Replace the hard drives in their respective slots.
4. Connect all the power cables to the array.
31
