Dell Precision Mobile Workstation M4800 User Manual

d. keyboard trim
e. keyboard
f. optical drive
g. hard drive
h. palm rest
3. Disconnect the :
a. ExpressCard cable from the system board
b. USH board cable from the USH board

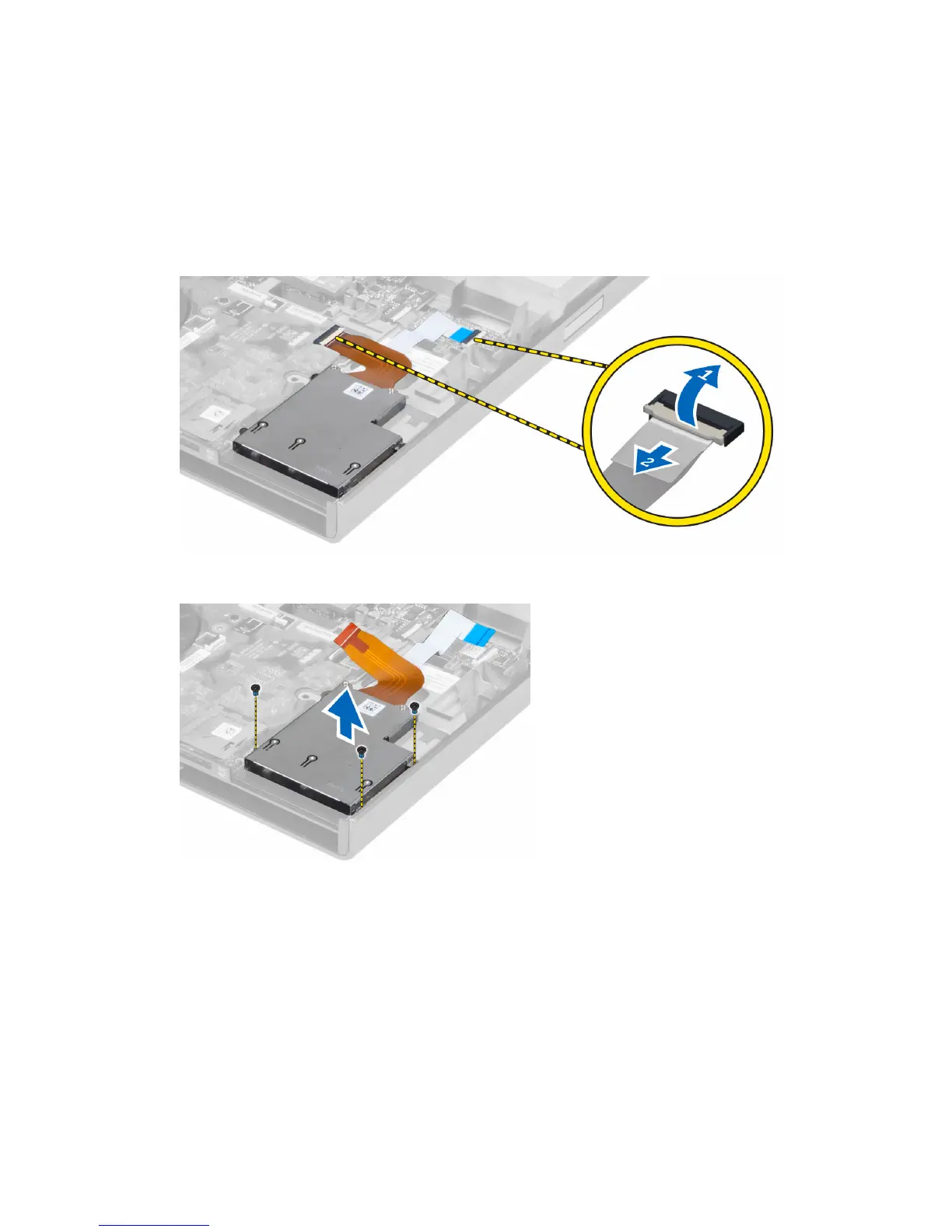

4. Remove the screws that secure the ExpressCard module to the computer and remove the
ExpressCard module.
Installing the ExpressCard Module
1. Insert the ExpressCard module into its compartment.
2. Tighten the screws to secure the ExpressCard module to the computer.
3. Connect the:
a. ExpressCard cable to the system board
b. USH board cable to the USH board
4. Install the:
32

Dell Precision Mobile Workstation M4800 Specifications

General

Screen Size	15.6 inches
Graphics	NVIDIA Quadro K2100M
Display	15.6" FHD (1920x1080)
Memory	Up to 32GB DDR3L at 1600MHz
Storage	Up to 512GB SSD
Operating System	Windows 7 Professional, Windows 8.1 Pro
Weight	Starting at 2.88 kg
CPU	Intel Core i7-4800MQ (2.7GHz, up to 3.7GHz, 6MB cache)
GPU	NVIDIA Quadro K1100M, K2100M; AMD FirePro M5100
Ports	4 x USB 3.0, HDMI, VGA, RJ-45, headphone/microphone combo
Wireless	Intel Dual Band Wireless-AC 7260, Bluetooth 4.0
Battery	9-cell (97Whr) lithium-ion
Security	Smart card reader, fingerprint reader
Optical Drive	DVD-ROM, DVD+/-RW
Processor	4th Generation Intel Core i5 and Core i7 Processor Options
