Dell U2722D Disassembly Procedure

2
DELL U2722D/DX
S14
S10

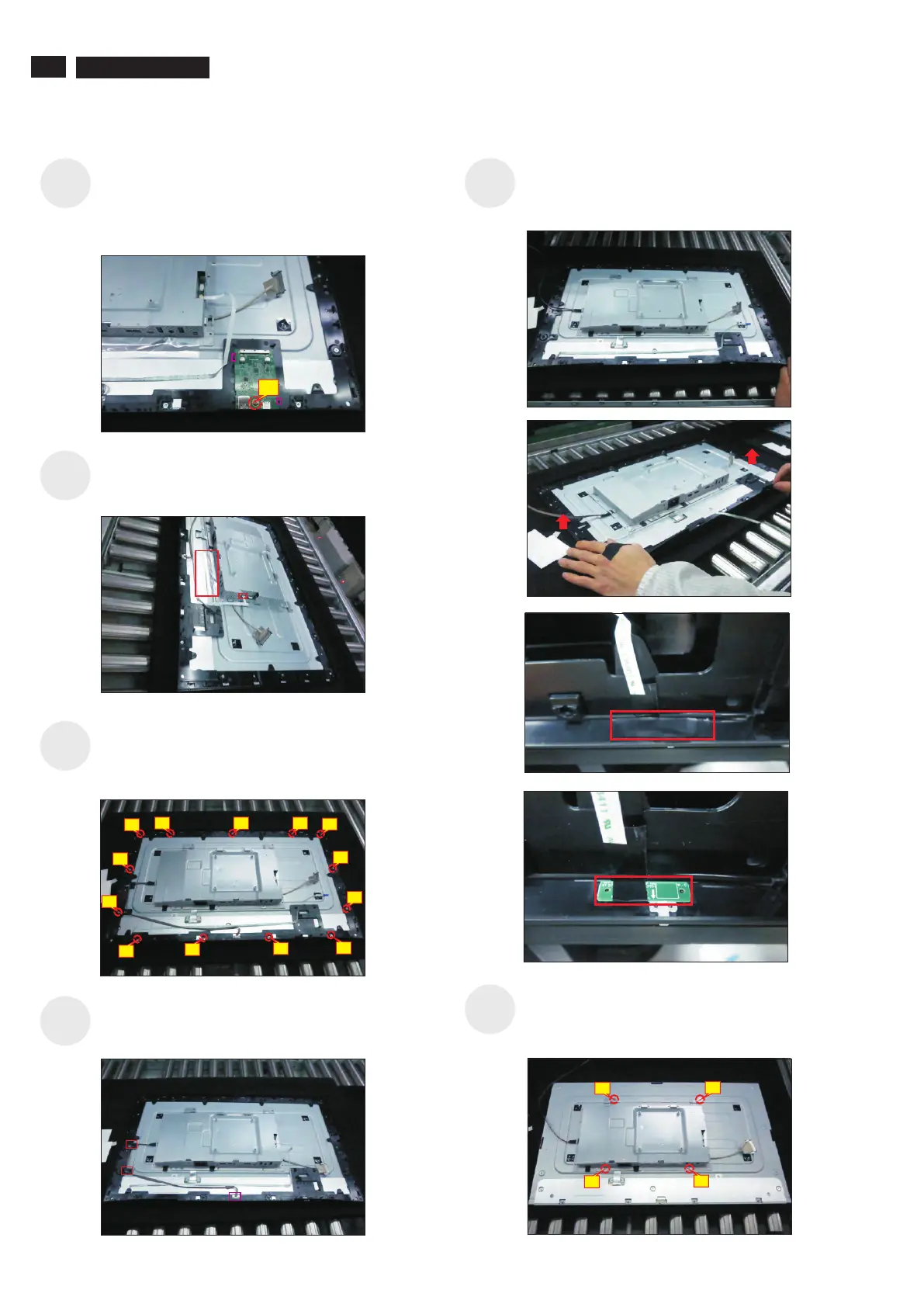

Use a Philips-head screwdriver to release one screw
for unlocking the USB board, then release the USB
board from the hooks of the middle bezel and then
remove the USB board unit.
(No.1screw size=M3x6, Torque=4±0.5kgfxcm)
S11
S9
1
Tear off 1pcs aluminum foil for unfixing the bracket,
and then disconnect the LED cable from the
connector of the interface board.
Use a Philips-head screwdriver to remove 13pcs
screws for unlocking the middle bezel with the panel
module.
(No.1~13 screw size=M3x5, Torque=5±0.5kgfxcm)
3
11
10
13
12
8
2
9
4
5
7
61
Disconnect the panel lamp from the connector of the
panel, then release the panel lamp cable from the
hooks of the middle bezel.
S12
Tear off the tape on the back of panel module for
releasing the LED cable, then
middle bezel, and put it on a cushion foam, and then
tear off the mylar tape for releasing the LED board.
lift up and take away the
S13
U
.
se a Philips-head screwdriver to remove 4pcs
screws for unlocking the bracket chassis module
with the panel
(No.1~4 Screw size= M3x5, Torque=5±0.5kgfxcm)
4
1
1
1
