Steps

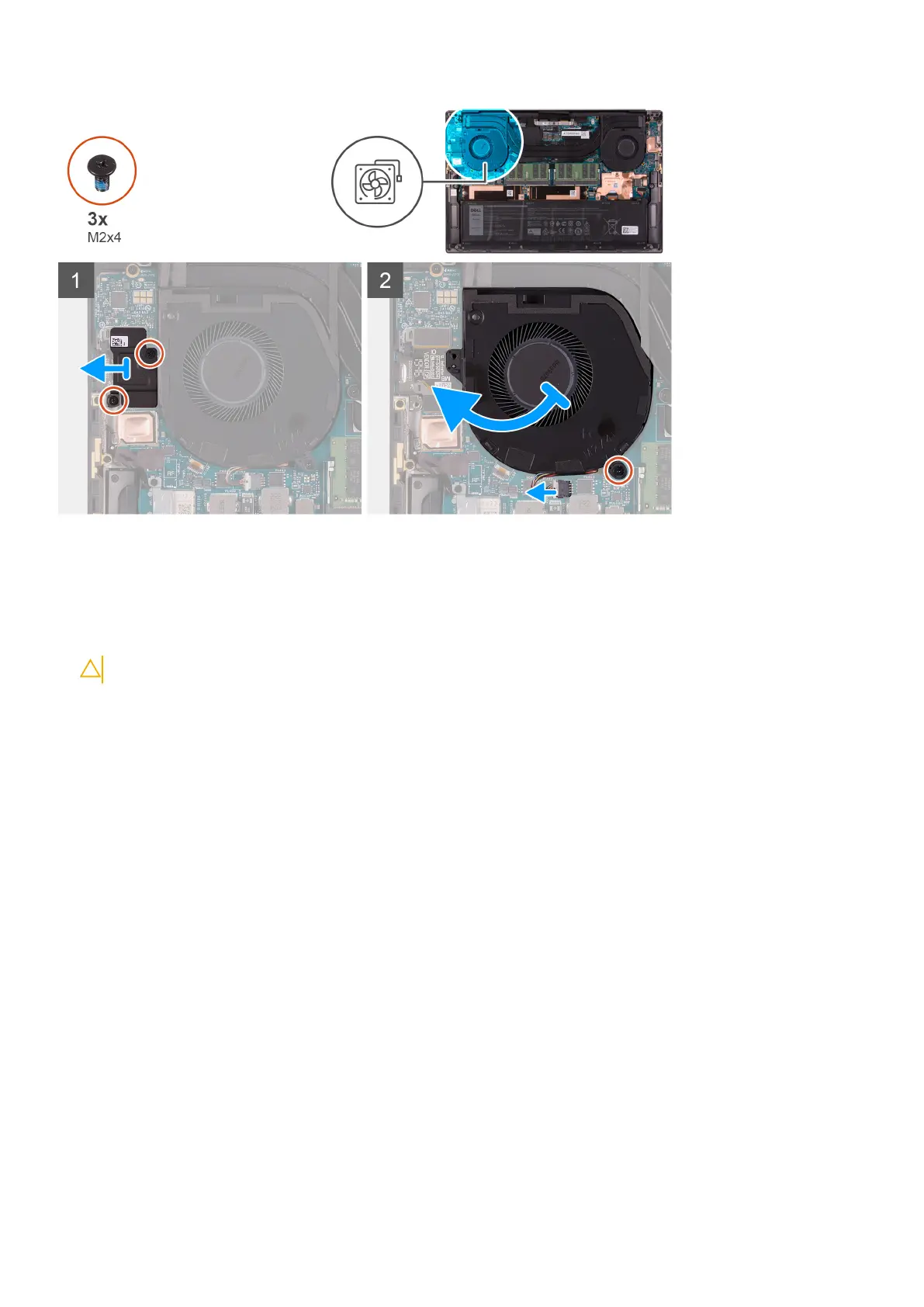

1. Remove the two screws (M2x4) that secure the I/O-board shield to the fan and palm-rest and keyboard assembly.
2. Lift the I/O-board shield off the system board.
3. Remove the screw (M2x4) that secures the fan to the system board.
4. Disconnect the fan cable from the system board.
CAUTION: Do not hold the fan assembly at the center, as it may damage the center bearing.
5. Slide the fan out of the heat sink and lift the fan off the palm-rest and keyboard assembly.
Installing the right fan
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the right fan and provide a visual representation of the installation procedure.
28
Removing and installing components

Dell XPS 15 9510 Specifications

General

Processor	11th Gen Intel Core i5-11400H, i7-11800H, or i9-11900H
Wireless	Killer Wi-Fi 6 AX1650 (2x2) and Bluetooth 5.1
Graphics	NVIDIA GeForce RTX 3050 Ti
Display	15.6-inch FHD+ (1920 x 1200) InfinityEdge Non-Touch Anti-Glare 500-Nit Display
Memory	8GB, 16GB, 32GB, or 64GB DDR4
Storage	256GB, 512GB, 1TB, or 2TB PCIe NVMe SSD
Operating System	Windows 10 Home
Battery	56Whr or 86Whr
Weight	4.31 lbs (1.96 kg)
Ports	2 x Thunderbolt 4, 1 x USB-C 3.2, 1 x 3.5mm audio jack, 1 x SD card reader
Camera	720p HD webcam
Audio	Stereo speakers with Waves MaxxAudio Pro
Dimensions	13.57 x 9.06 x 0.71 inches
