Processor Module: Dell XPS M1710 Service Manual
file:///C|/Users/santhosh_v.ASIA-PACIFIC/Desktop/Hawke/New%20folder/cpu.htm[2/21/2014 11:23:31 AM]

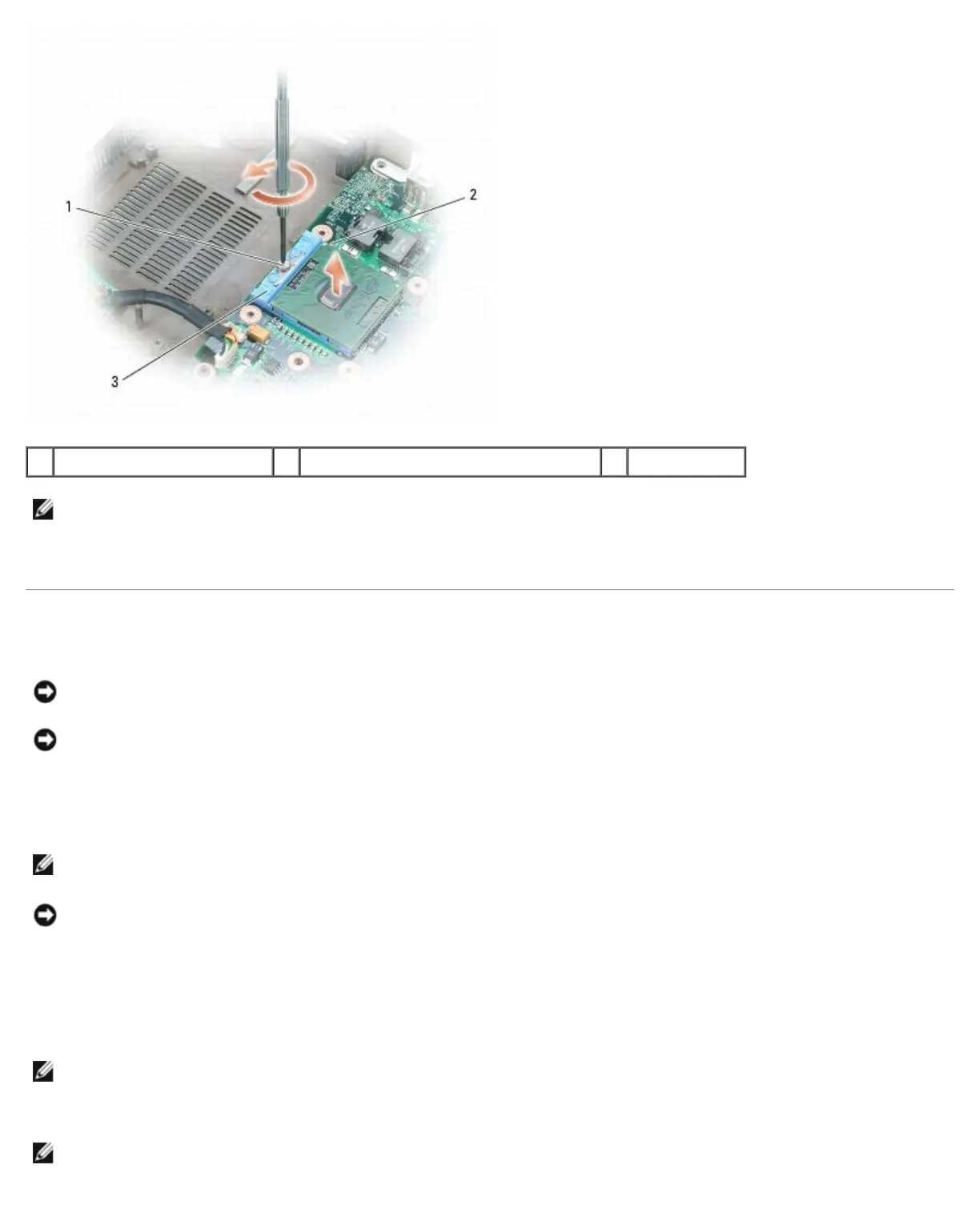

1 ZIF-socket cam screw 2 pin-1 corner of microprocessor 3 ZIF-socket
NOTE: The ZIF-socket cam screw secures the processor to the system board.
8. Lift the processor module from the ZIF socket.
Replacing the Processor Module
NOTICE: Ensure that the cam lock is in the fully open position before seating the processor module. Seating the
processor module properly in the ZIF socket does not require force.
NOTICE: A processor module that is not properly seated can result in an intermittent connection or permanent
damage to the processor and ZIF socket.
1. Align the pin-1 corner of the processor module with the pin-1 corner of the ZIF socket, and insert the processor
module.
NOTE: The pin-1 corner of the processor module has a triangle that aligns with the triangle on the pin-1 corner of the
ZIF socket.
NOTICE: You must position the processor module correctly in the ZIF socket to avoid permanent damage to the
module and the socket.
When the processor module is correctly seated, all four corners are aligned at the same height. If one or more corners
of the module are higher than the others, the module is not seated correctly.
2. Tighten the ZIF socket by turning the cam screw clockwise to secure the processor module to the system board.
NOTE: When you replace the processor thermal-cooling assembly, be sure to place a new thermal pad on the thermal-
cooling assembly such that the pad fits between the assembly and the processor. You can place the new thermal pad
directly on any existing thermal pad already installed on the thermal-cooling assembly. It is not necessary to remove an
existing pad or to clean the surface.
NOTE: When replacing the processor thermal-cooling assembly, hold up the mylar flap on the assembly so that the flap
rests on top of the fan when the processor thermal-cooling assembly is in place.
