1. DESCRIPTION
1.1 Description of appliance - A
A1. Beans container
A2. Beans container lid
A3. Cup tray
A4. Steam dial
A5. Steam wand and nozzle
A6. Lattecrema System connection
A7. Coee outlet
A8. Cup grille for espresso
A9. Cup grille for glasses or mugs
A10. Drip tray grille
A11. Drip tray
A12. Drip tray water level indicator
A13. Water tank lid
A14. Water tank extraction handle
A15. Water tank
A16. Power cord connector socket
A17. Main switch (ON/OFF)
A18. Coee mill outlet (tamping station)
A19. Cover to access the coee mill coee guide
A20. Presser lever
1.2 Description of control panel - B
B1. ON/Standby button
B2. Coee dose dial
B3. “X2” button: to use the 2 coees lter
B4. Coee Temperature button
B5. “Acive Rinse” button
B6. “OK” button: to deliver the beverage/conrm
B7. Hot water button
B8. “Descaling” button
B9. “My” button: to customise beverage quantity
B10. Beverage selector dial
B11. Beverage selected light:
Espresso based beverages
• Espresso
• Americano
• Coee
Milk based beverages
• Cappuccino
• Flat White
• Latte
B12. “Milk clean” light
B13. “No beans container” light
B14. “General alarm” light
B15. Pressure gauge
B16. “No water” light
B17. Beans container empty light
B18. “Energy saving” light
B19. Led module process:
• Indicates the operation the appliance is running
• The setting of the dose level
• The infusion temperature setting
1.3 Description of accessories - C
C1. Portalter
C2. 1-cup coee lter
C3. 2-cups coee lter
C4. “Water hardness test “ indicator paper
C5. Descaler
C6. Descaling accessory
C7. Removable power cord
C8. Tube brush
C9. Coee outlet cleaning disk accessory
C10. Cloth

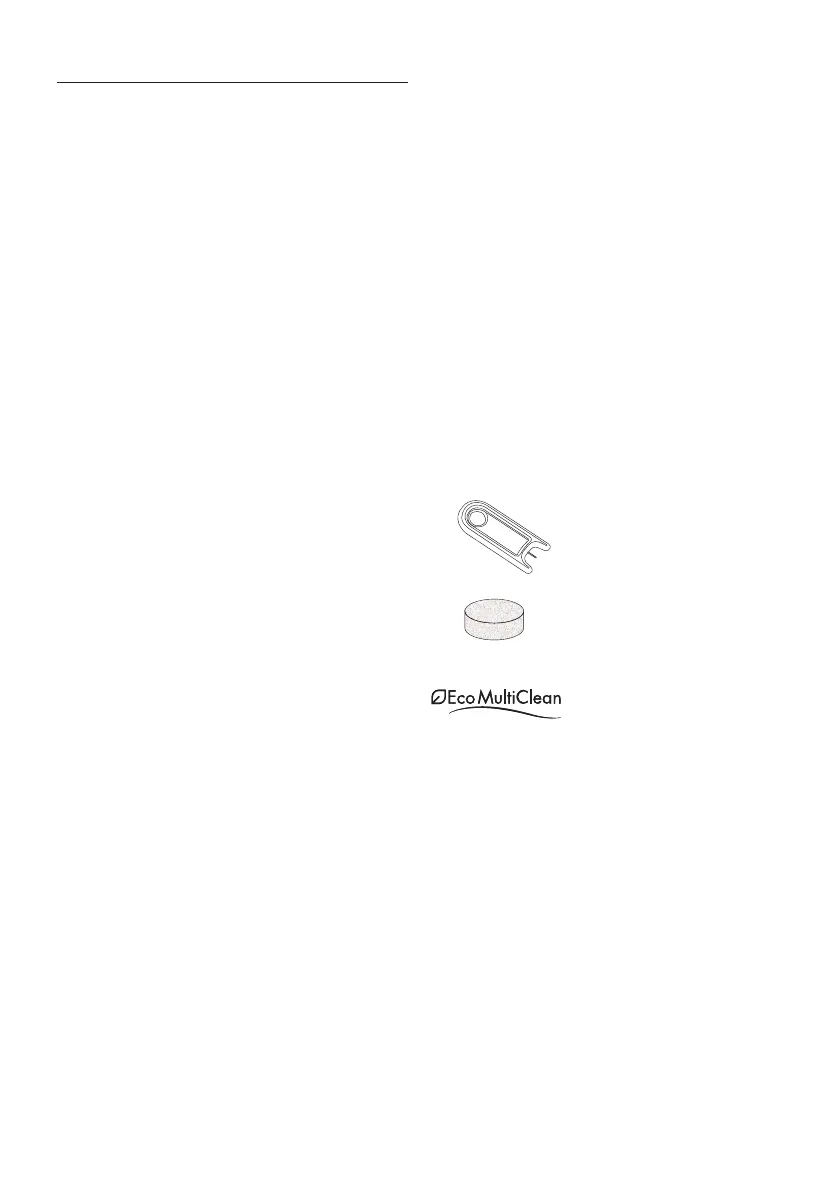

1.4 Recommended optional cleaning accessories
Visit Delonghi.com for more information.
Cleaning needle for steam nozzle
(See “Cleaning the steam wand” on
page 9)
Cleaning tab
(see “8.1 Cleaning of the coee outlet”)
Cleaner
EAN: 8004399333307
1.5 Description of LatteCrema System - D
D1. Milk container lid
D2. Milk container connector
D3. Lid release button
D4. Milk spout (adjustable height)
D5. Froth selection knob
D6. Knob housing
D7. Milk intake tube
D8. Milk container
