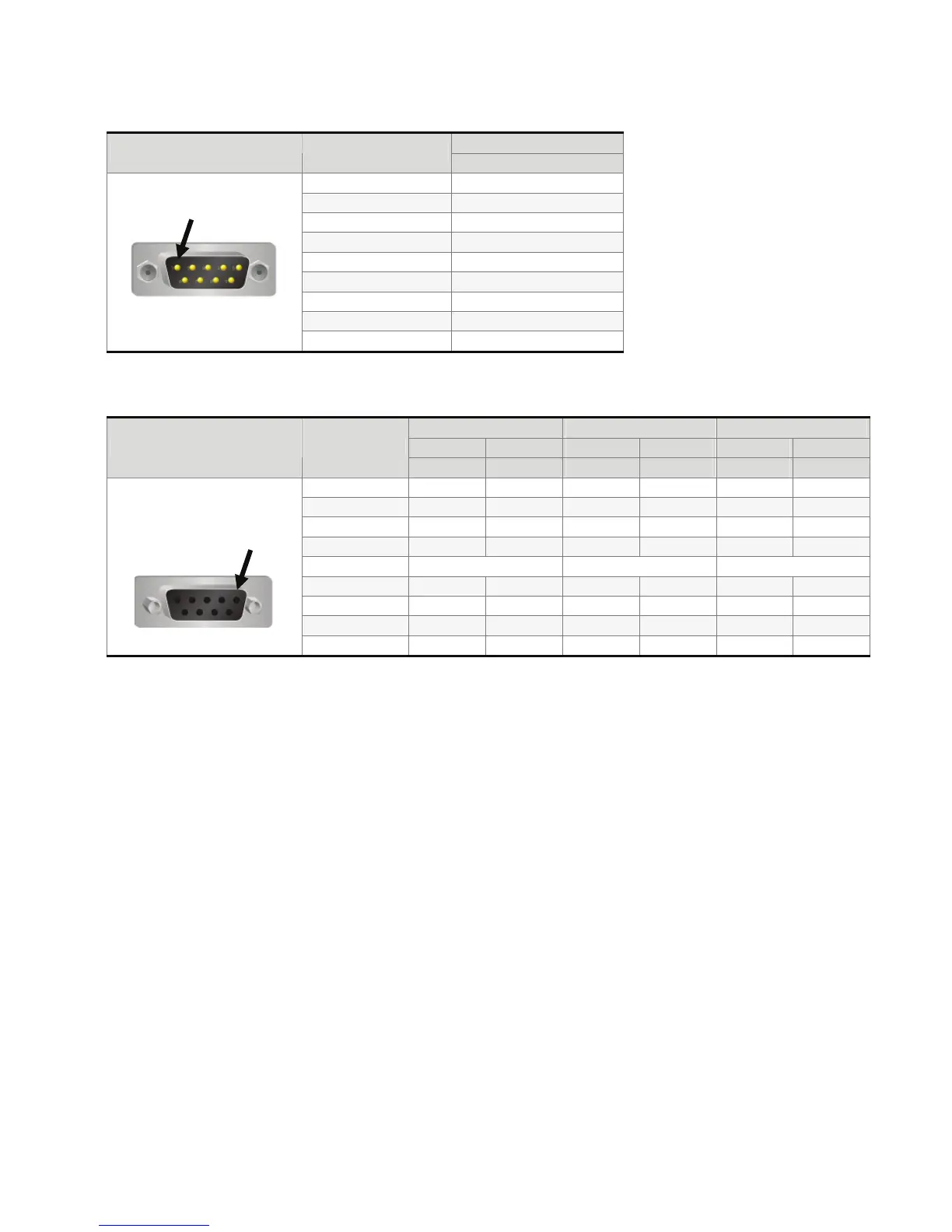

DOP-B05 Series

COM1 Port (Supports Flow Control)

Contact

COM Port PIN

RS-232

2 RXD

3 TXD

5 GND

7 RTS

8 CTS

Note: Blank = No Connection.

COM2 and COM3 Port

MODE1 MODE2 MODE3

COM2 COM3 COM2 COM3 COM2 COM3

COM Port PIN

RS-232 RS-485 RS-485 RS-485 RS-232 RS-422

1 D+ TXD+

2 RXD RXD

3 TXD TXD

4 D+ D+ RXD+

5 GND GND GND

6 D- TXD-

9 D- D- RXD-

Note: Blank = No Connection.

PIN1
