6
Fig. 7
Fig. 8
Fig. 9
Fig. 10

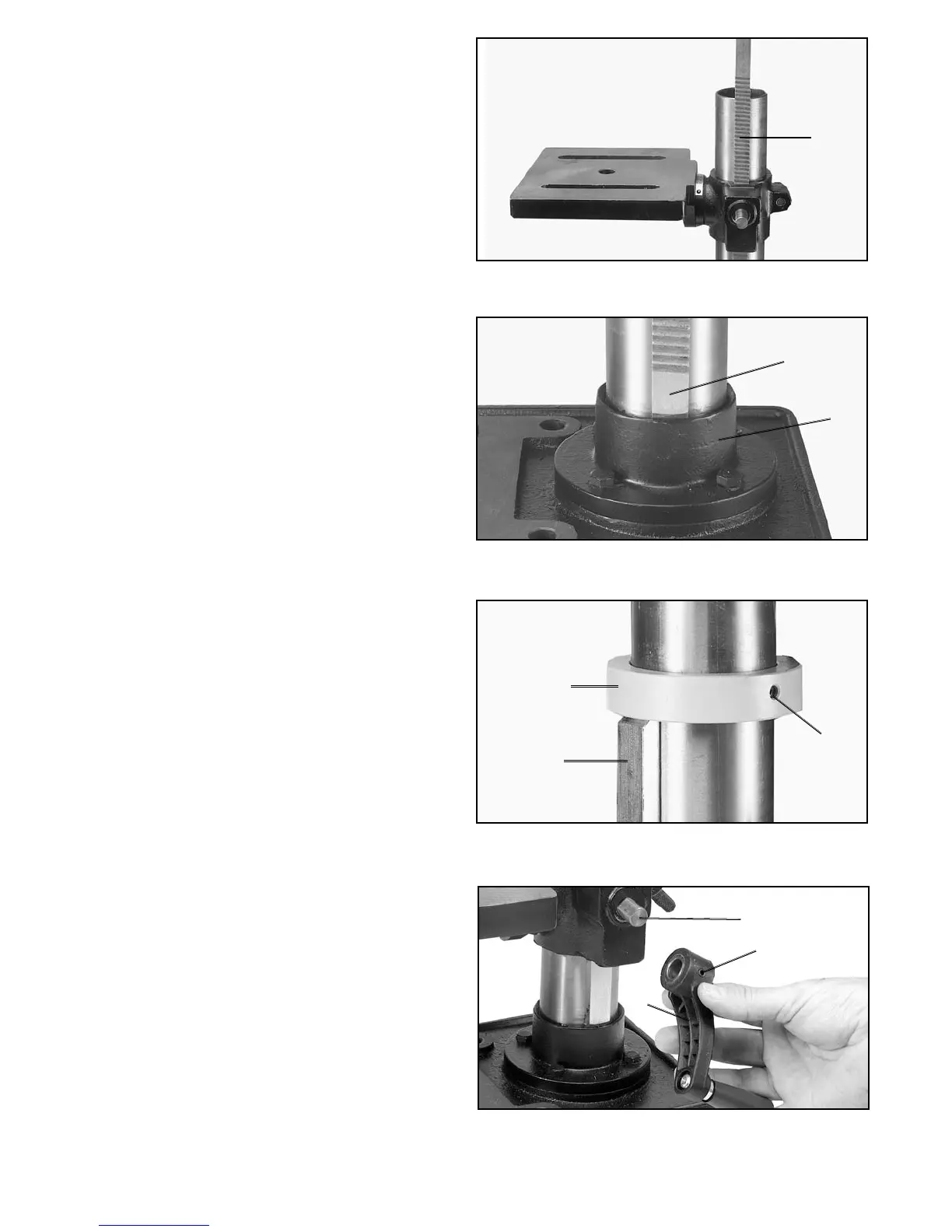

4. Slide raising rack (F) Fig. 7, table and table bracket
onto drill press column, as shown. Make sure bottom of
raising rack (F) Fig. 8, is engaged with flange (J) on drill
press base.
5. Re-assemble ring (E) Fig. 9, which was removed in
STEP 1. IMPORTANT: Bottom of ring (E) MUST NOT be
pushed all the way down onto top of raising rack (F).
MAKE SURE top of raising rack (F) is under bottom of
ring (E) and that there is enough clearance to allow rack
(F) to rotate around the column. THEN TIGHTEN SET
SCREW (D) BEING CAREFUL NOT TO
OVERTIGHTEN.
6. Assemble table raising and lowering handle (K) Fig.
10, to worm gear shaft (G) and tighten screw (L) against
flat on shaft.
G
K
L
F
F
J
D
E
F
