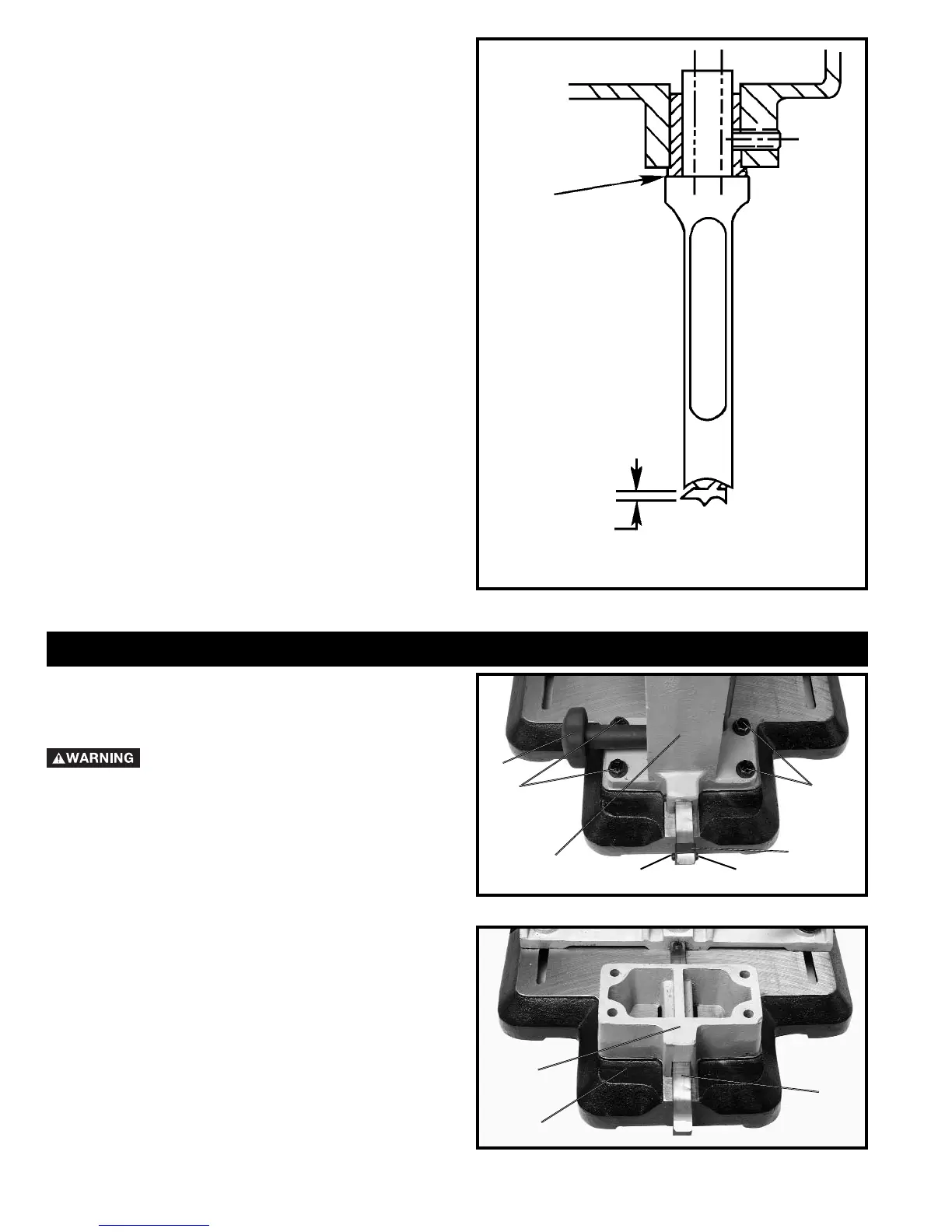

Delta 14-651 User Manual

10
Fig. 15
PUSH
CHISEL UP
AGAINST
BUSHING
1
/
16
" to
3
/
16
"
CLEARANCE TO SUIT
TYPE OF WOOD
ADJUST BIT IN
CHUCK TO GIVE
CLEARANCE
5. The flat portion of the bit should be adjusted to a
minimum of 1/16" below the bottom of the chisel, as
shown in Fig. 15. For certain types of wood it may be
necessary to increase this distance up to a maximum of
3/16" clearance. This method assures having proper
clearance between the cutting edges of the bit and the
points of the chisel.
ASSEMBLING COLUMN EXTENSION
The column can be extended for the purpose of
mortising taller work pieces. To extend the column
proceed as follows.
DISCONNECT MACHINE FROM POWER
SOURCE.
1. Remove the two screws (B) Fig. 16, from the rack
cover bracket and remove the rack cover bracket (D).
2. Remove the four screws and flat washers (A) Fig. 16.
3. Rotate handle (E) until the column assembly (C) Fig.
16, moves off the back of the rack and base.
Fig. 16
Fig. 17
4. Place the column extension (A) Fig. 17, on top of the
rack (B). Align the four holes in the column extension (A)
Fig. 17, with the four holes in the base (C).
B
B
D
A
A
C
A
B
E
C
