9
CUTTINGHEAD RAISING AND
LOWERING HANDWHEEL

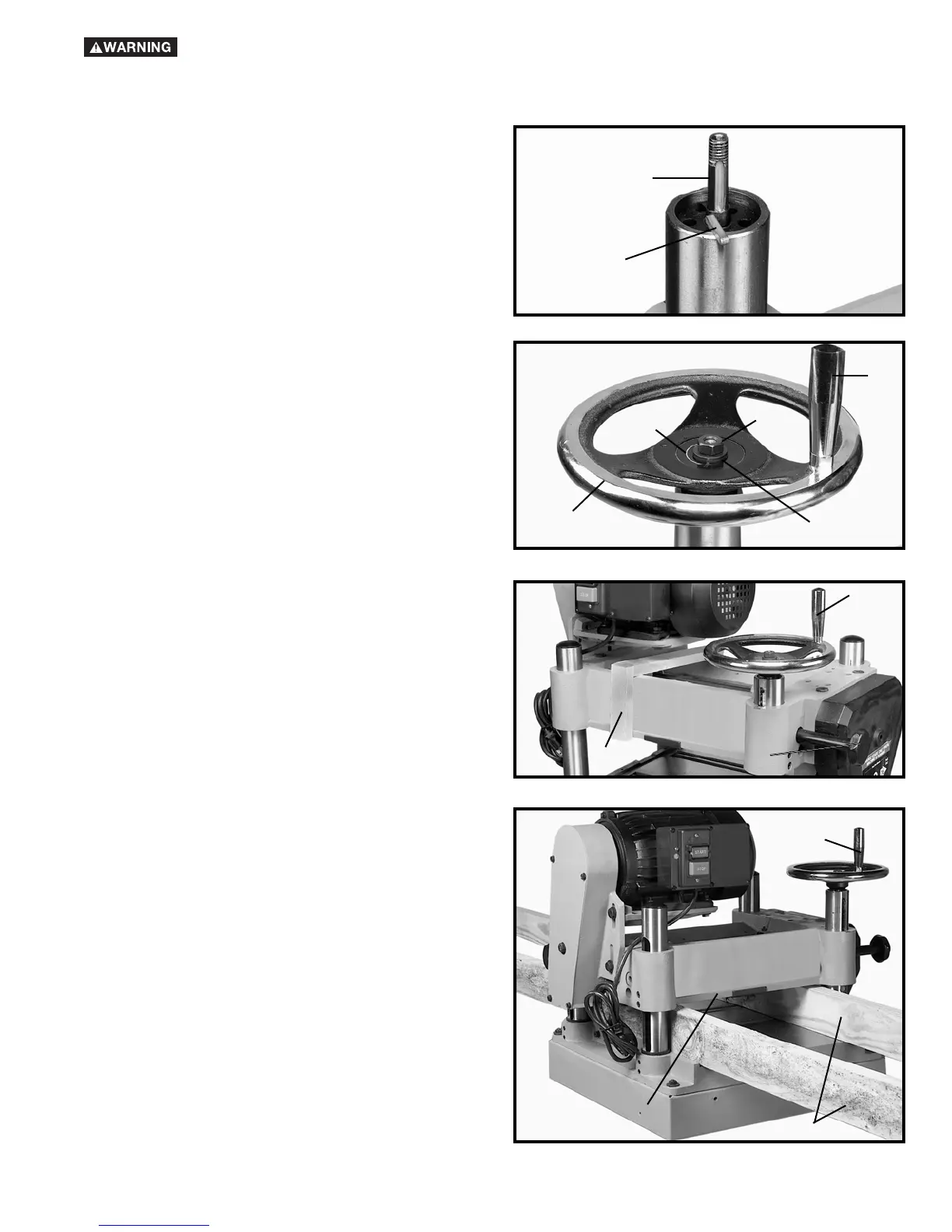

1. Insert key (A) Fig. 7, into keyway (B) of raising and
lowering shaft.
Fig. 7
Fig. 8
2. Assemble handwheel (C) Fig. 8, to raising and lower-
ing shaft as shown. Make sure key, which was
assembled to shaft in STEP 1, is engaged with keyway
in hub of handwheel (C).
3. Assemble decal (D) Fig. 8, to raising and lowering
shaft as shown.
4. Fasten handwheel (C) Fig. 8, to raising and lowering
shaft using an M10 flat washer (E) and an M10 hex nut
(F) supplied.
5. Assemble handle (G) Fig. 8, to handwheel (C) as
shown.
B
A
G
C
D
F
E
LIFTING THE MACHINE
1. IMPORTANT: CARE MUST BE TAKEN WHEN
LIFTING THE MACHINE ONTO A STAND OR
WORKBENCH. THE PLANER IS VERY HEAVY AND A
MINIMUM OF FOUR PEOPLE WILL BE REQUIRED
TO LIFT THE MACHINE AS FOLLOWS:
2. Raise the cuttinghead (A) Fig. 10, by turning the
raising and lowering handwheel (B) clockwise, and insert
two 6 or 8 foot long 2 x 4’s (C) between the cuttinghead
and table as shown. Lower the cuttinghead just until it
touches the 2 x 4 ‘s (C) Fig. 10, so that they are
positioned solidly between the table and cuttinghead.
Then with two people on each end of the 2 x 4’s, move
the machine to its desired location.
Fig. 10
C
A
B
6. Loosen two head locking knobs, one of which is
shown at (G) Fig. 9, and turn handwheel assembly (H)
clockwise to raise head assembly. Remove the protective
shipping block (J).
Fig. 9
J
H
G
FOR YOUR OWN SAFETY, DO NOT CONNECT THE MACHINE TO THE POWER SOURCE UNTIL THE
MACHINE IS COMPLETELY ASSEMBLED AND YOU READ AND UNDERSTAND THE ENTIRE INSTRUCTION
MANUAL.
