Chapter 9 Serial Communication Module AS00SCM
9- 17
9.4.1.1 AS Remote Communication Mode

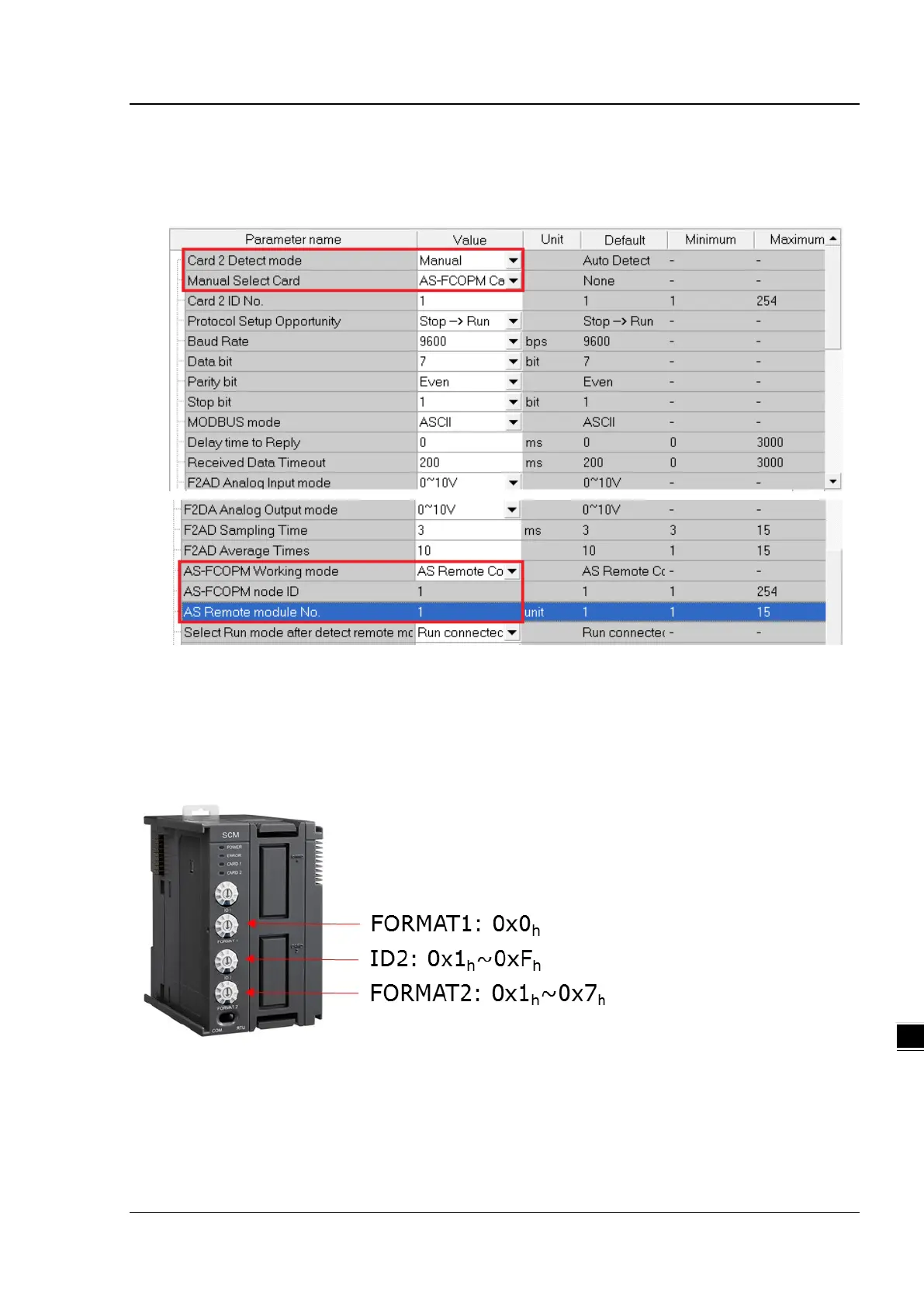

Double-click the AS Series PLC, then in Device Setting click Function Card 2 Setting and set the function card
2 to AS-FCOPM, set to working mode to AS Remote Communication Mode, enter the number of the AS remote
module and set up the baud rate. After the setting is done, download the parameters.
Turn the FORMAT1 knob to 0 and it is in AS Remote Communication Mode. In AS Remote Communication mode, an
AS series CPU PLC can connect to as many as 15 AS00SCM-A modules, as long as they are all in RTU mode. The
RTU station number should be set from 1 to 15 in numerical order. RTU mode and baud rate cannot be set via
ISPSoft (HWCONFIG). Use the knob ID2 to set up Node ID and use the knob FORMAT2 to set up the baud rate.
(The baud rate should be the same as the PLC’s baud rate.)
