3. The table can be tilted right or left by removing the

table alignment pin (C) Fig. 25.

NOTE: If the pin (C) is difficult to remove, turn the nut (E)

clockwise to pull the pin out of the casting.

4. Loosen the table locking bolt (D) Fig. 26, tilt the table

to the desired angle, and tighten the bolt (D). When

you return the table to the level position, replace

the table alignment pin (C) Fig. 25 to position the

table surface 90 degrees to the spindle.

5. A tilt scale (E) Fig. 27 is provided on the table

bracket casting to indicate the degree of tilt. A

witness line and zero mark (F) are also provided on

the table to align with the scale (E).

TABLE ADJUSTMENTS

1. Raise or lower the table on the column by loosening

the table clamp (A) Fig. 23, and turning the table

raising and lowering handle (B) Fig. 24. After the

table is at the desired height, tighten the clamp (A)

Fig. 23.

NOTE: Always raise (rather than lower) the table to the

final position to allow the gears to mesh and prevent

slippage.

2. The table can be rotated 360 degrees on the column

by loosening the clamp (A) Fig. 23, rotating the table to

the desired position, and tightening the clamp (A).

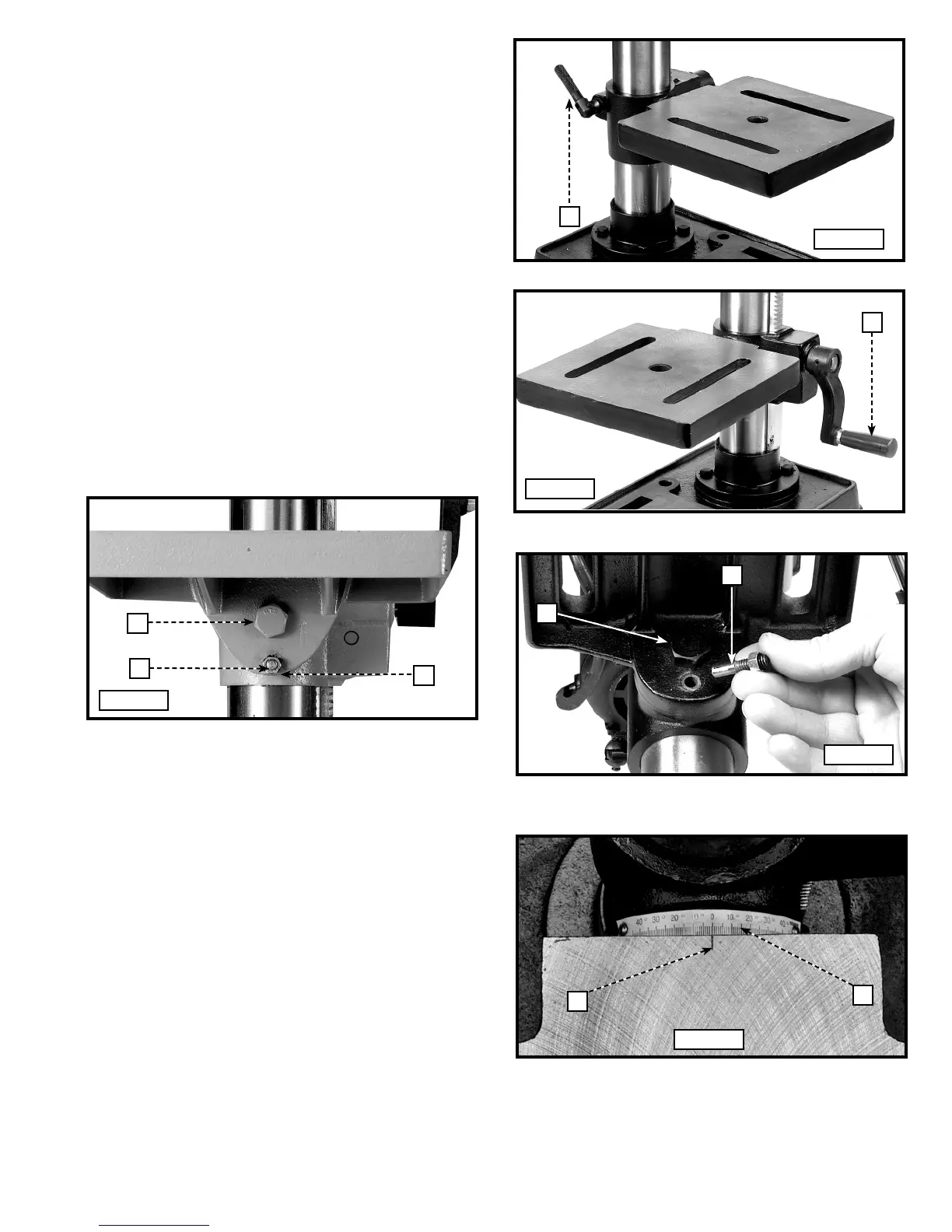

Fig. 23

Fig. 24

Fig. 25

Fig. 26

Fig. 27
