- 1 -
………………………………………………………………… ENGLISH …………………………………………………………………
Thank you for choosing Delta’s DVP series PLC. Delta releases DVP02LC-SL load cell
module of weight measurement function. DVP02LC-SL provides 24-bit resolution
applicable for 4-wire or 6-wire load cells with various eigenvalues. Therefore, the
response time can be adjusted in coordination with each other according to users’ needs.
On this basis, the market requirements on weight measurement can easily be met.
a This instruction sheet provides introductory information on electrical specifications,
general specifications, installation and wiring.
a This is an OPEN TYPE I/O module and therefore should be installed in an enclosure
free of airborne dust, humidity, electric shock and vibration. The enclosure should
prevent non-maintenance staff from operating the device (e.g. key or specific tools
are required to open the enclosure) in case danger and damage on the device may
occur.
a DO NOT connect the input AC power supply to any of the I/O terminals; otherwise
serious damage may occur. Check all the wiring again before switching on the power.
Make sure the ground terminal is correctly grounded in order to prevent
electromagnetic interference.
a The tightening torque for I/O terminal block is 1.95 kg-cm (1.7 in-lbs). Use 60/75°C
copper conductors only.

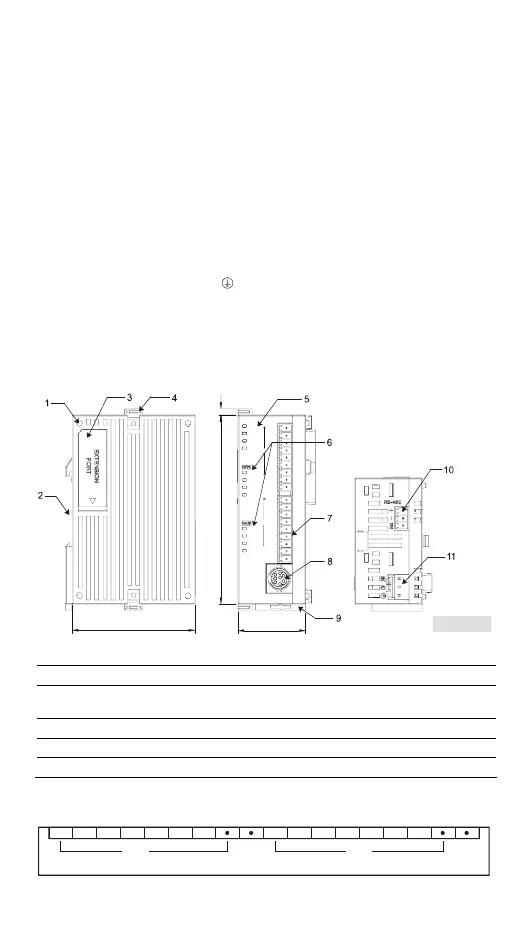

Product Profile & Dimensions
3 mm
90 mm
33 mm
60 mm
CH2
CH1
DVP02LC
MAX
MOTION
MAX
NET
ZER O
MOTION
ERROR
ZER O
NET
L.V
POWER
RUN
SHD
SEN+
EXC+
SIG+
SEN-
SIG-
EXC-
SEN+
SEN-
SHD
SIG-
SIG+
EXC+
EXC-
[ Figure 1 ]
1. Mounting hole of the I/O module 2. DIN rail mounting slot (35mm)
3. I/O module connection port 4. I/O module clip
5.
Status indicator
(POWER, RUN, ERROR and L.V)
6.
Function status indicator
(NET, ZERO, MAX, MOTION)
7. I/O terminals 8. RS-232 port
9. Mounting slot clip 10. RS-485 port
11. DC power input
I/O Terminal Layout
DVP02LC-SL
SEN-SEN+SIG-SIG+EXC-EXC+ SIG+EXC-EXC+SHD SHDSEN-SEN+SIG-
CH1 CH2
